AFAM chain kit for AJP PR3 Enduro Pro 200 08-11 428 R1G chain kit

AFAM chain kit for AJP PR3 Enduro Pro 200 08-11 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the AJP PR3 Enduro Pro 200 2008-2011 chain kit

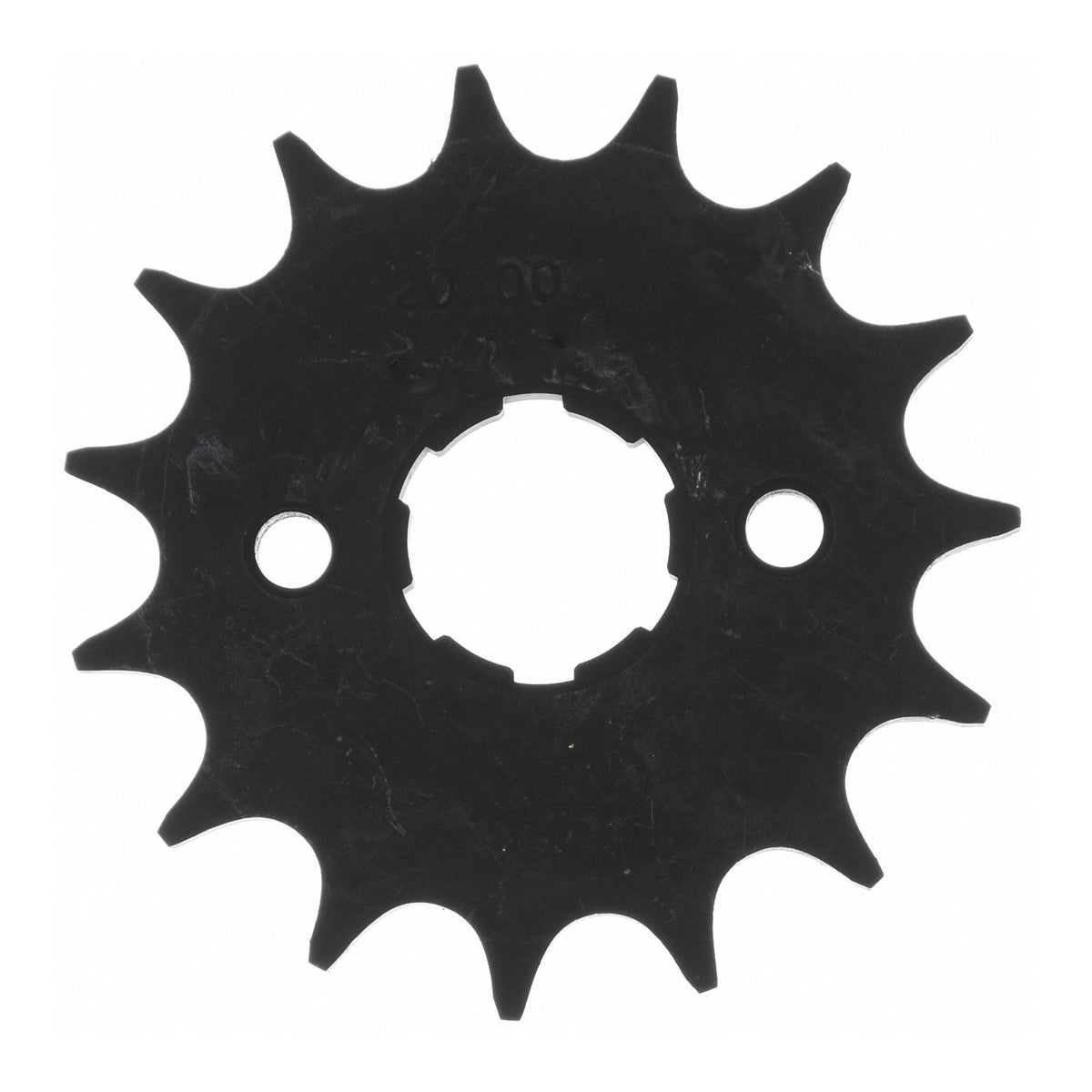

• Front sprocket: AFAM front sprocket #428 15 teeth - a20200.15
• Chain: AFAM chain 428 R1-G reinforced 124 with clip-type connecting link - a428r1.g.124

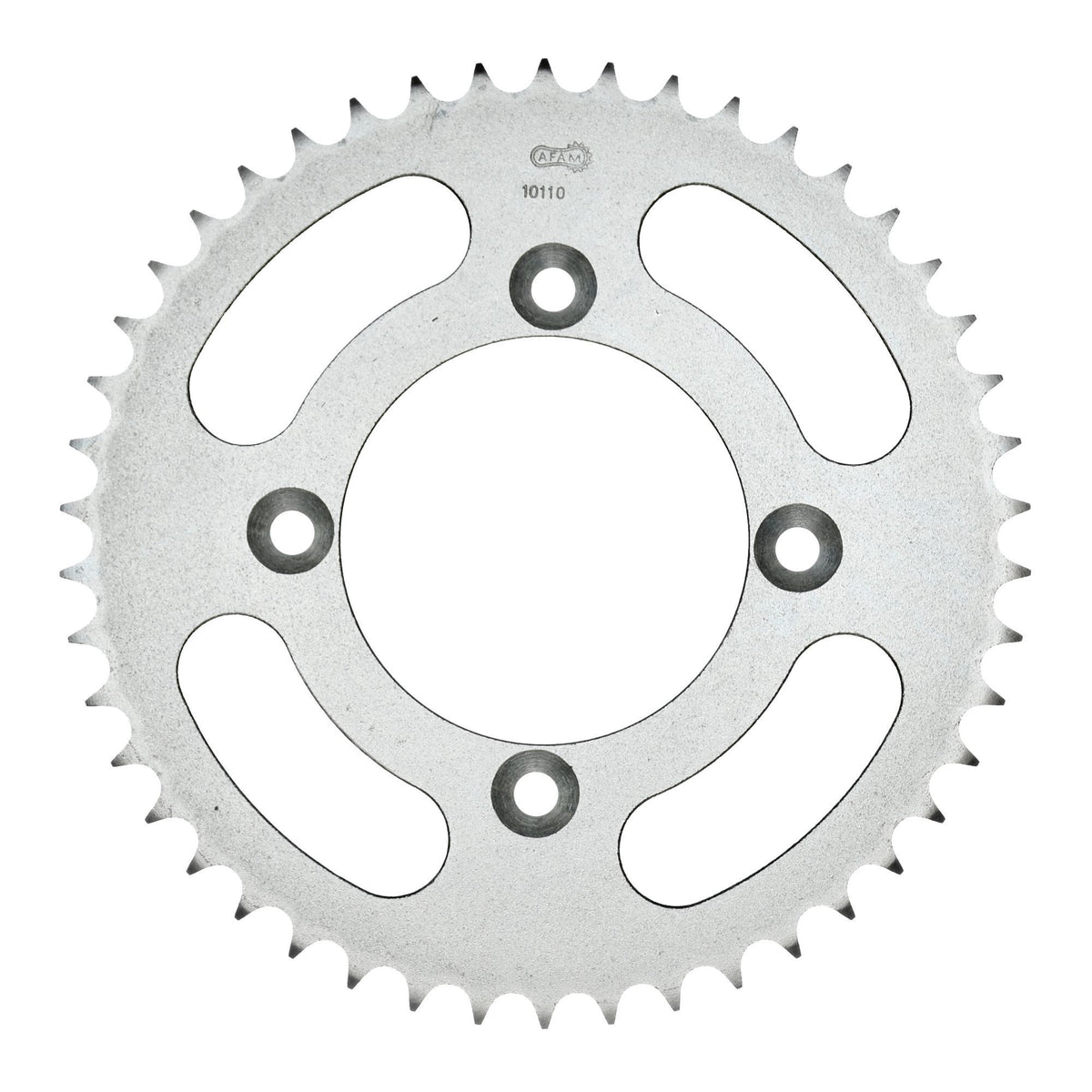

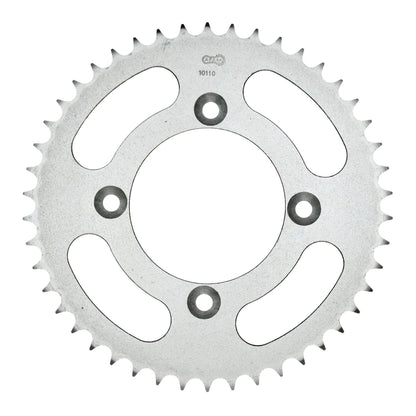

• Rear sprocket: AFAM STEEL rear sprocket #428 46 teeth - a10110.46
• Gear ratio front sprocket-chain-rear sprocket: 15-124-46

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical specifications:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-13156

Suitable for

AJP 126 - 250 cc PR3 Enduro Pro 200 2008
AJP 126 - 250 cc PR3 Enduro Pro 200 2009
AJP 126 - 250 cc PR3 Enduro Pro 200 2010
AJP 126 - 250 cc PR3 Enduro Pro 200 2011
