AFAM chain kit for Aprilia RS 125 ABS 2025 428 MXG chain kit

AFAM chain kit for Aprilia RS 125 ABS 2025 428 MXG chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - Manufacturer names are used for compatibility purposes only!

Components of the Aprilia RS 125 ABS XTA 2025-2025 chain kit

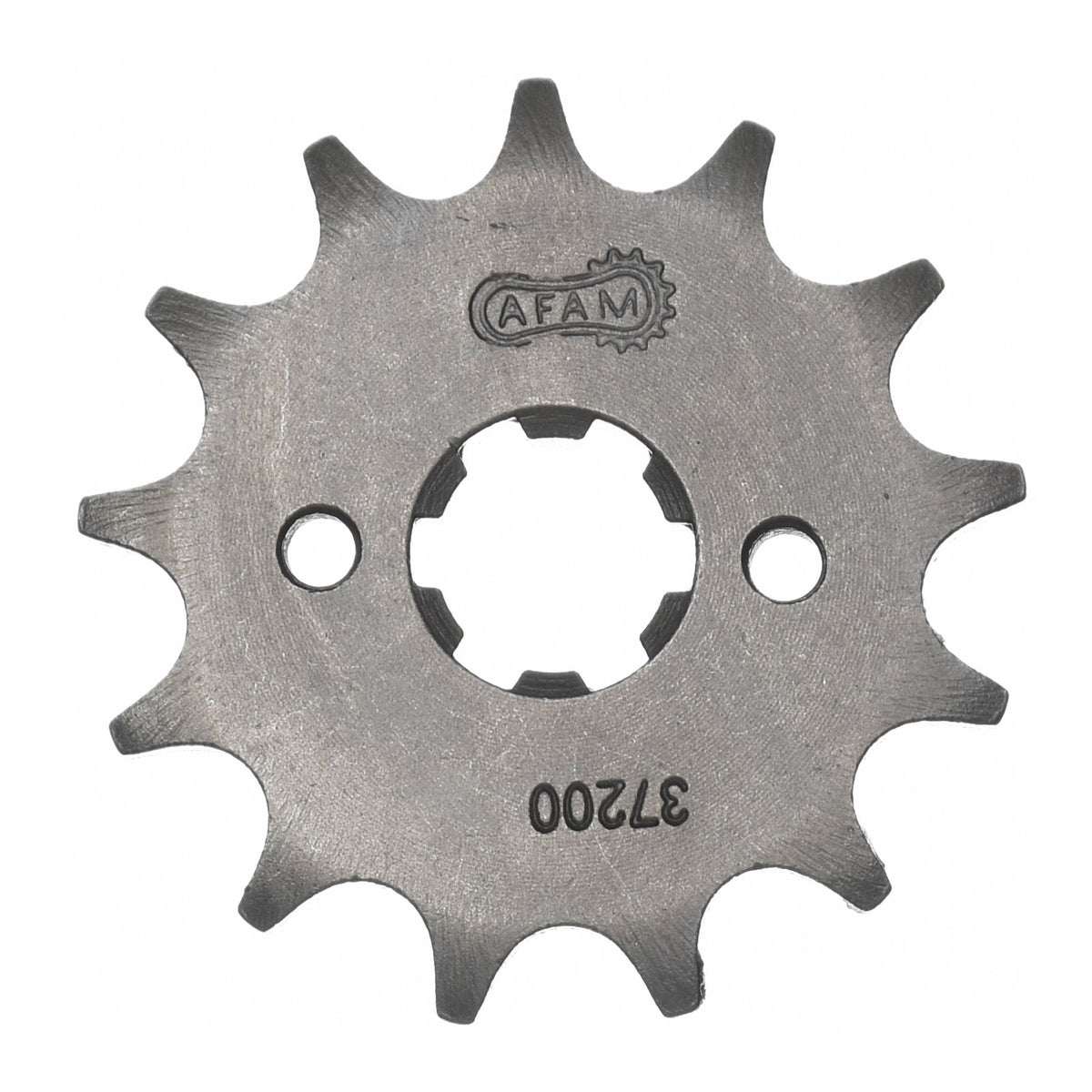

• Sprocket: AFAM sprocket #428 13 teeth - a37200.13

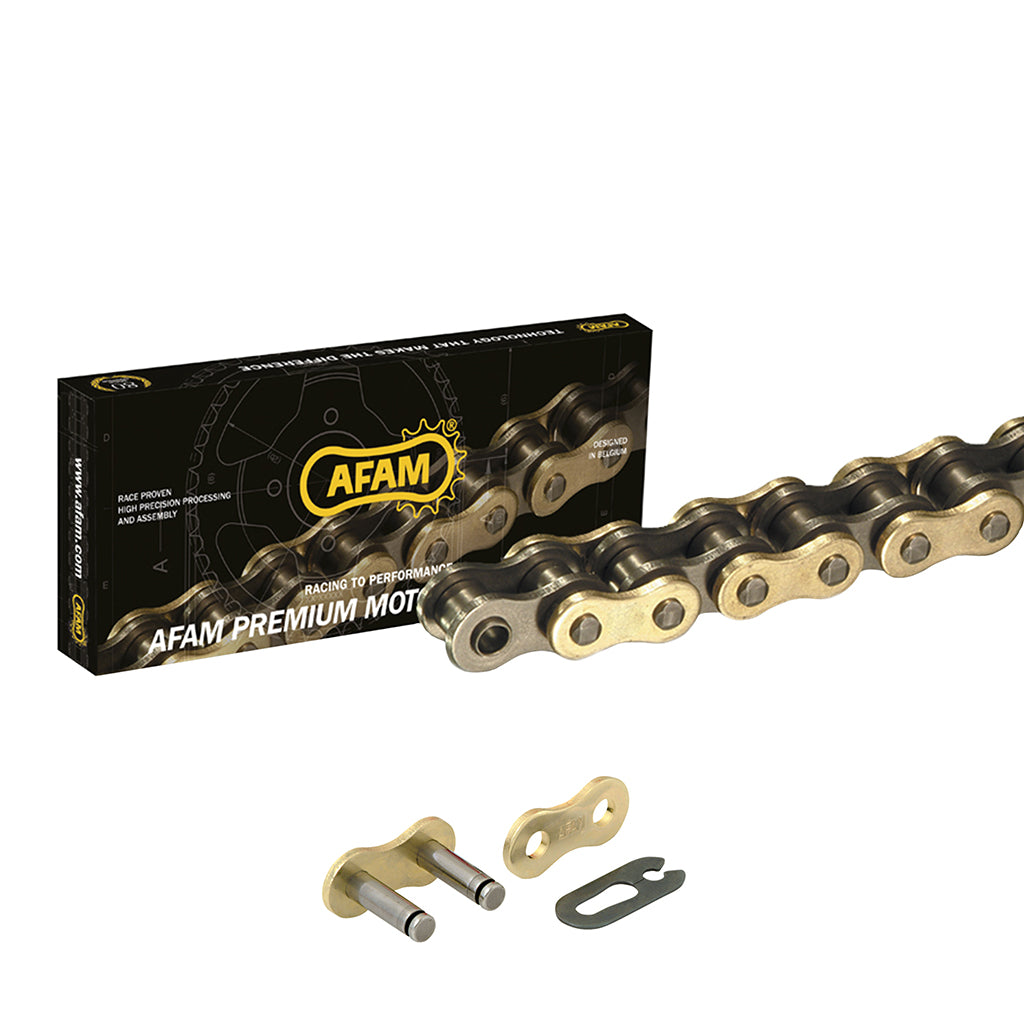

• Chain: AFAM chain 428 MX-G MX Racing 136 with clip link - a428mx.g.136

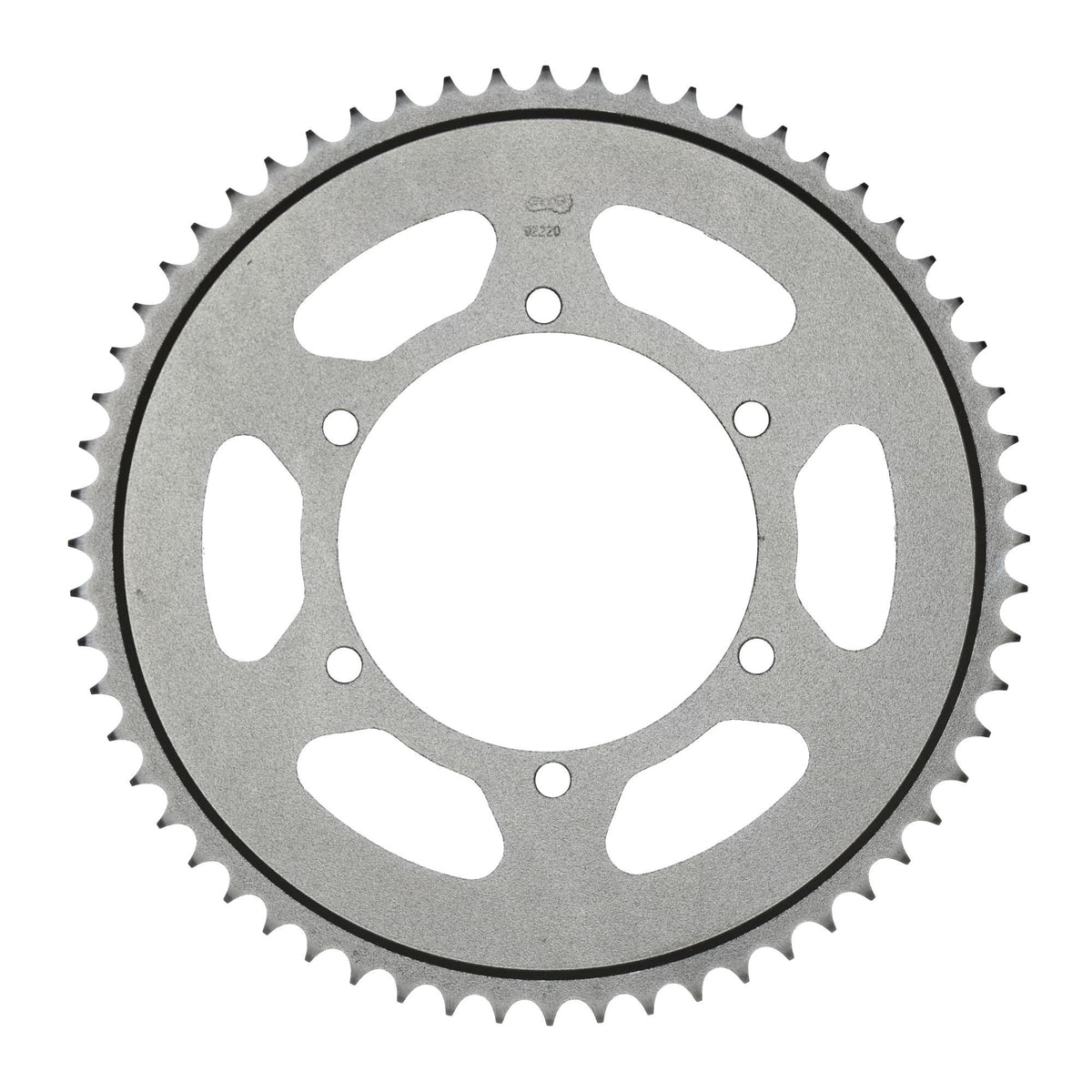

• Rear sprocket: AFAM STEEL rear sprocket #428 58 teeth - a92220.58
• Sprocket-chain-rear sprocket gear ratio: 13-136-58

AFAM 428 MX-G

MX-Racing chain, which can also be used for road applications
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical specifications:
Pitch: 428
Pin length: 19.0 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 24.00 kN
Weight per 100 links: 1.02 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-78337

Suitable for

Aprilia 101 - 125 ccm RS 125 ABS XTA 2025
