AFAM Chain Kit for Aprilia RS 125 ABS 2025 428 XMR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

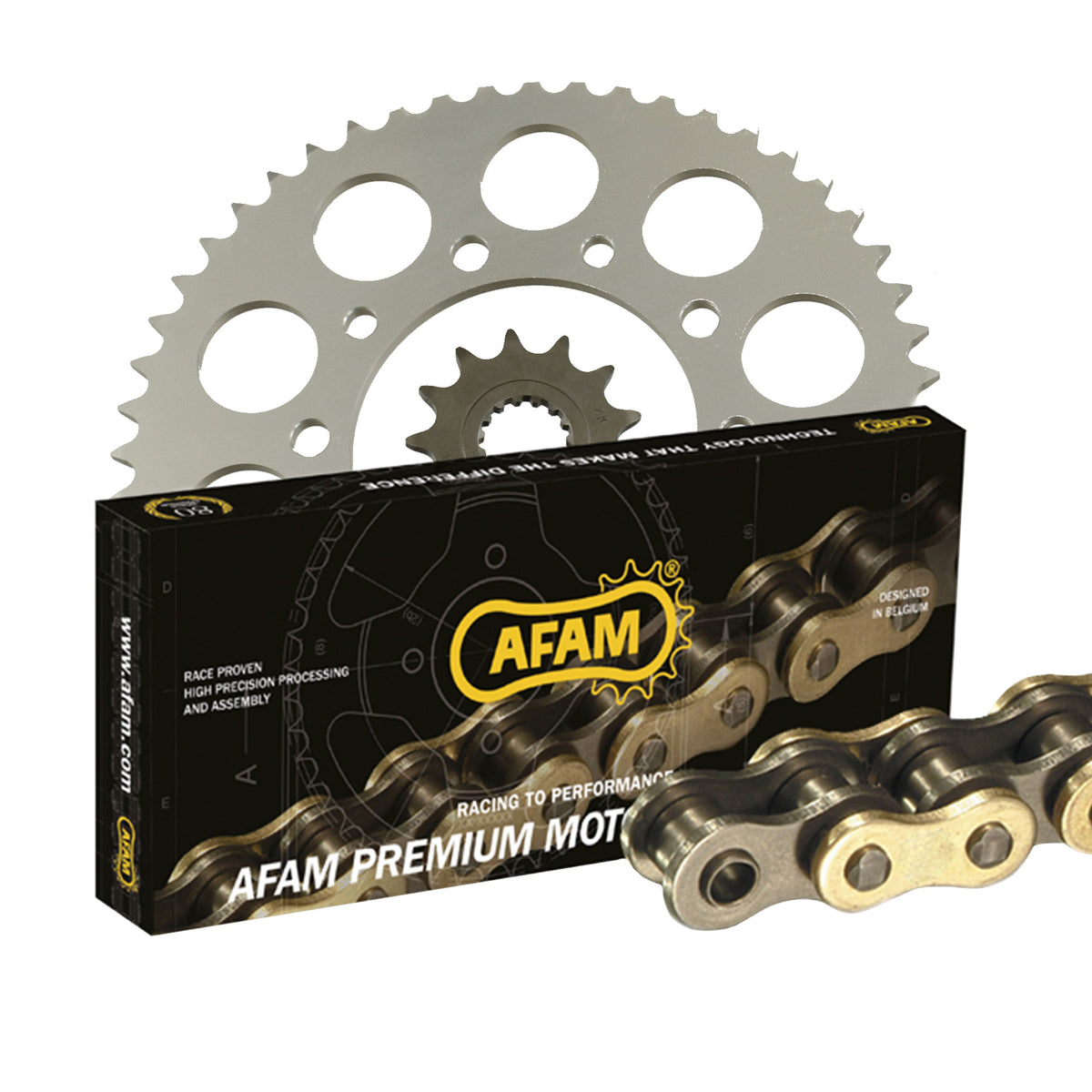

Components of the chain kit Aprilia RS 125 ABS XTA 2025-2025

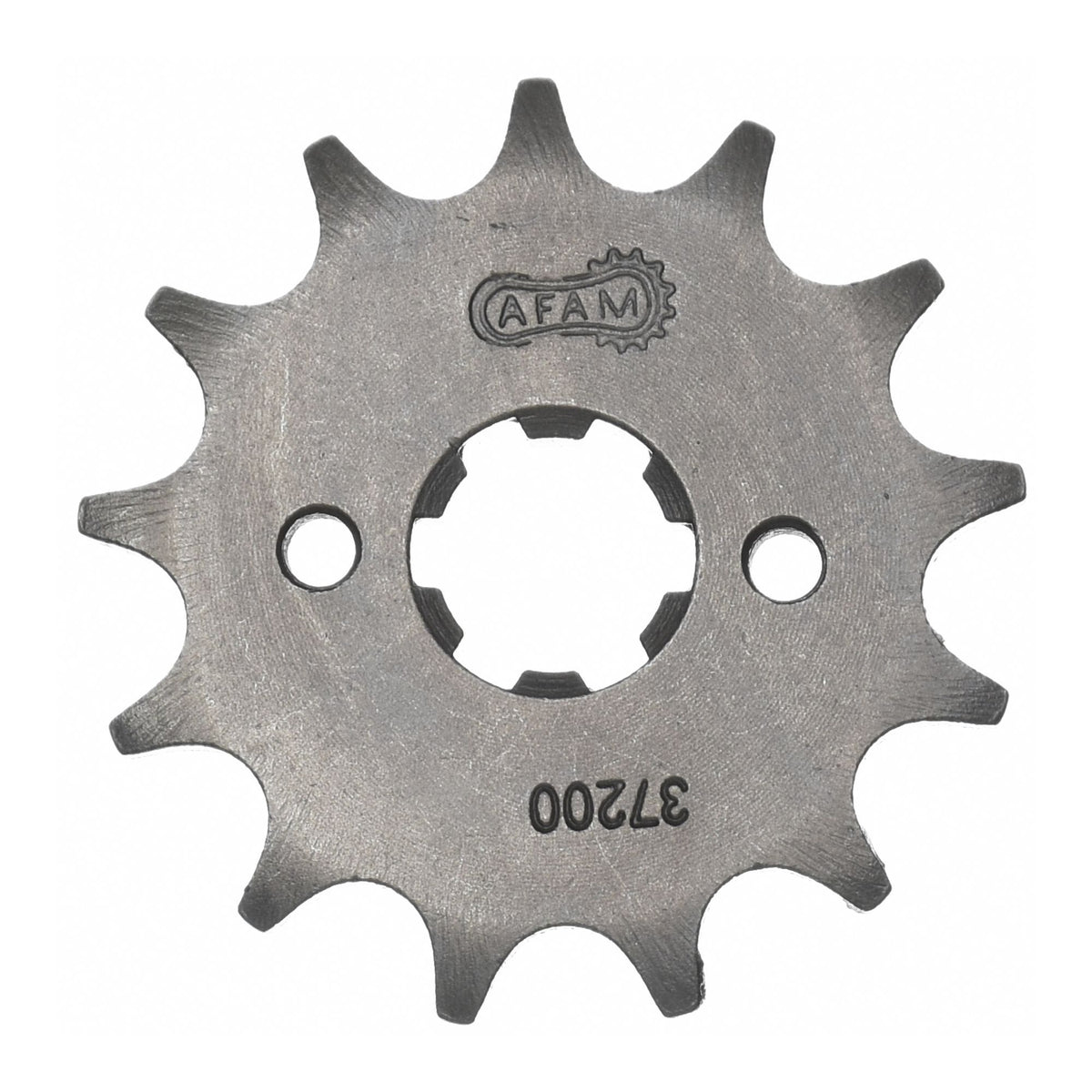

• Sprocket: AFAM sprocket #428 13 teeth - a37200.13

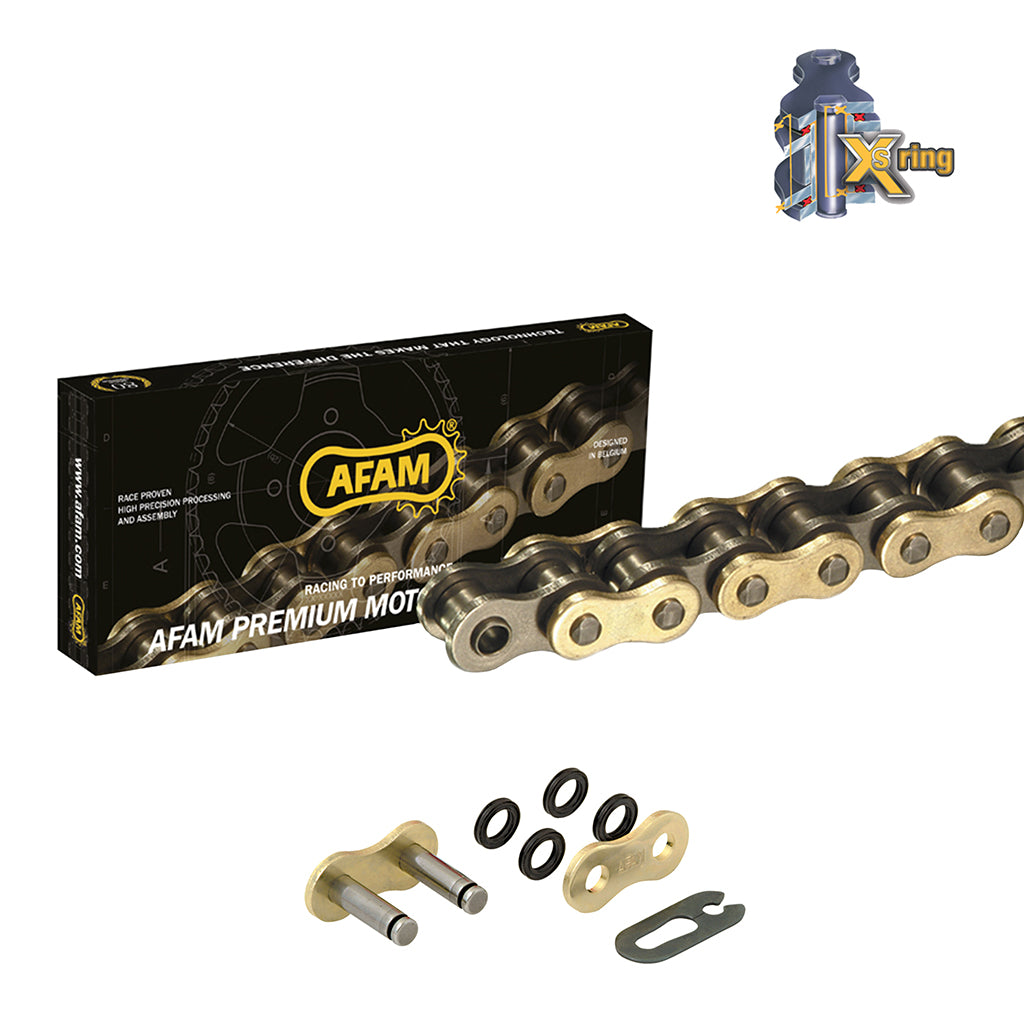

• Chain: AFAM chain 428 XMR2-G Xs-ring 136 with clip link - a428xmr2.g.136

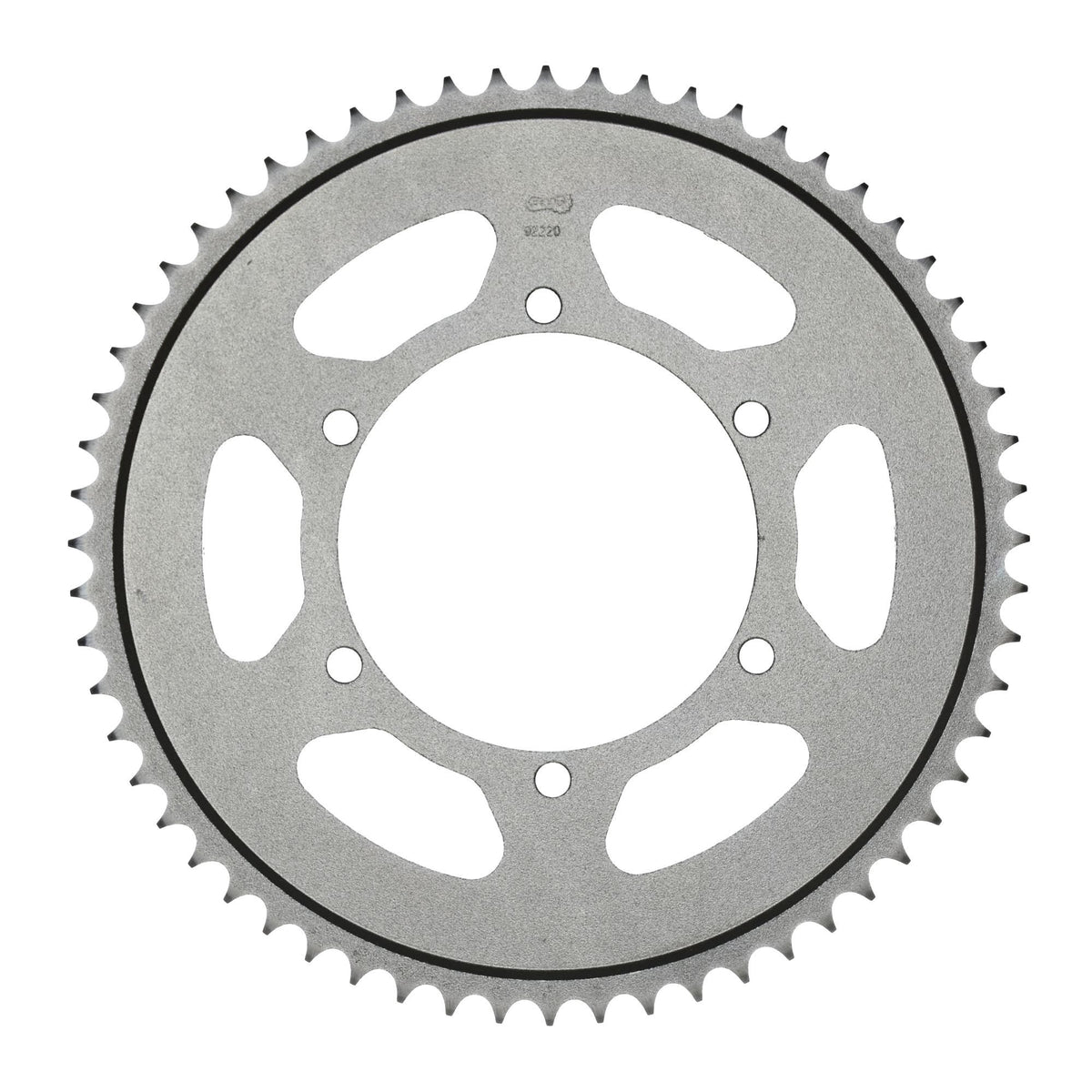

• Rear sprocket: AFAM STEEL rear sprocket #428 58 teeth - a92220.58
• Gear ratio sprocket-chain-rear sprocket: 13-136-58

AFAM 428 XMR2-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78353

Suitable for

Aprilia 101 - 125 cc RS 125 ABS XTA 2025
