AFAM chain kit for Aprilia RS 457 24-25 520 XSRG chain kit

AFAM chain kit for Aprilia RS 457 24-25 520 XSRG chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Aprilia RS 457 XEA00 2024-2025

• Front sprocket: AFAM front sprocket #520 15 teeth - a37500.15
• Chain: AFAM chain 520 XSR-G XS-ring 106 w. rivet link - a520xsr.g.106

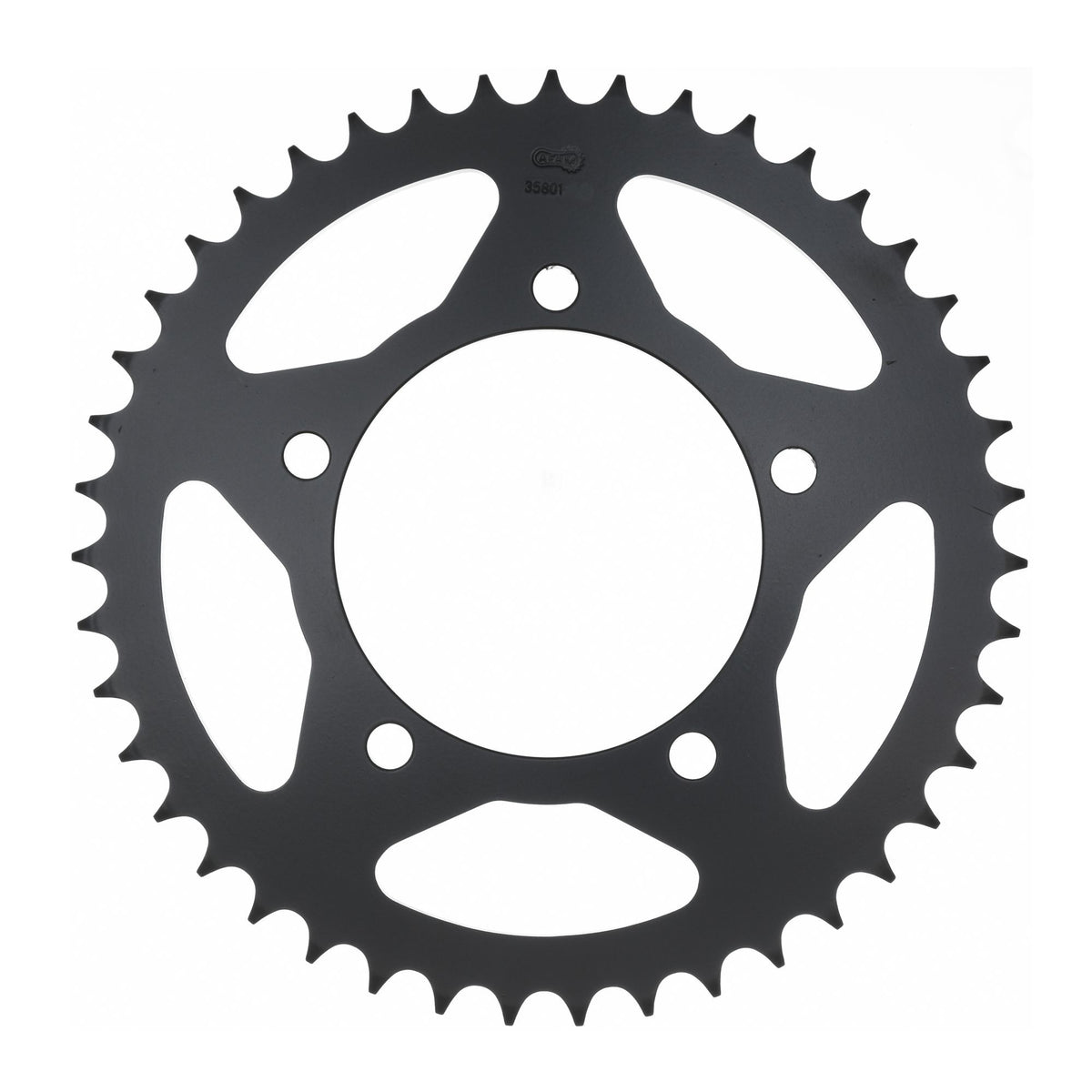

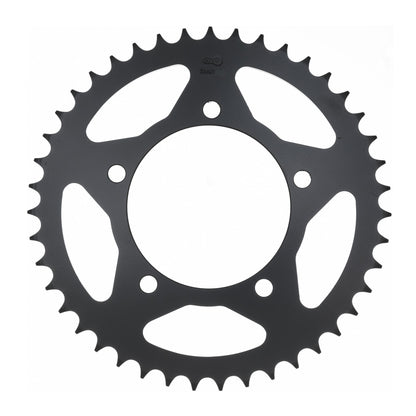

• Rear sprocket: AFAM rear sprocket steel #520 43 teeth - a35801.43
• Gear ratio front sprocket-chain-rear sprocket: 15-106-43

AFAM 520 XSR-G

Super reinforced chain with smooth running properties
XS-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The goods offered are an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78610

Suitable for

Aprilia 251 - 500 cc RS 457 XEA00 2024
Aprilia 251 - 500 cc RS 457 XEA00 2025
