AFAM chain kit for Aprilia RS 660 ABS 2025 520 XMR3 chain kit

AFAM chain kit for Aprilia RS 660 ABS 2025 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Aprilia RS 660 ABS XGA 2025-2025 chain kit

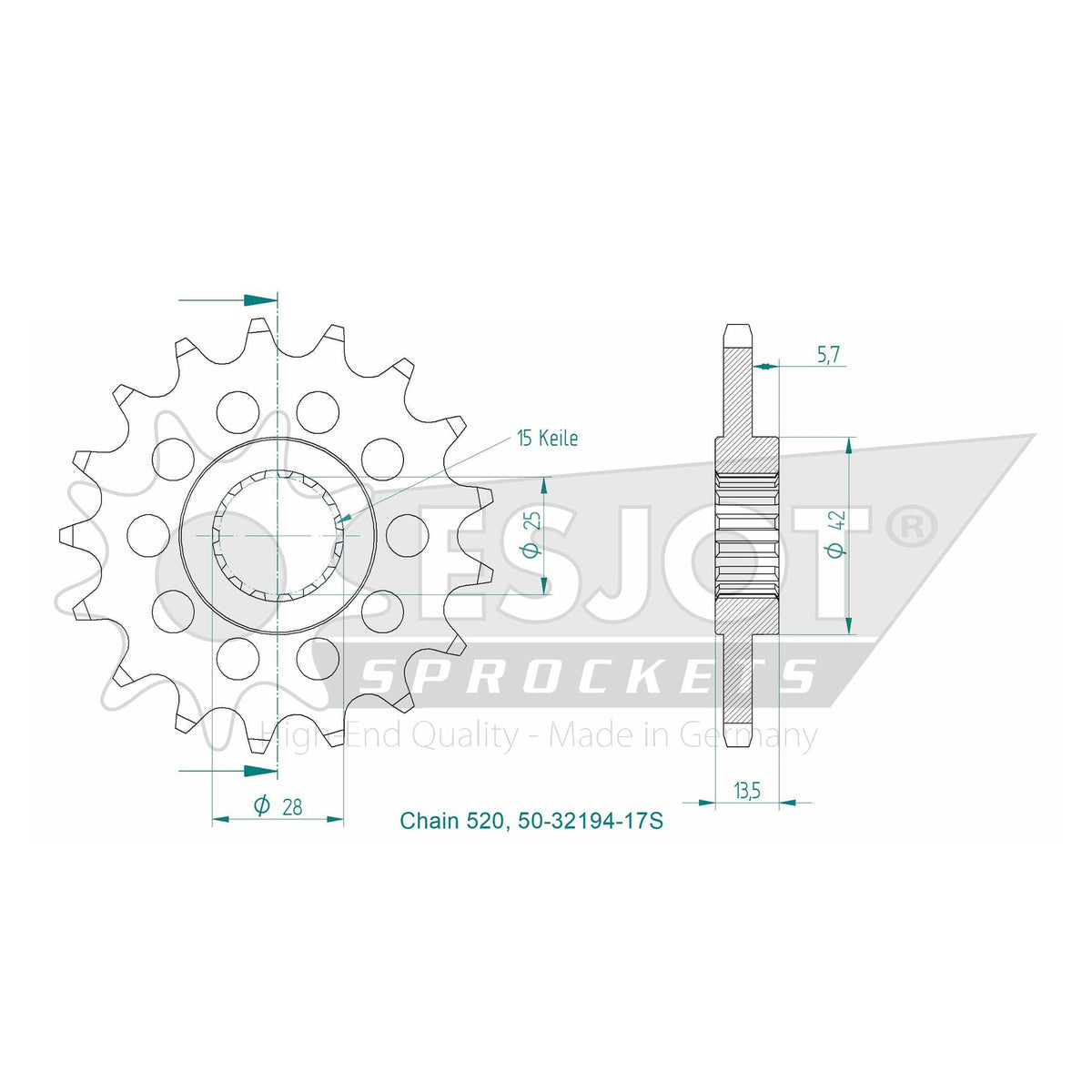

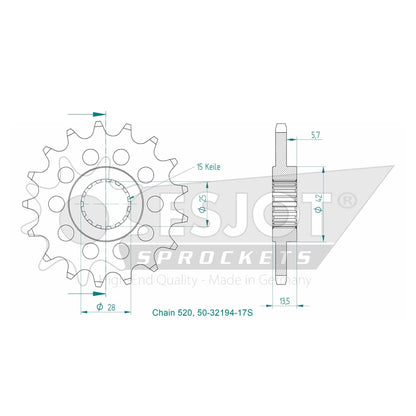

• Front sprocket: AFAM front sprocket 50-32194-17S #520 17 teeth - e5032194.17

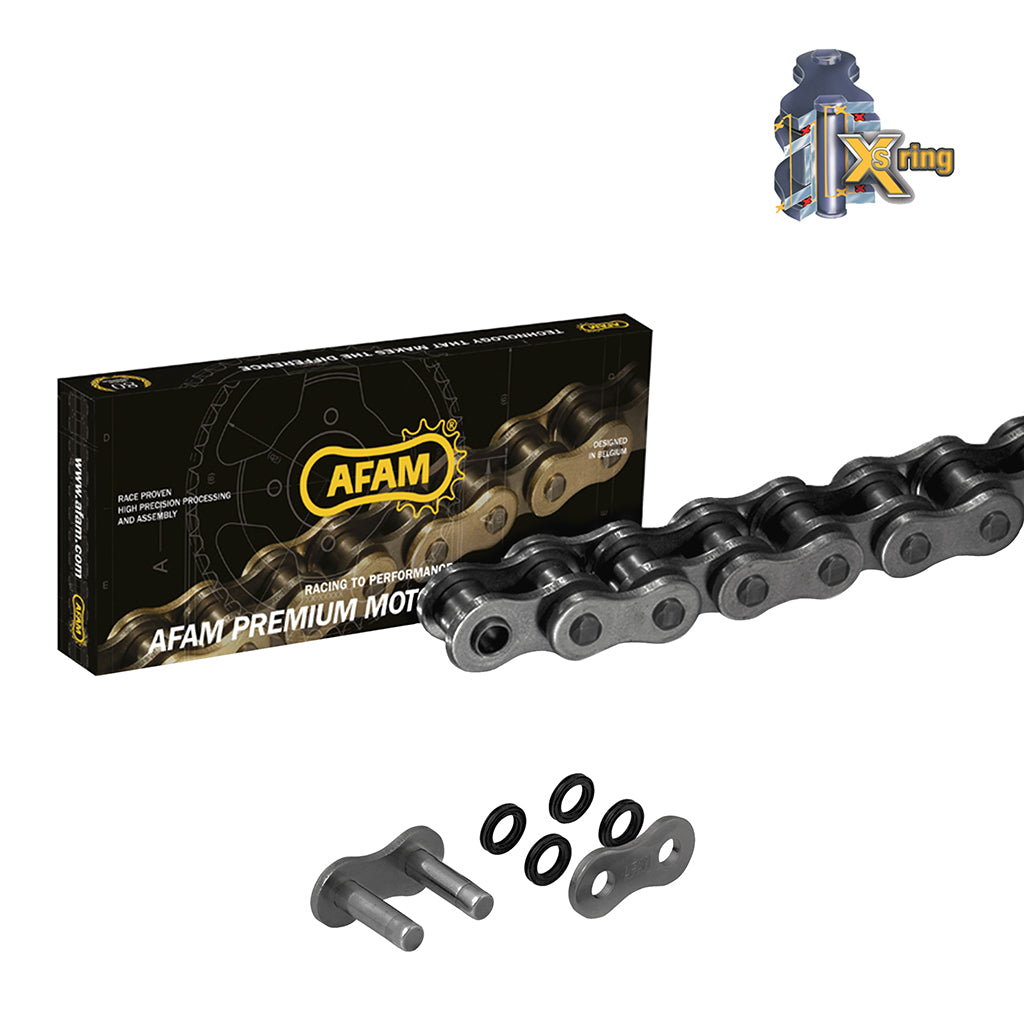

• Chain: AFAM chain 520 XMR3 Xs-ring 110 with rivet link - a520xmr3.110

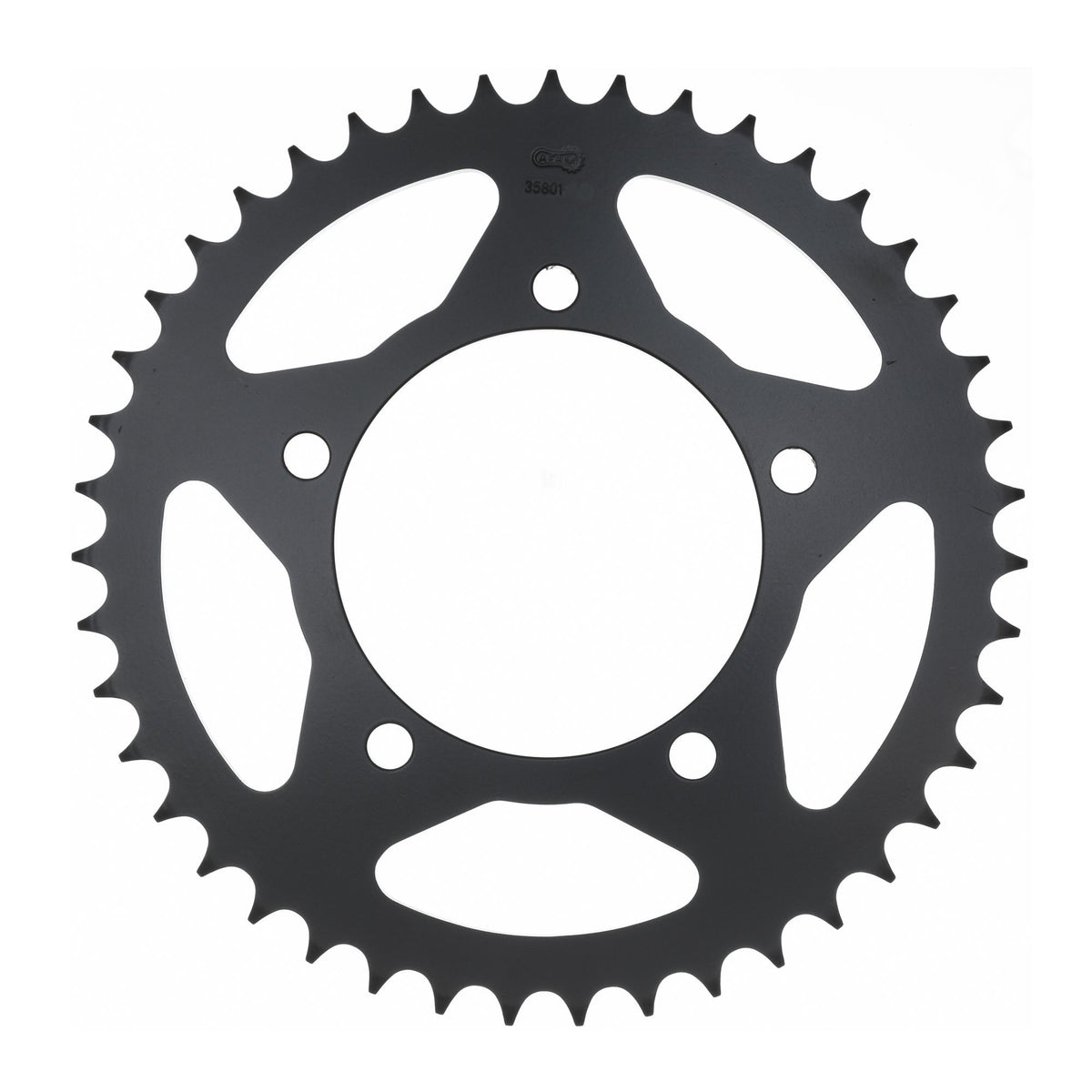

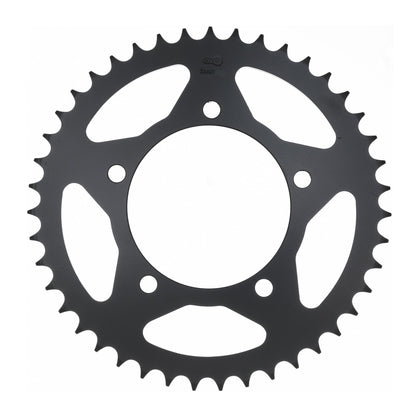

• Rear sprocket: AFAM steel rear sprocket #520 43 teeth - a35801.43
• Gear ratio front sprocket-chain-rear sprocket: 17-110-43

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78459

Suitable for

Aprilia 501 - 750 cc RS 660 ABS XGA 2025
