AFAM chain kit for Aprilia RS 660 ABS 23-24 520 XHR2G chain kit

AFAM Chain Kit for Aprilia RS 660 ABS 23-24 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the Aprilia RS 660 ABS KVH/KSG 2023-2024 chain kit

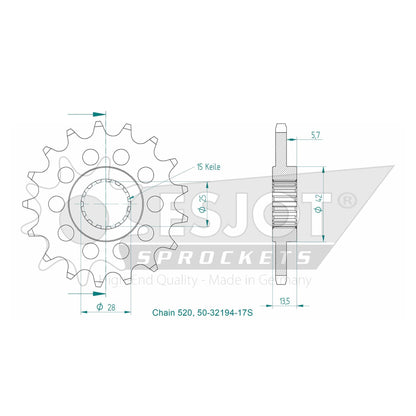

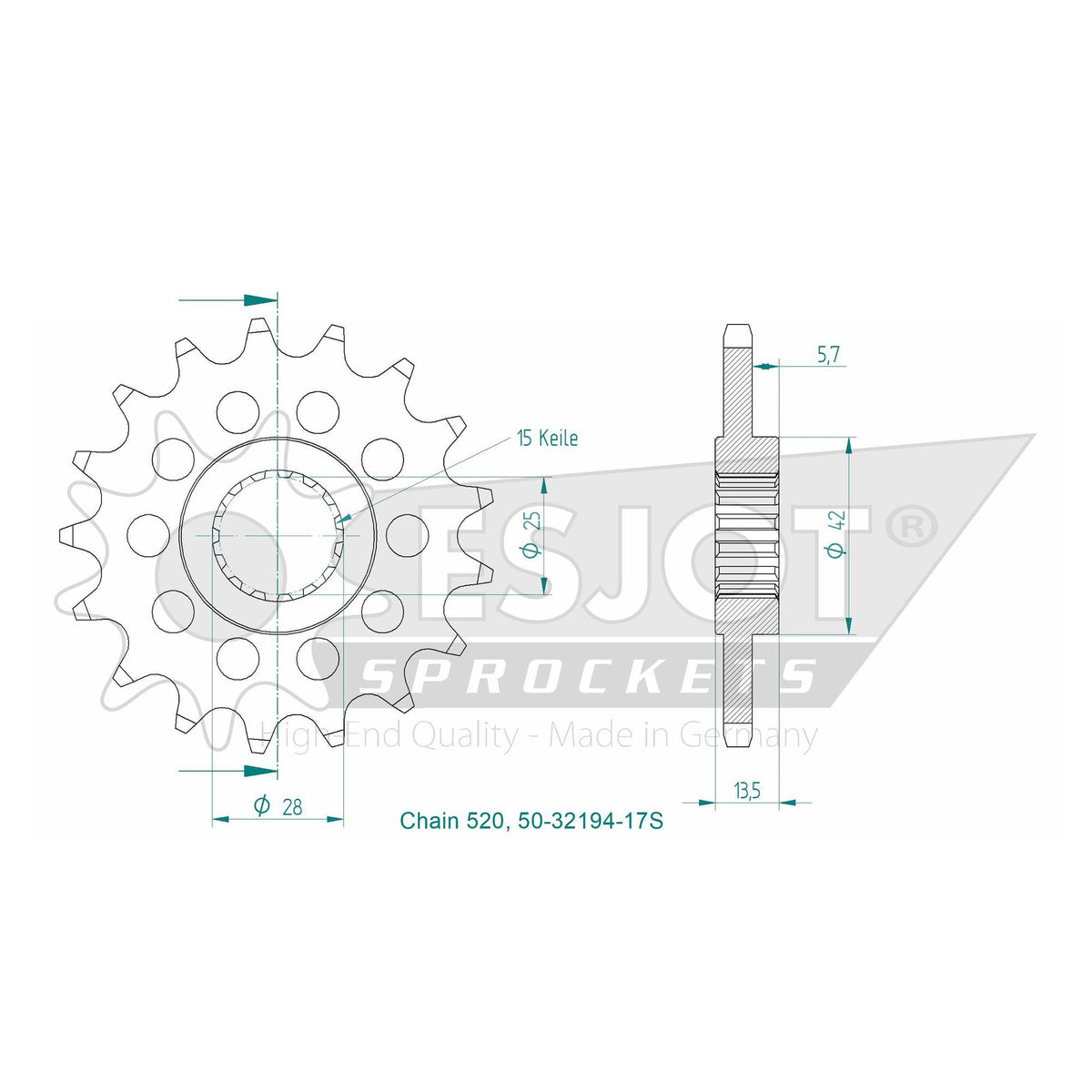

• Front sprocket: AFAM sprocket 50-32194-17S #520 17 teeth - e5032194.17
• Chain: AFAM chain 520 XHR2-G Xs-Ring 110 w. rivet link - a520xhr2.g.110

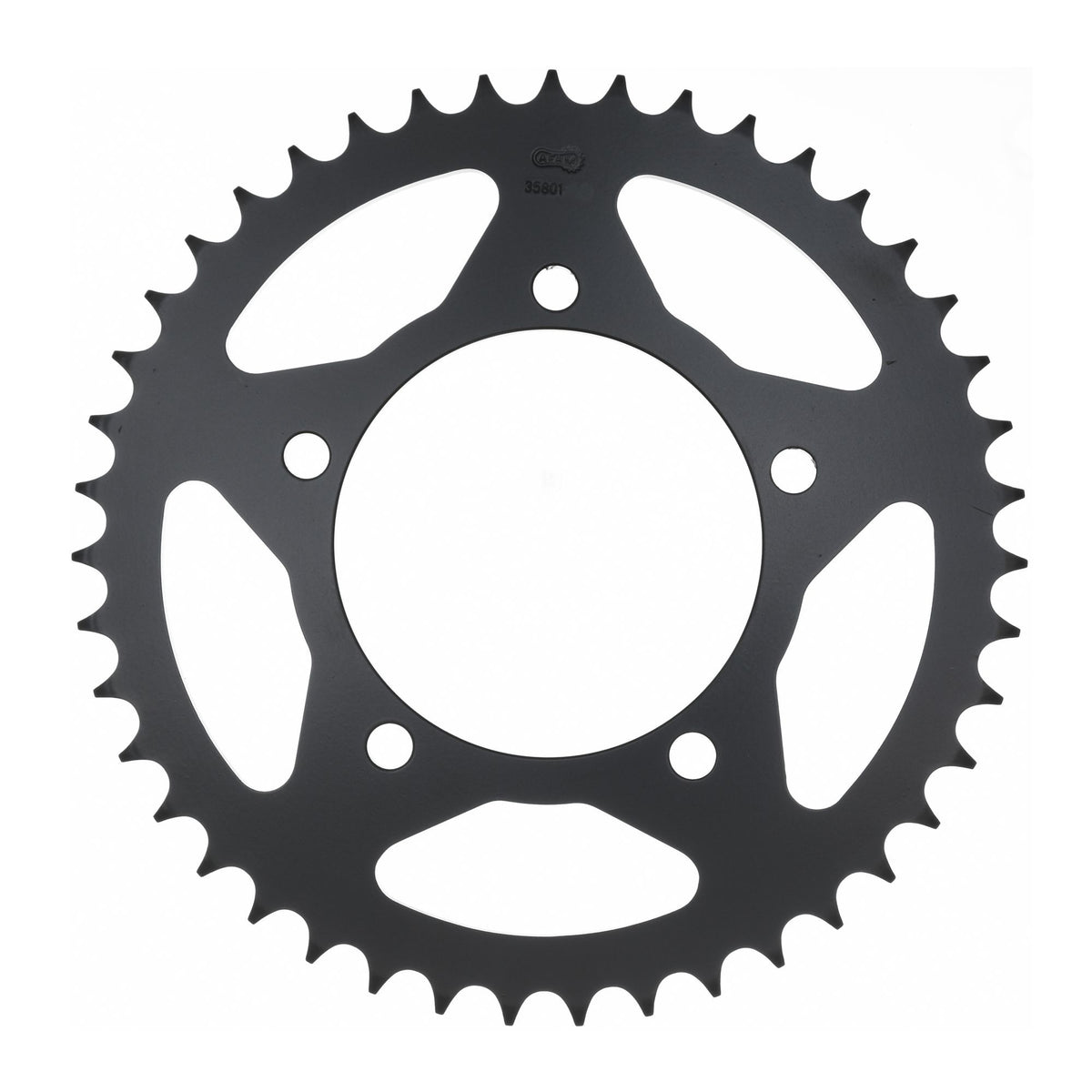

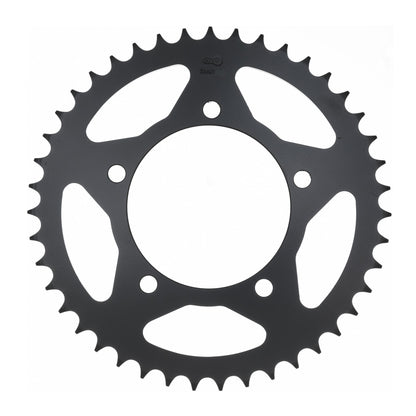

• Rear sprocket: AFAM steel rear sprocket #520 43 teeth - a35801.43
• Gear ratio sprocket-chain-rear sprocket: 17-110-43

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-78451

Suitable for

Aprilia 501 - 750 cc RS 660 ABS KVH/KSG 2023
Aprilia 501 - 750 cc RS 660 ABS KVH/KSG 2024
