AFAM chain kit for Aprilia RS 660 ABS 23-24 520 XMR3 chain kit

AFAM chain kit for Aprilia RS 660 ABS 23-24 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Aprilia RS 660 ABS KVH/KSG 2023-2024

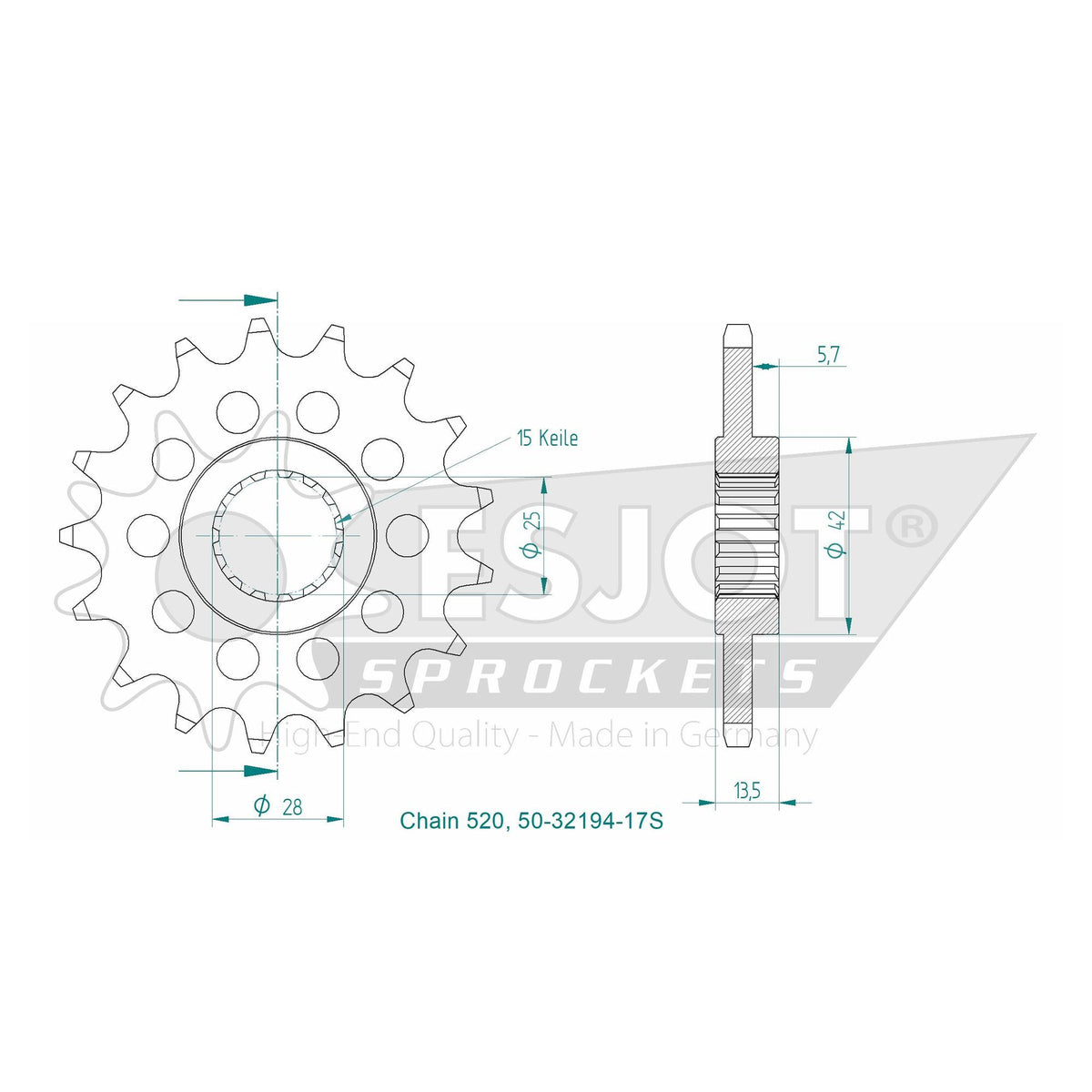

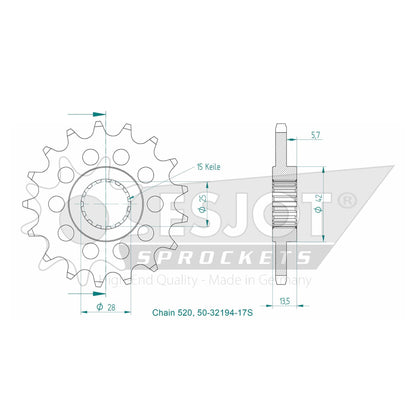

• Front sprocket: AFAM front sprocket 50-32194-17S #520 17 teeth - e5032194.17

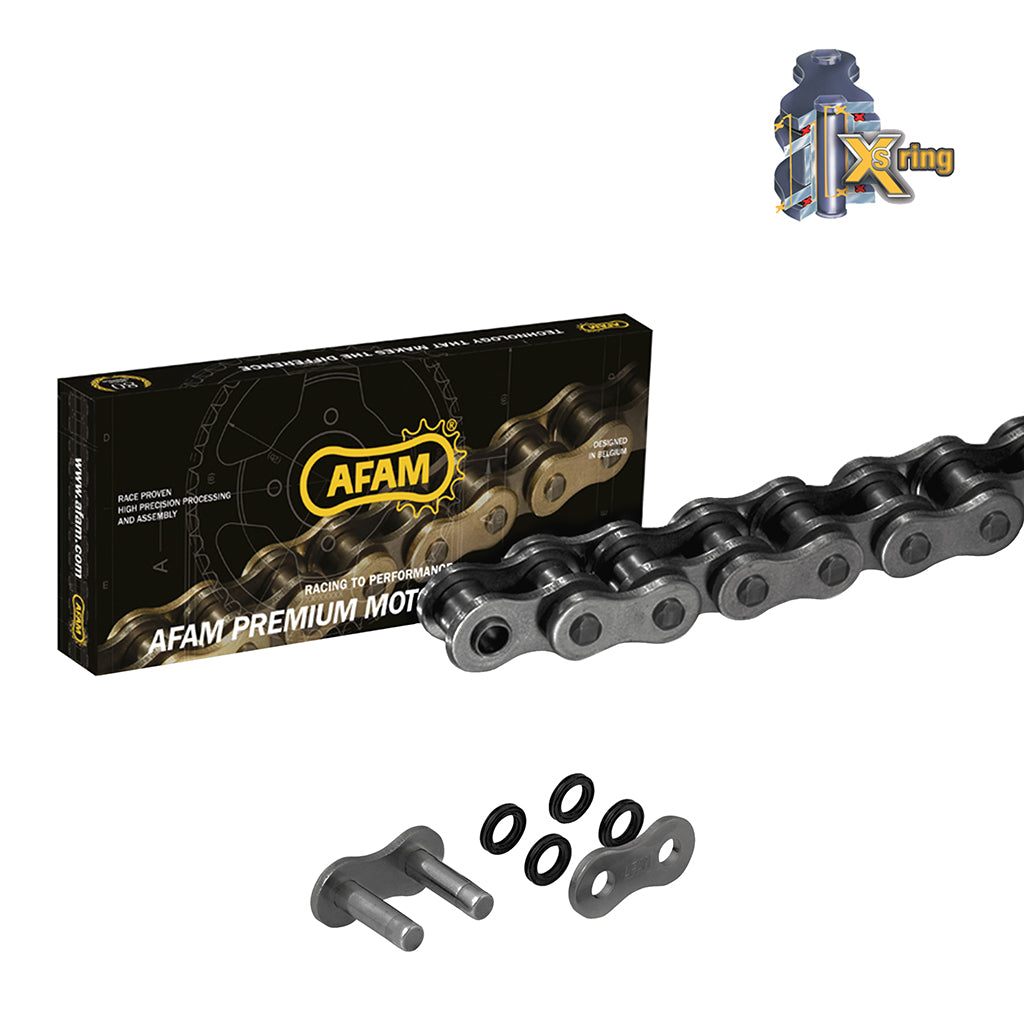

• Chain: AFAM chain 520 XMR3 Xs-ring 110 with rivet link - a520xmr3.110

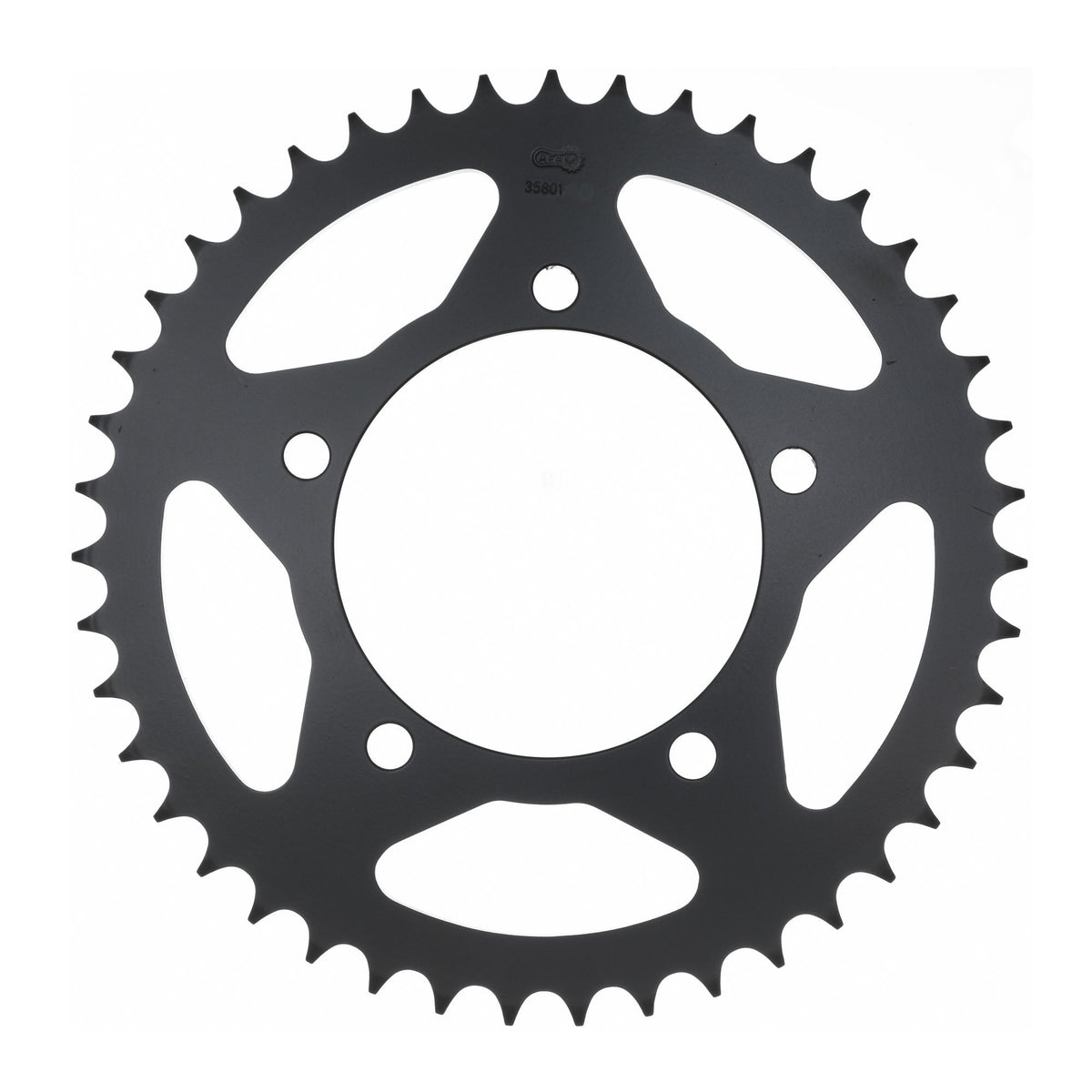

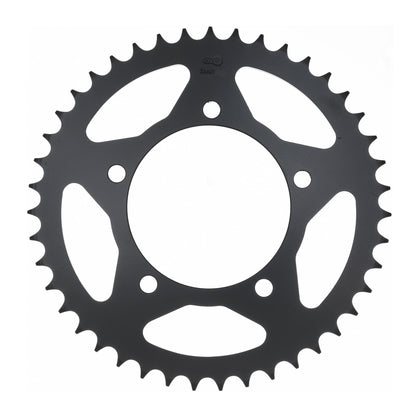

• Rear sprocket: AFAM steel sprocket #520 43 teeth - a35801.43
• Gear ratio front sprocket-chain-rear sprocket: 17-110-43

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-78479

Suitable for

Aprilia 501 - 750 cc RS 660 ABS KVH/KSG 2023
Aprilia 501 - 750 cc RS 660 ABS KVH/KSG 2024
