AFAM chain kit for Aprilia RS 660 Factory 2025 520 XHR2G chain kit

AFAM chain kit for Aprilia RS 660 Factory 2025 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Aprilia RS 660 Factory XGH00 2025-2025 chain kit

• Front sprocket: AFAM front sprocket 50-32194-17S #520 17 teeth - e5032194.17
• Chain: AFAM chain 520 XHR2-G Xs-ring 110 w. rivet link - a520xhr2.g.110

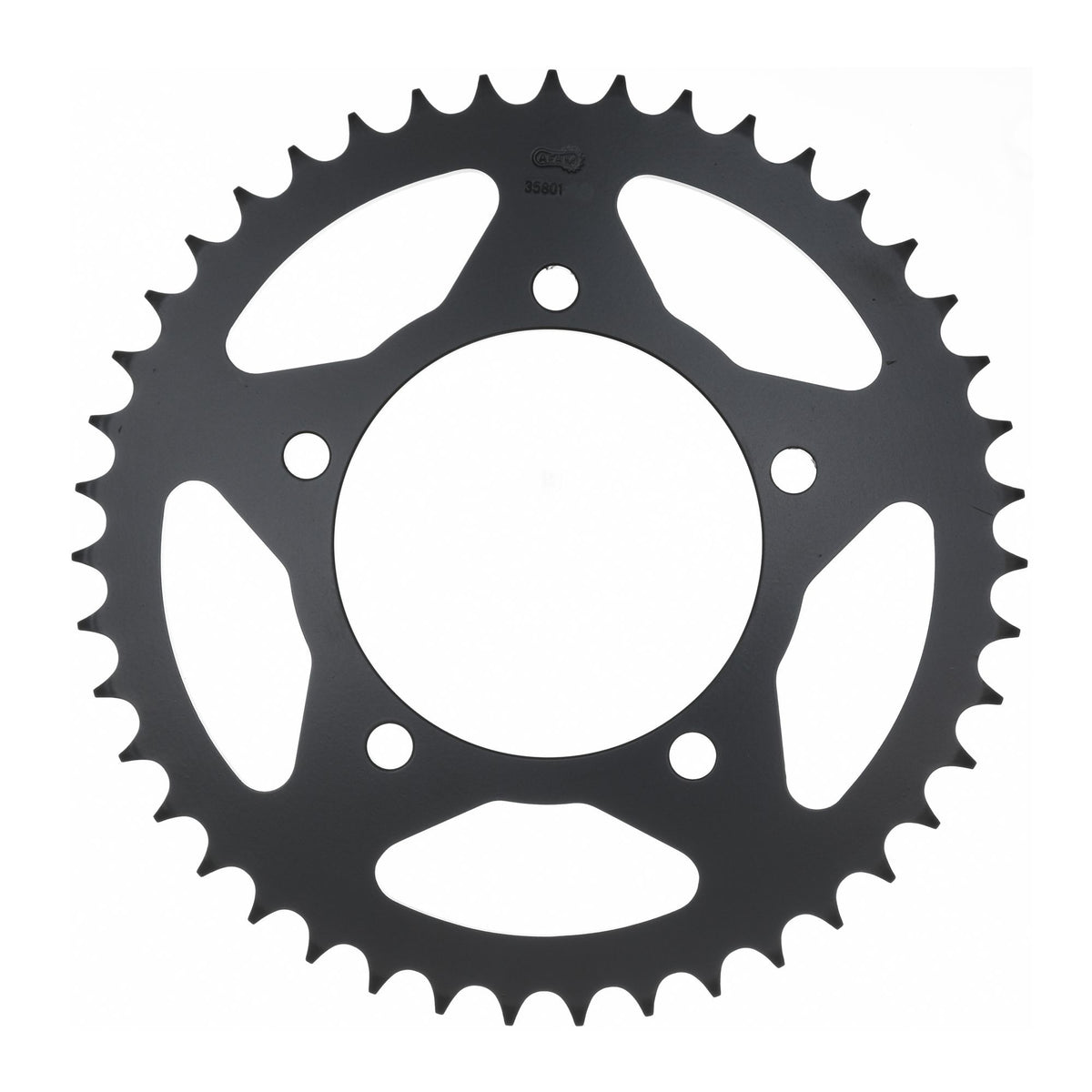

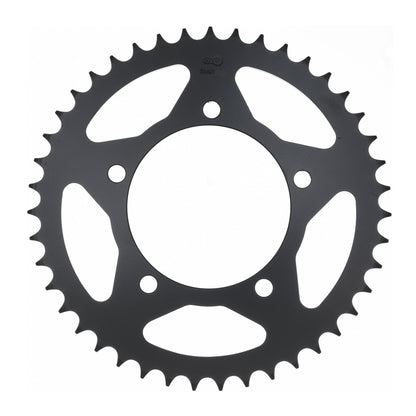

• Rear sprocket: AFAM steel rear sprocket #520 43 teeth - a35801.43
• Gear ratio front sprocket-chain-rear sprocket: 17-110-43

AFAM 520 XHR2-G

Hyper-reinforced chain with smooth-running characteristics. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78460

Suitable for

Aprilia 501 - 750 cc RS 660 Factory XGH00 2025
