AFAM chain kit for Aprilia RS 660 Factory 2026 520 XSRG chain kit

AFAM chain kit for Aprilia RS 660 Factory 2026 520 XSRG chain kit

Chain kit or chain set for the assigned model according to the product name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the Aprilia RS 660 Factory 2026-2026 chain kit

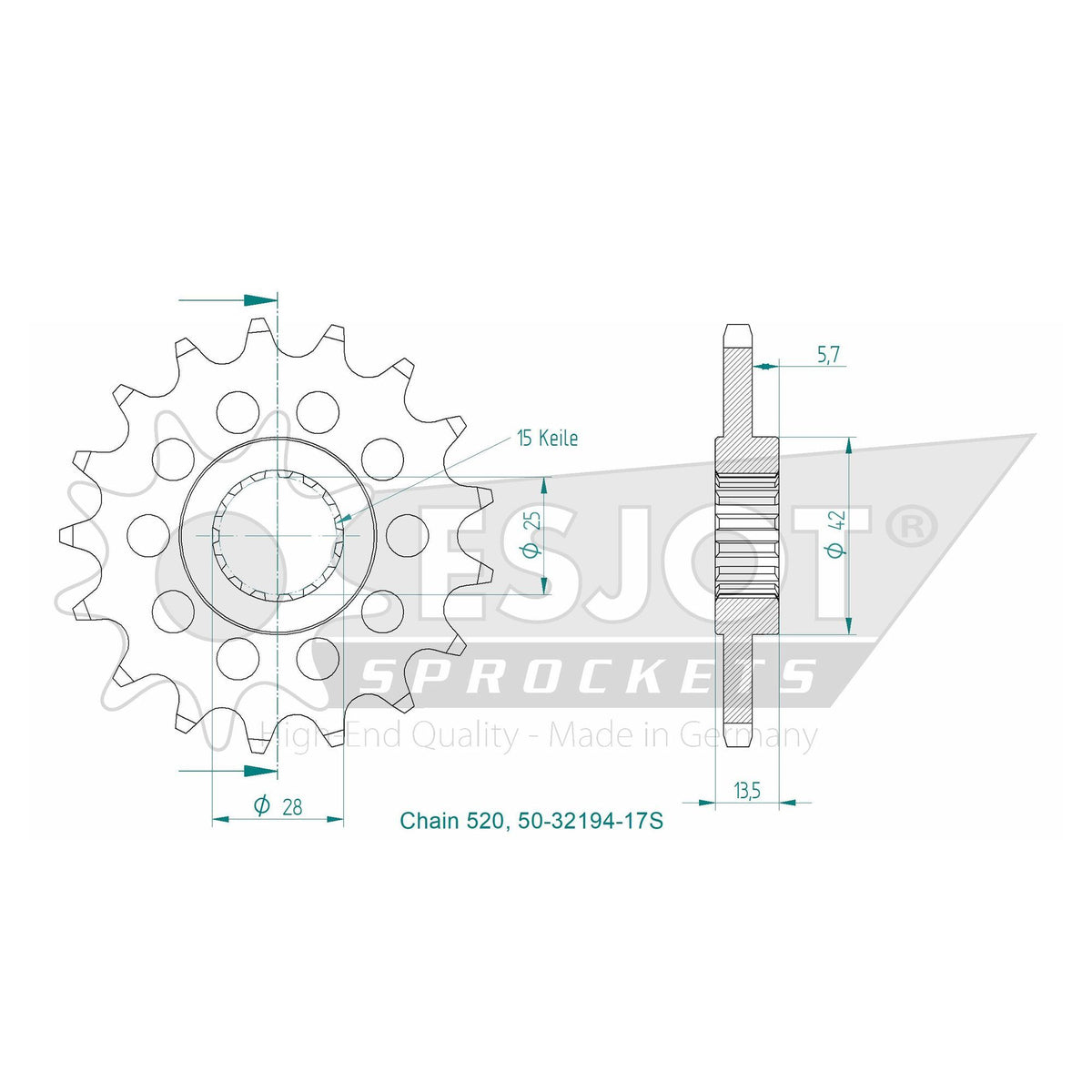

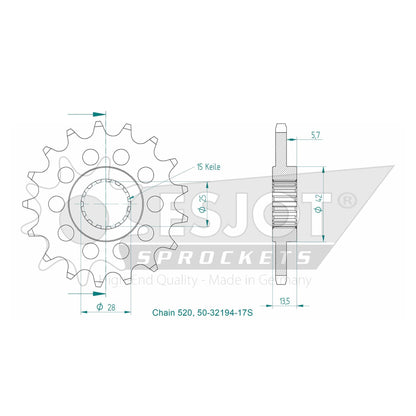

• Sprocket: AFAM sprocket 50-32194-17S #520 17 teeth - e5032194.17
• Chain: AFAM chain 520 XSR-G Xs-Ring 110 w. rivet link - a520xsr.g.110

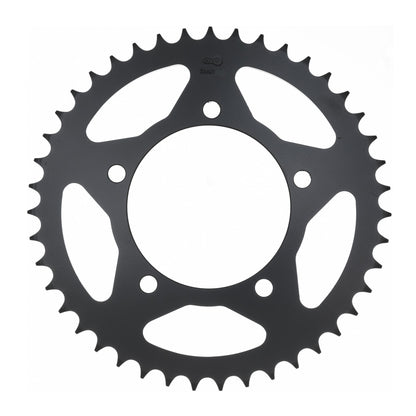

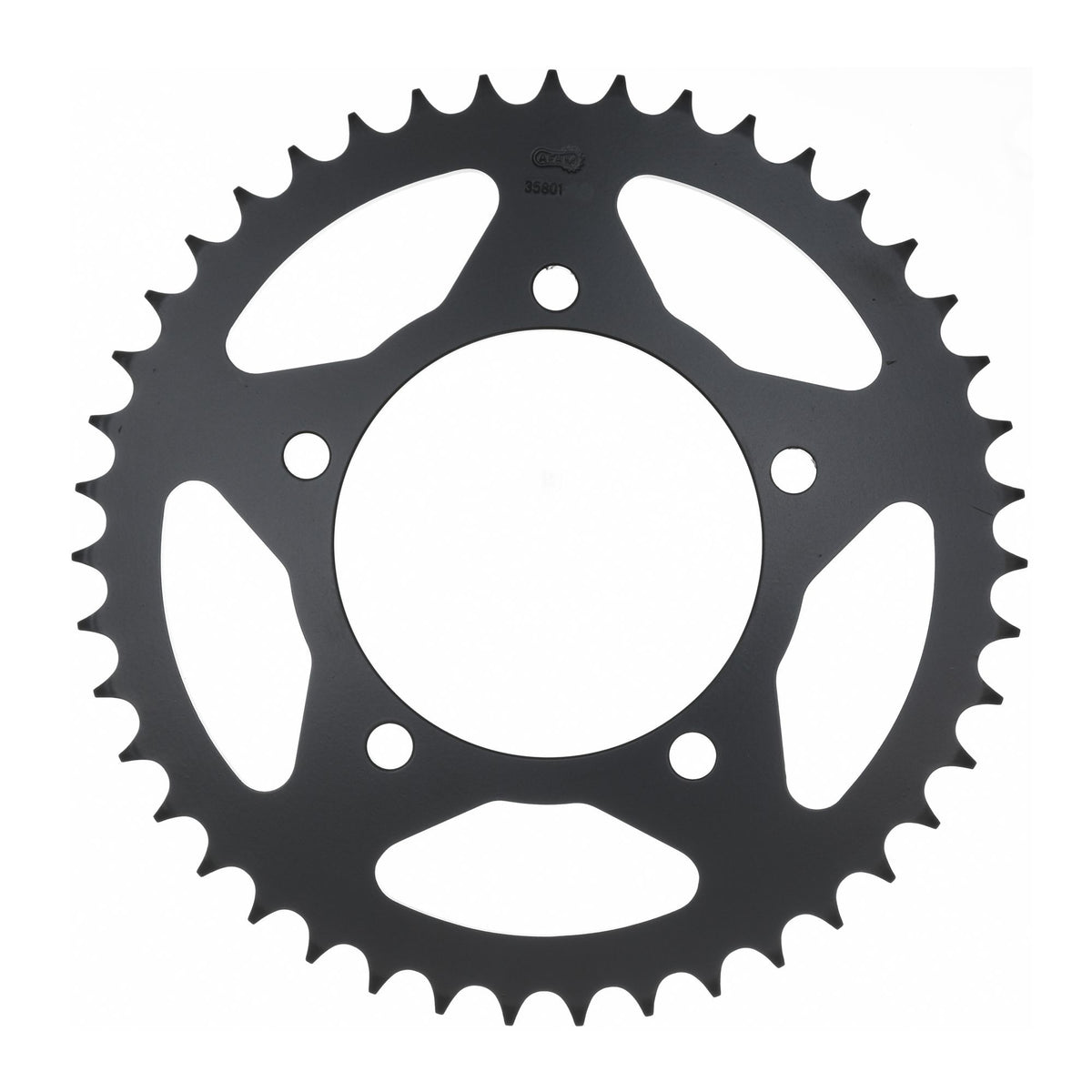

• Chain wheel: AFAM steel sprocket #520 43 teeth - a35801.43
• Gear ratio sprocket-chain-chain wheel: 17-110-43

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78491

Suitable for

Aprilia 501 - 750 cc RS 660 Factory 2026
