AFAM chain kit for Aprilia RSV4 1100 21-24 525 XHR3G chain kit

AFAM Chain Kit for Aprilia RSV4 1100 21-24 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Aprilia RSV4 1100 KYA00 2021-2024 chain kit

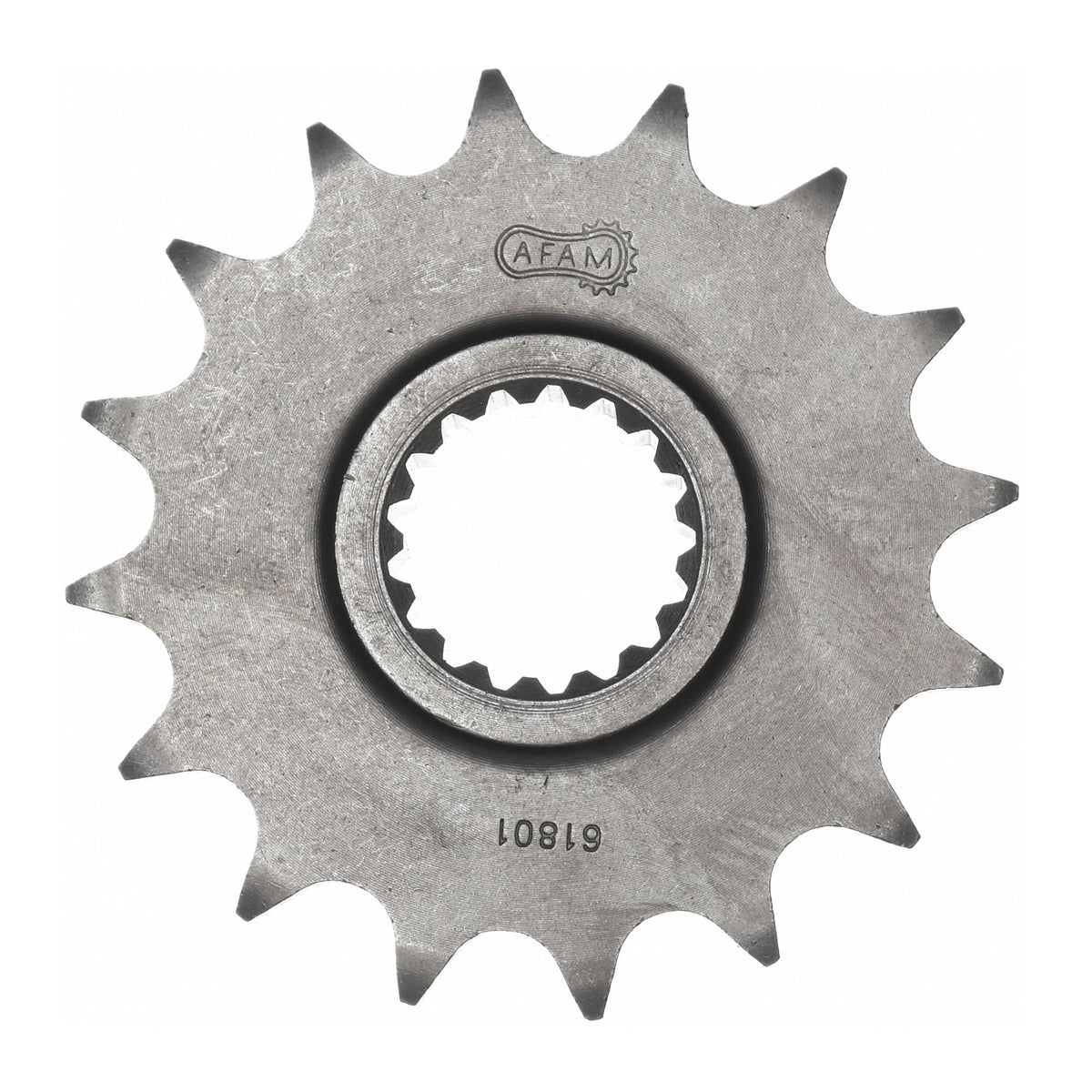

• Front sprocket: AFAM front sprocket #525 16 teeth - a61801.16
• Chain: AFAM chain 525 XHR3-G Xs-ring 110 with rivet link - a525xhr3.g.110

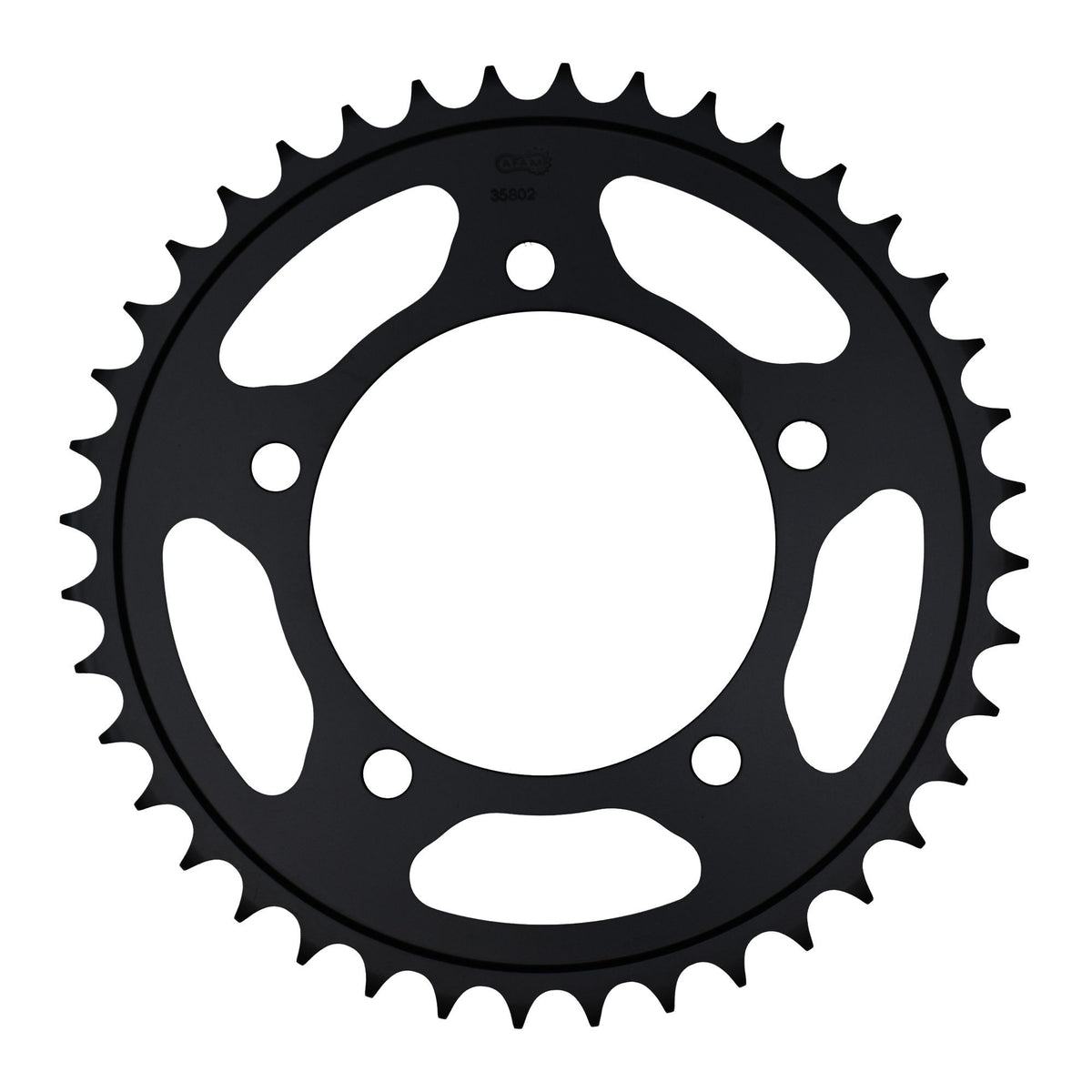

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a35802.41
• Gear ratio sprocket-chain-rear sprocket: 16-110-41

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-78510

Suitable for

Aprilia over 1001 cc RSV4 1100 KYA00 2021
Aprilia over 1001 cc RSV4 1100 KYA00 2022
Aprilia over 1001 cc RSV4 1100 KYA00 2023
Aprilia over 1001 cc RSV4 1100 KYA00 2024
