AFAM chain kit for Aprilia RSV4 1100 21-24 525 XHR3G chain kit

AFAM Chain kit for Aprilia RSV4 1100 21-24 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the Aprilia RSV4 1100 KYA00 2021-2024 chain kit

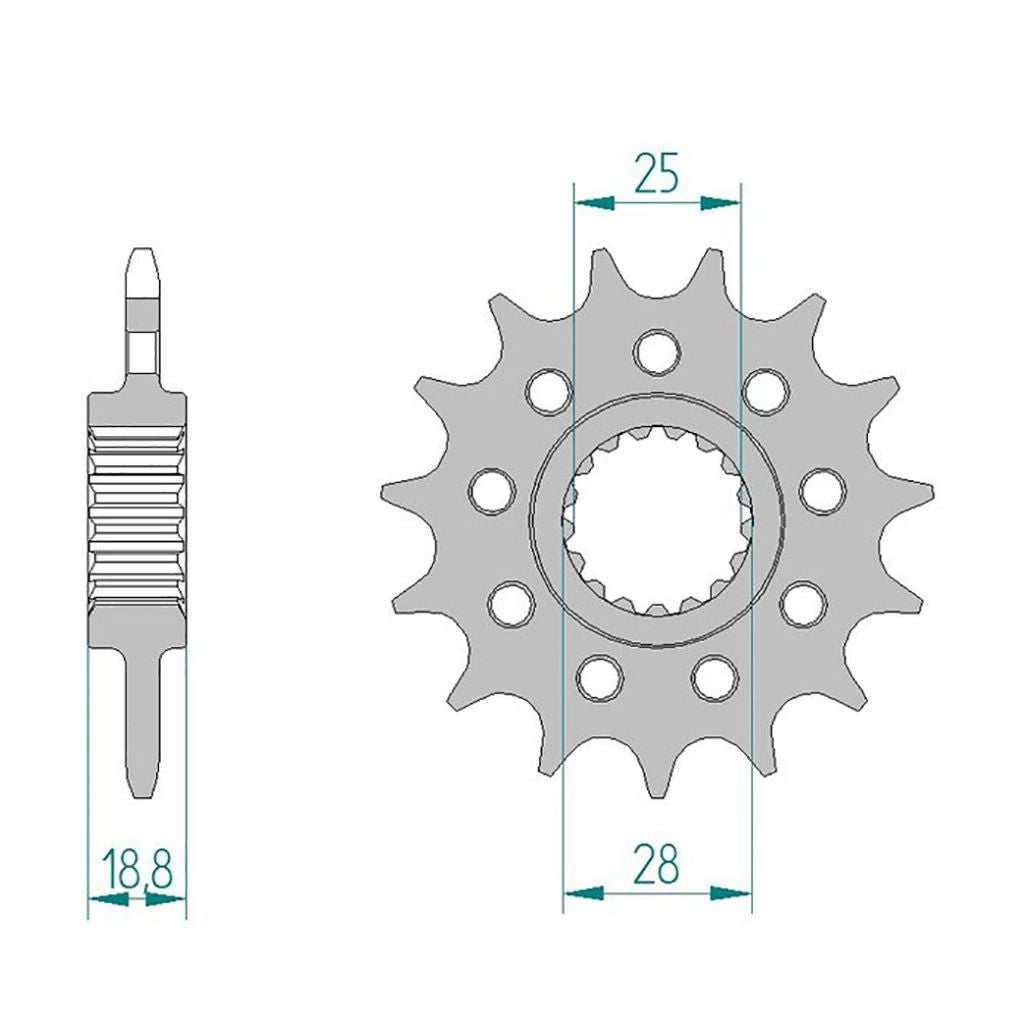

• Sprocket: AFAM sprocket #520 16 teeth - a61802.16
• Chain: AFAM chain 525 XHR3-G Xs-ring 110 with rivet link - a525xhr3.g.110

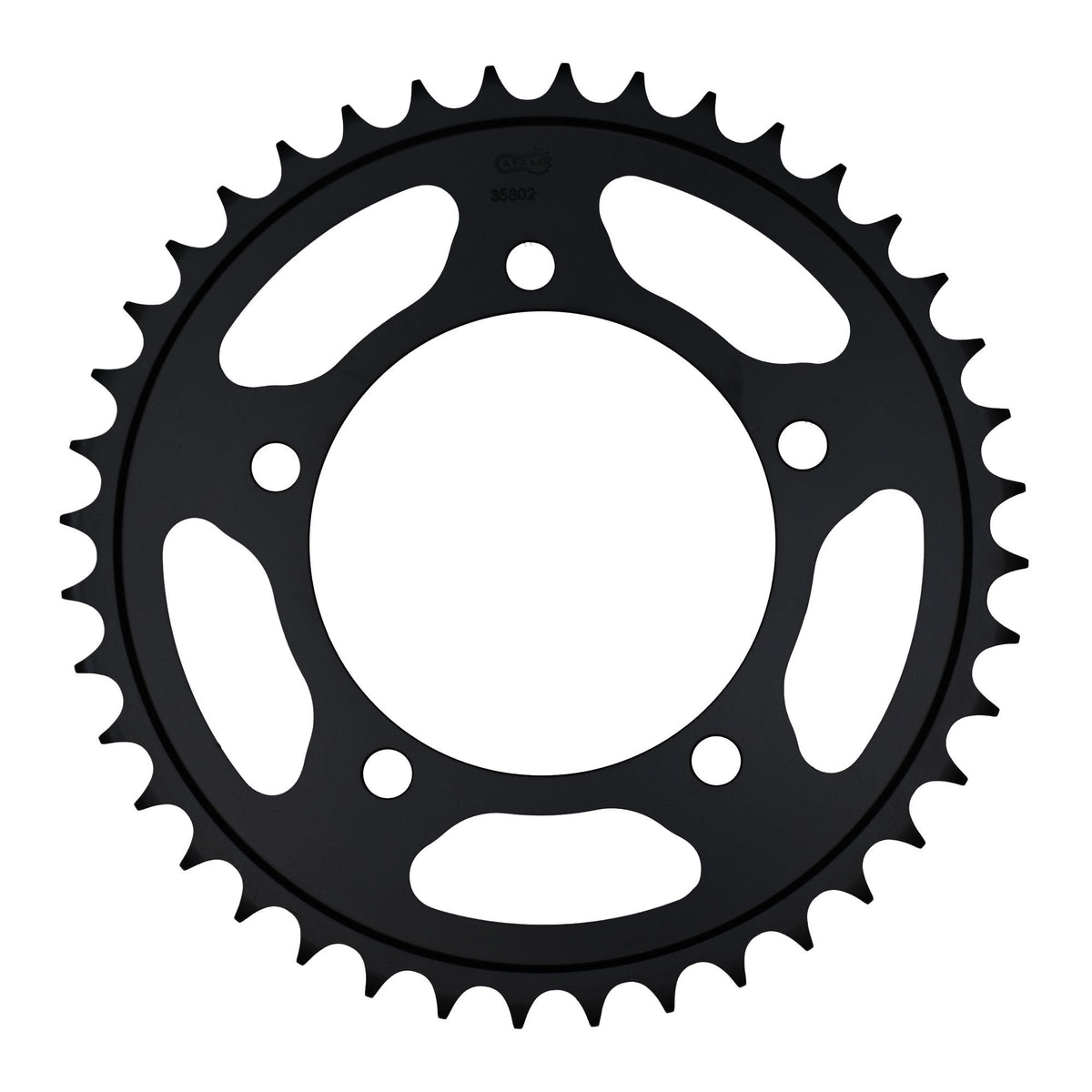

• Rear sprocket: AFAM STEEL rear sprocket #525 41 teeth - a35802.41
• Gear ratio sprocket-chain-rear sprocket: 16-110-41

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78572

Suitable for

Aprilia over 1001 cc RSV4 1100 KYA00 2021
Aprilia over 1001 cc RSV4 1100 KYA00 2022
Aprilia over 1001 cc RSV4 1100 KYA00 2023
Aprilia over 1001 cc RSV4 1100 KYA00 2024
