AFAM chain kit for Aprilia RSV4 1100 Factory ABS 2024 525 XHR3G chain kit

AFAM Chain Kit for Aprilia RSV4 1100 Factory ABS 2024 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Aprilia RSV4 1100 Factory ABS KYB00 2024-2024 Chain Kit

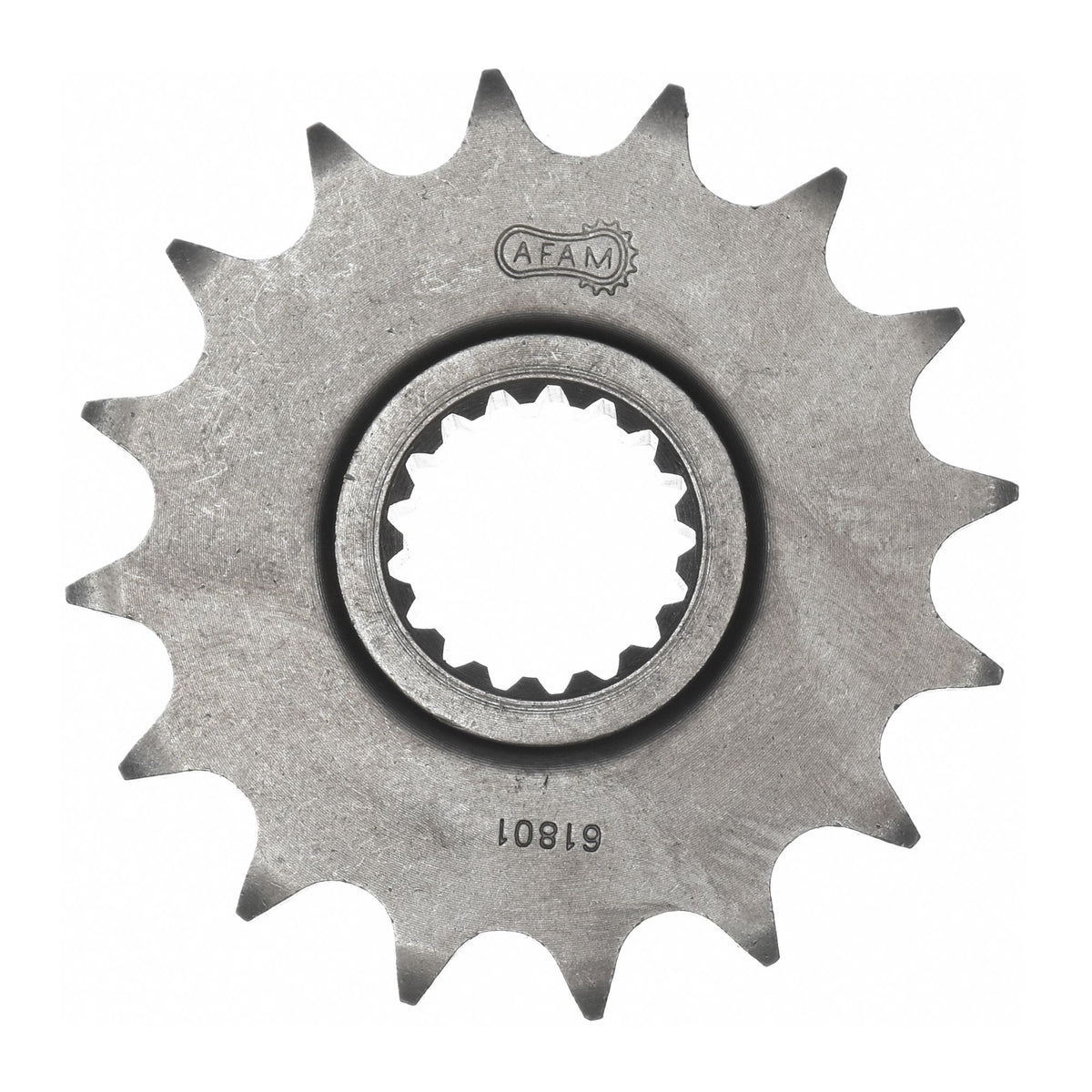

• Front sprocket: AFAM sprocket #525 16 teeth - a61801.16
• Chain: AFAM chain 525 XHR3-G Xs-ring 110 links w. rivet link - a525xhr3.g.110

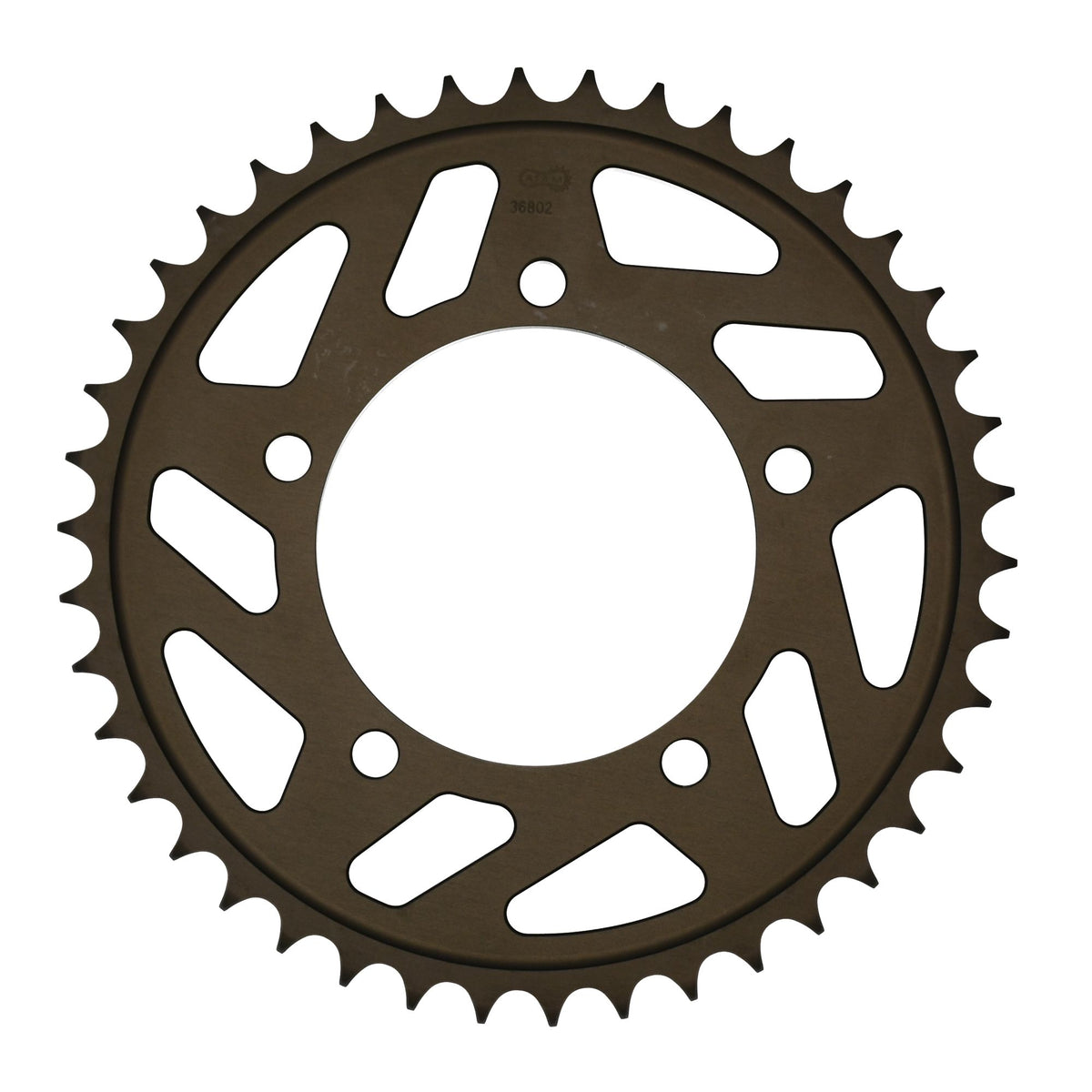

• Rear sprocket: AFAM sprocket ALU #525 41 teeth - a36802.41
• Gear ratio sprocket-chain-rear sprocket: 16-110-41

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78559

Fits

Aprilia over 1001 cc RSV4 1100 Factory ABS KYB00 2024
