AFAM chain kit for Aprilia RSV4 1100 Factory ABS 22-23 525 XHR3G chain kit

AFAM chain kit for Aprilia RSV4 1100 Factory ABS 22-23 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Aprilia RSV4 1100 Factory ABS 4KYB 2022-2023 chain kit

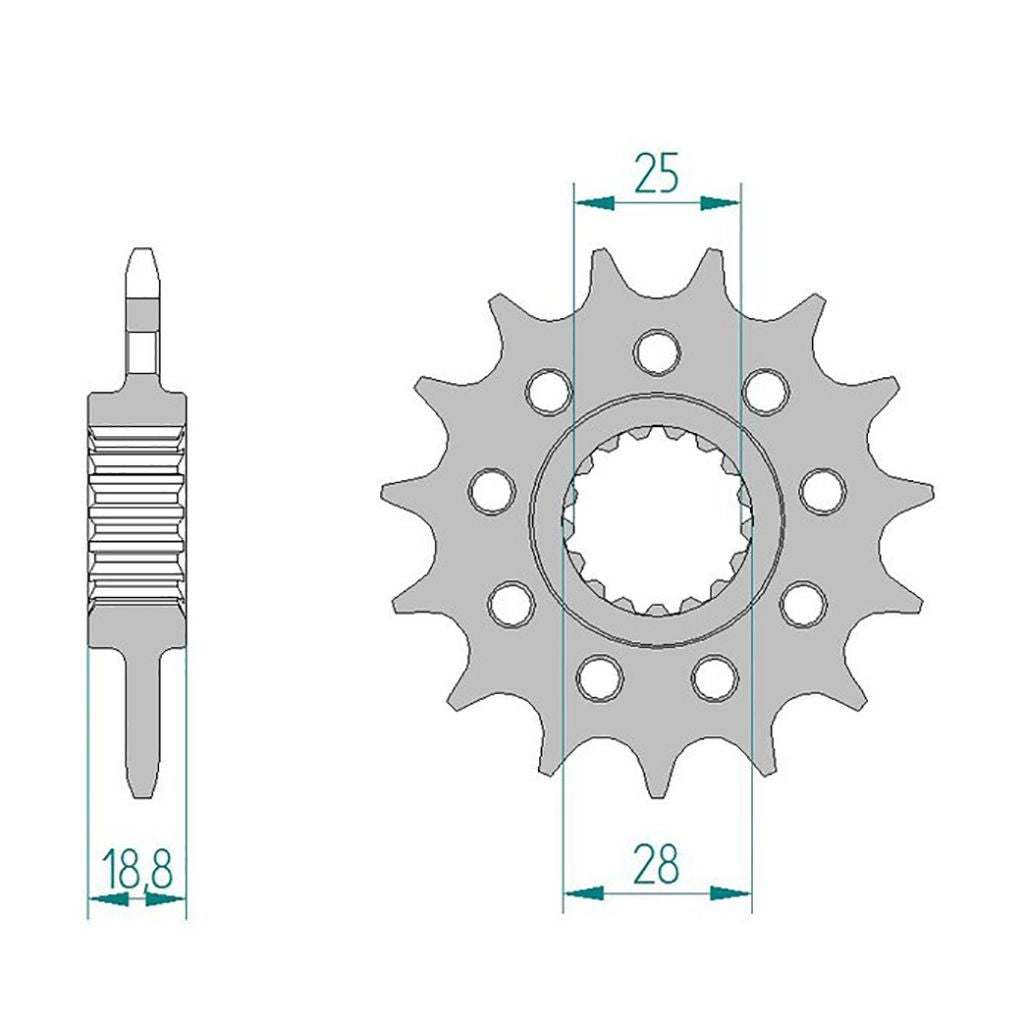

• Front sprocket: AFAM front sprocket #520 16 teeth - a61802.16
• Chain: AFAM chain 525 XHR3-G Xs-ring 110 with rivet link - a525xhr3.g.110

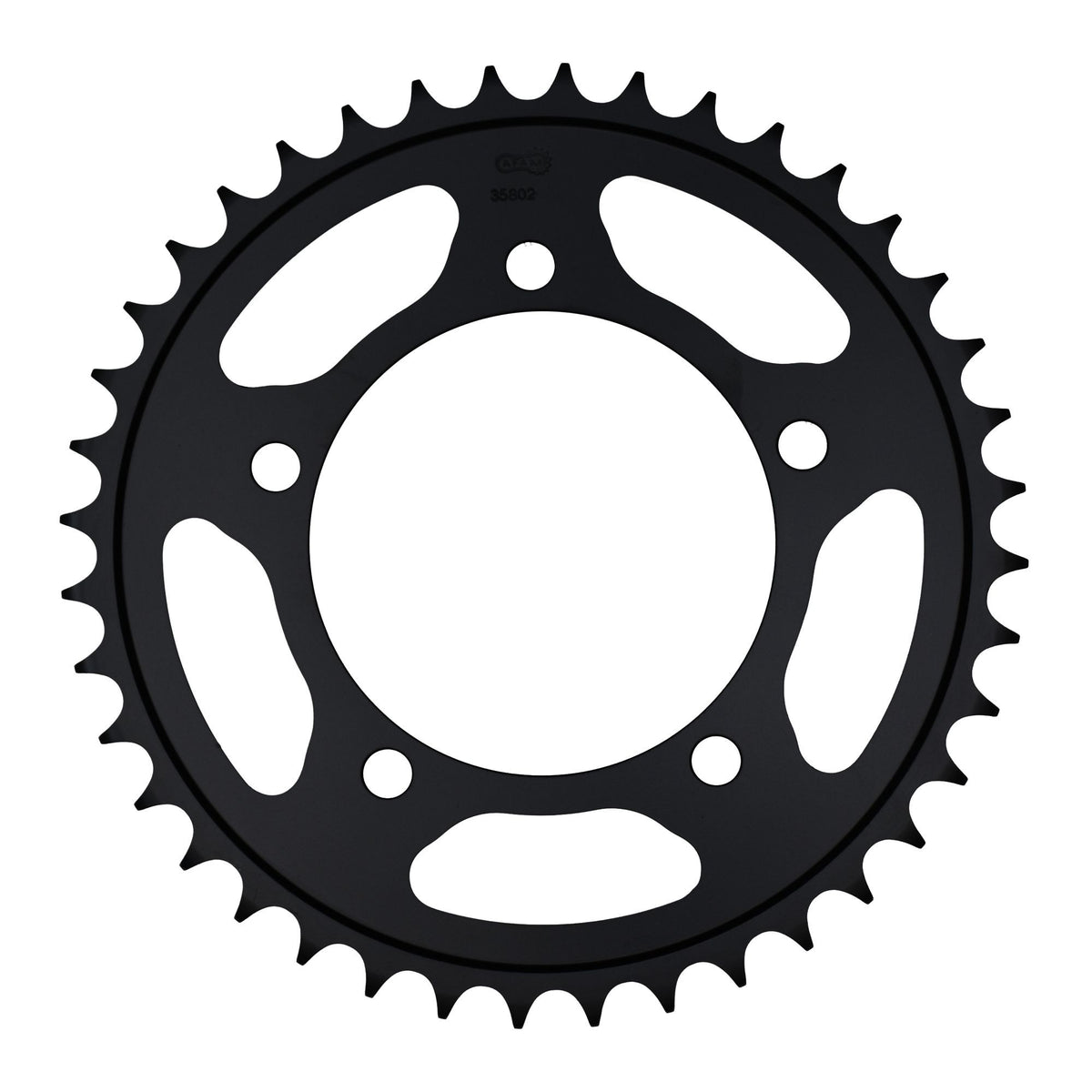

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a35802.41
• Gear ratio sprocket-chain-rear sprocket: 16-110-41

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78525

Suitable for

Aprilia over 1001 cc RSV4 1100 Factory ABS 4KYB 2022
Aprilia over 1001 cc RSV4 1100 Factory ABS 4KYB 2023
