AFAM chain kit for Aprilia RSV4 1100 Factory ABS 22-23 525 XSR2G chain kit

AFAM chain kit for Aprilia RSV4 1100 Factory ABS 22-23 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit Aprilia RSV4 1100 Factory ABS 4KYB 2022-2023

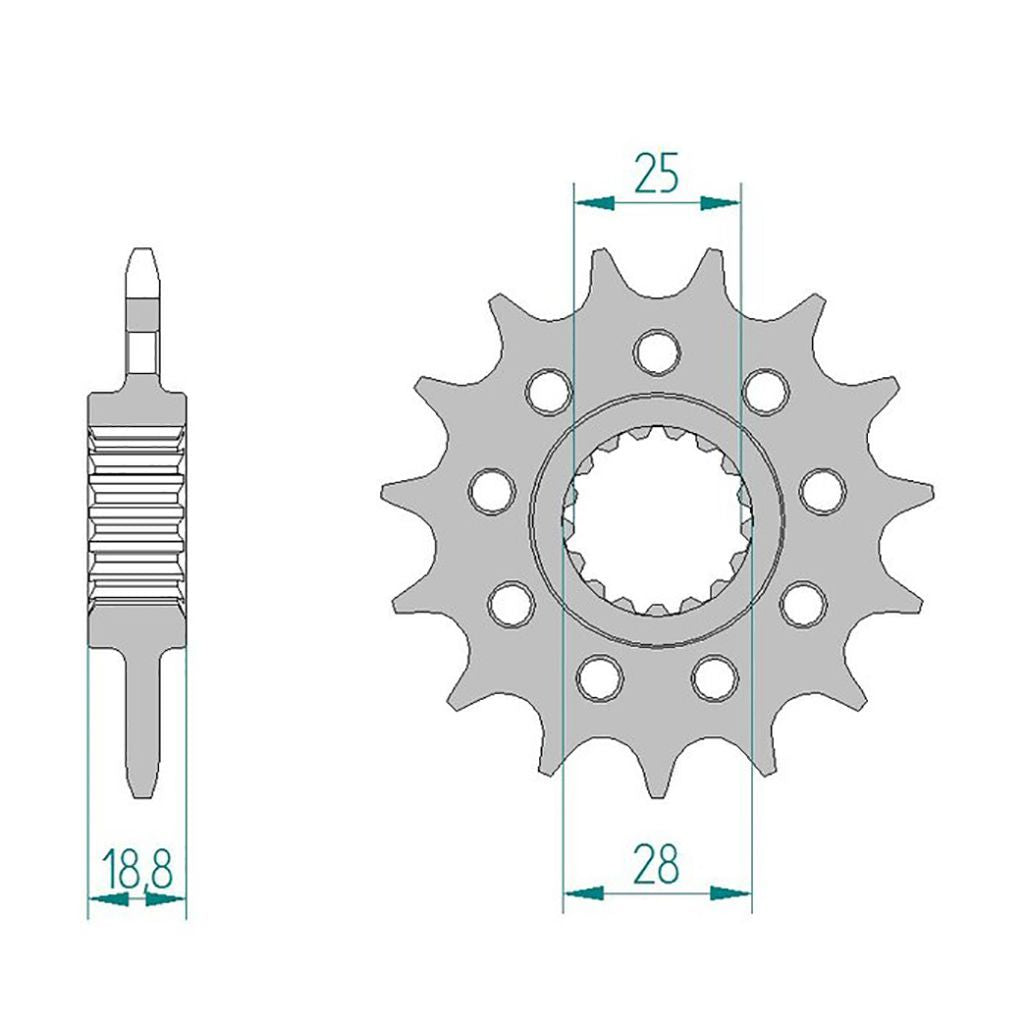

• Front sprocket: AFAM front sprocket #520 16 teeth - a61802.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 110 with rivet link - a525xsr2.g.110

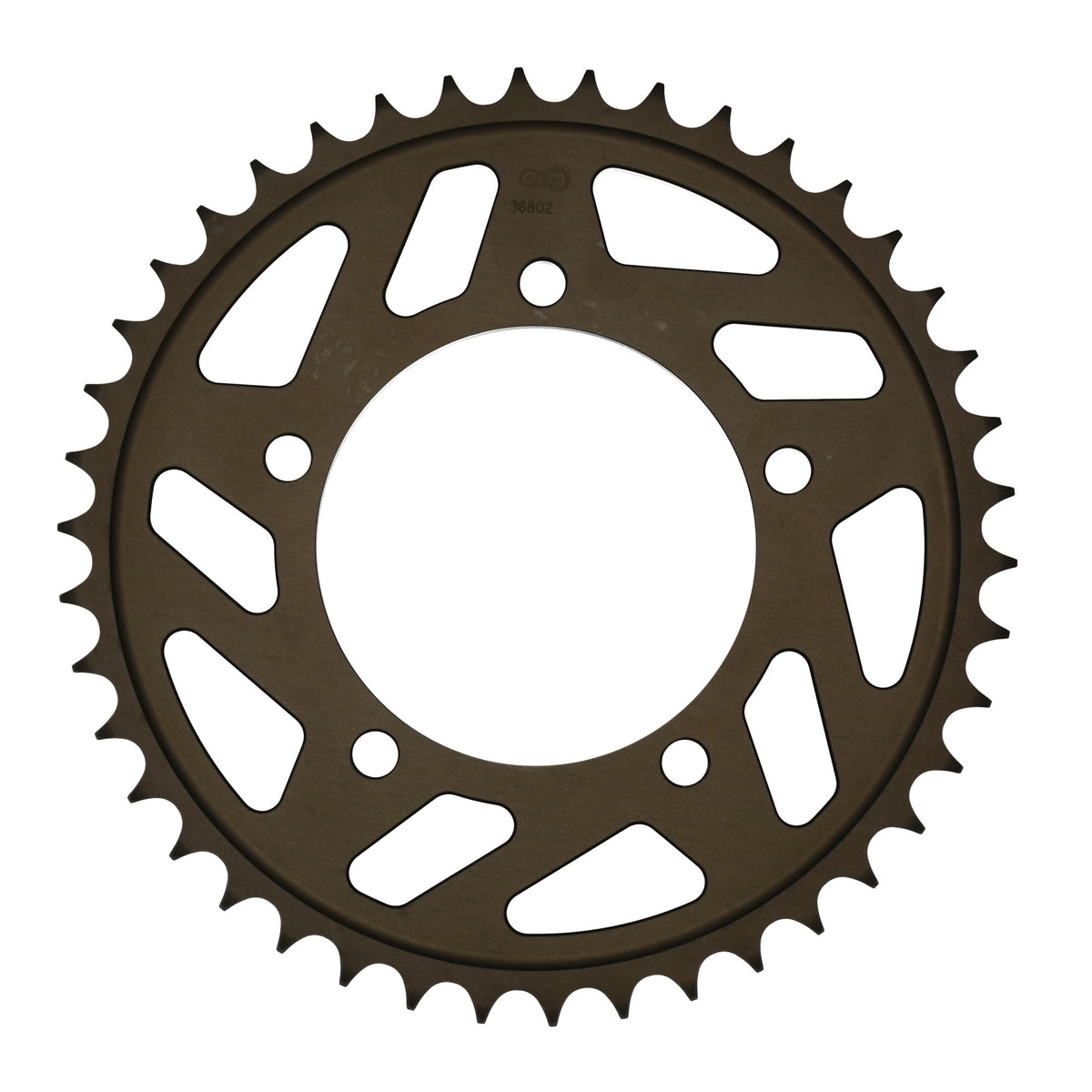

• Rear sprocket: AFAM rear sprocket ALU #525 41 teeth - a36802.41
• Gear ratio front sprocket-chain-rear sprocket: 16-110-41

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-78583

Fits

Aprilia over 1001 cc RSV4 1100 Factory ABS 4KYB 2022
Aprilia over 1001 cc RSV4 1100 Factory ABS 4KYB 2023
