AFAM chain kit for Aprilia Tuono V4 1100 Factory ABS 2021 525 XHR3G chain kit

AFAM chain kit for Aprilia Tuono V4 1100 Factory ABS 2021 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Aprilia Tuono V4 1100 Factory ABS KZ 2021-2021 chain kit

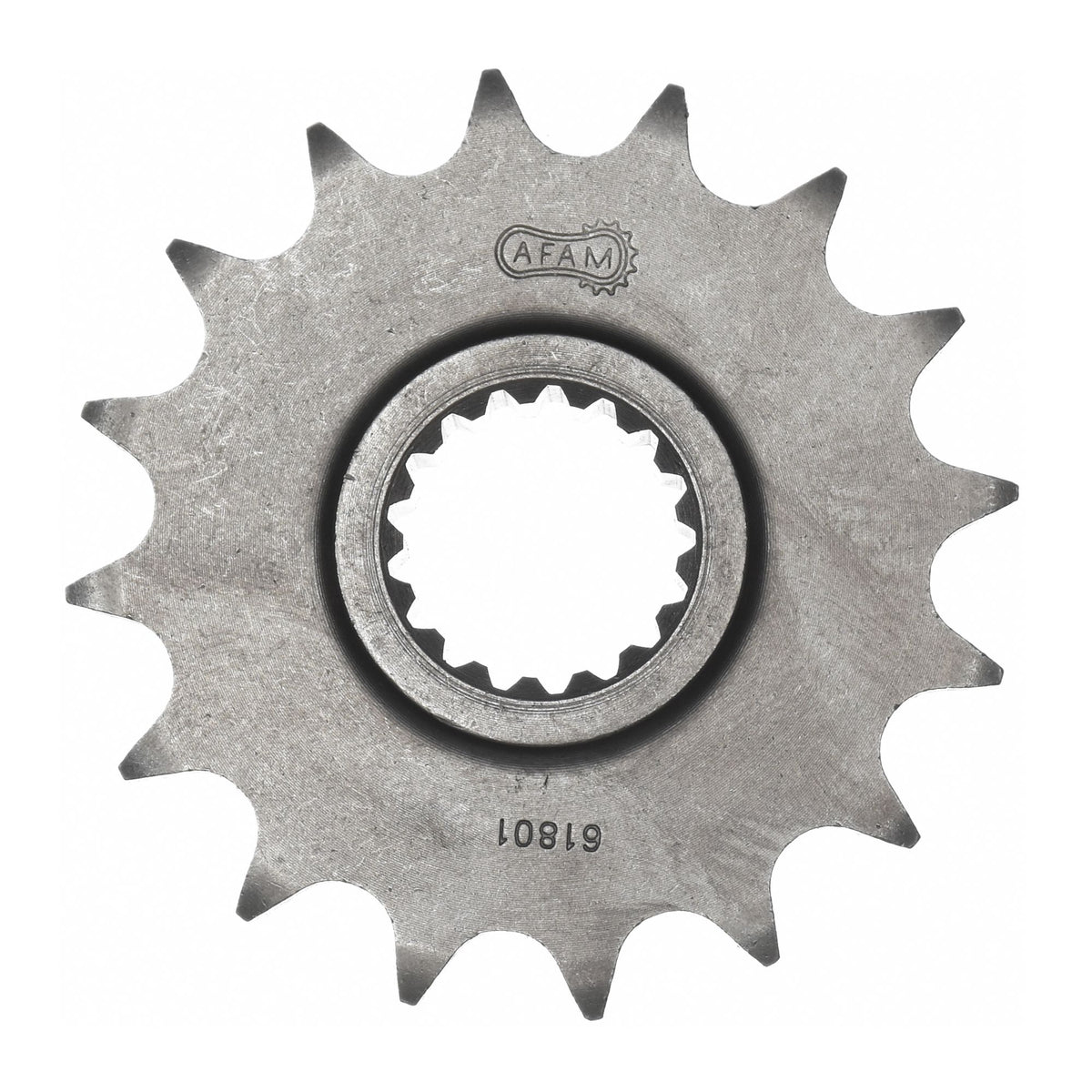

• Front sprocket: AFAM front sprocket #525 15 teeth - a61801.15
• Chain: AFAM chain 525 XHR3-G Xs-Ring 110 with rivet link - a525xhr3.g.110

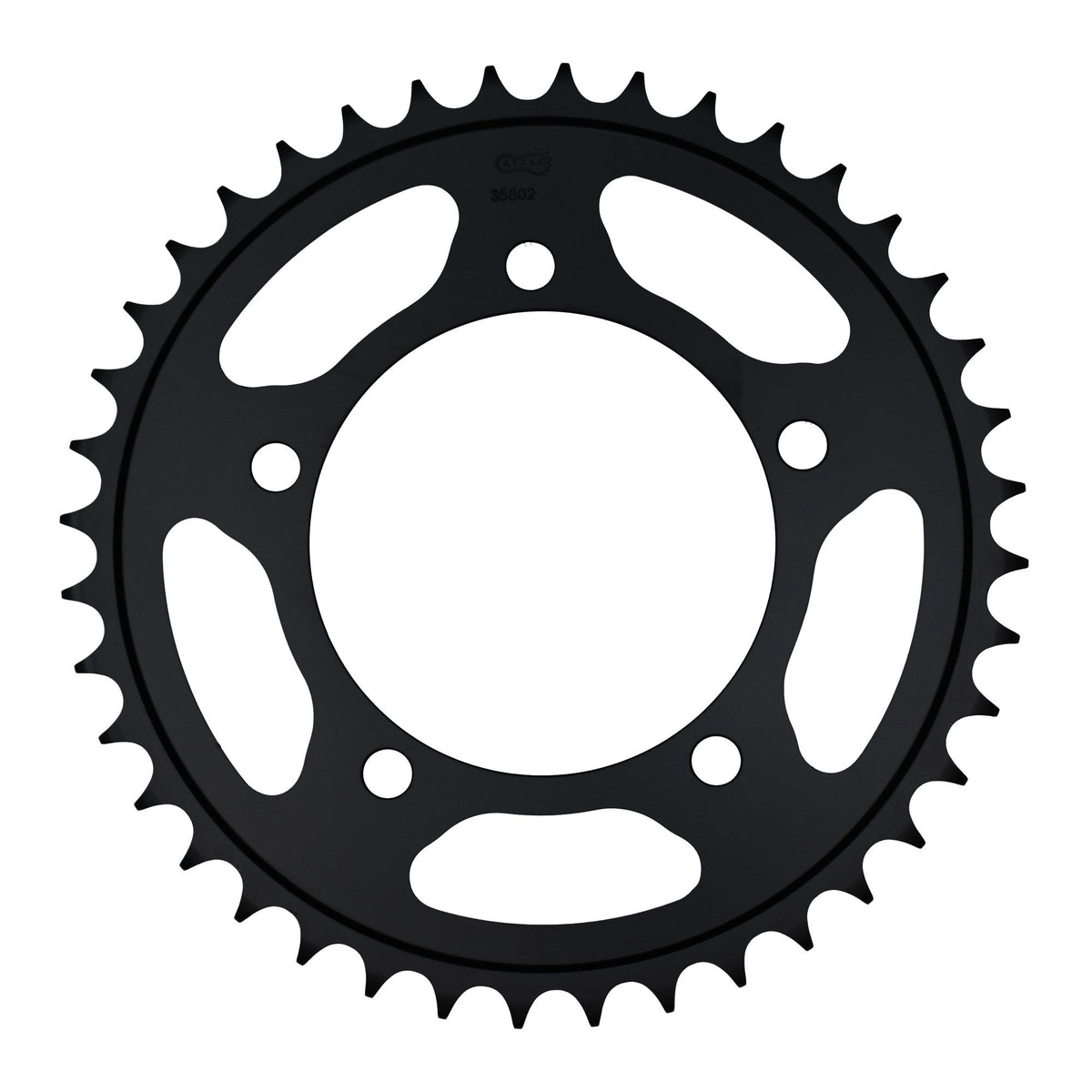

• Rear sprocket: AFAM rear sprocket STEEL #525 42 teeth - a35802.42
• Gear ratio front sprocket-chain-rear sprocket: 15-110-42

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78414

Suitable for

Aprilia over 1001 cc Tuono V4 1100 Factory ABS KZ 2021
