AFAM chain kit for Beta RR 125 Enduro AC 07-09 428 XMR2G chain kit

AFAM chain kit for Beta RR 125 Enduro AC 07-09 428 XMR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Beta RR 125 Enduro AC ZD3E2001 2007-2009 chain kit

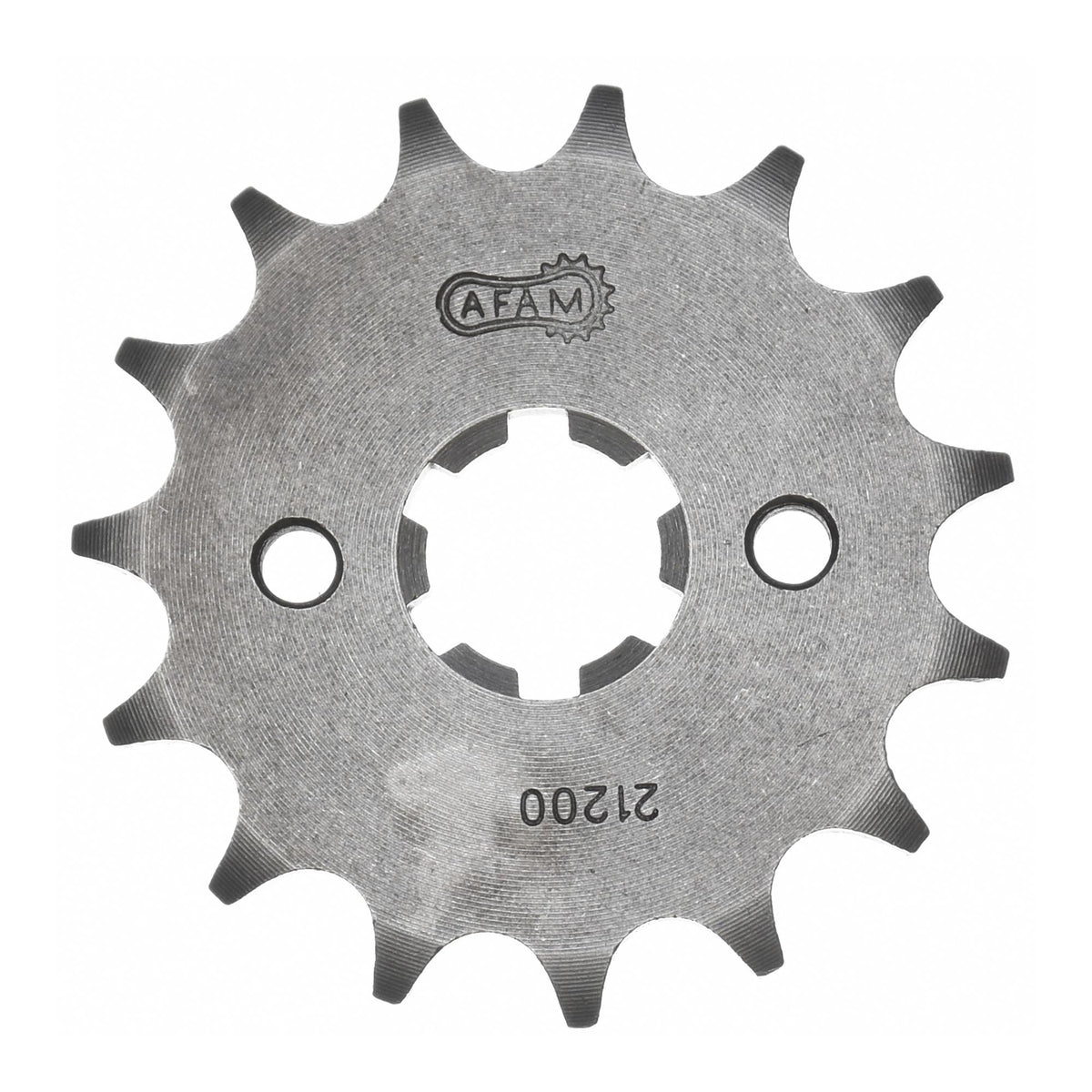

• Front sprocket: AFAM front sprocket #428 14 teeth - a21200.14
• Chain: AFAM chain 428 XMR2-G Xs-ring 130 w. clip link - a428xmr2.g.130
• Rear sprocket: AFAM rear sprocket STEEL #428 50 teeth - a38200.50
• Gear ratio front sprocket-chain-rear sprocket: 14-130-50

AFAM 428 XMR2-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-61025

Suitable for

Beta 101 - 125 cc RR 125 Enduro AC ZD3E2001 2007
Beta 101 - 125 cc RR 125 Enduro AC ZD3E2001 2008
Beta 101 - 125 cc RR 125 Enduro AC ZD3E2001 2009
