AFAM chain kit for Beta RR 125 Enduro LC 18-22 520 MX6GG chain kit

AFAM Chain Kit for Beta RR 125 Enduro LC 18-22 520 MX6GG Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

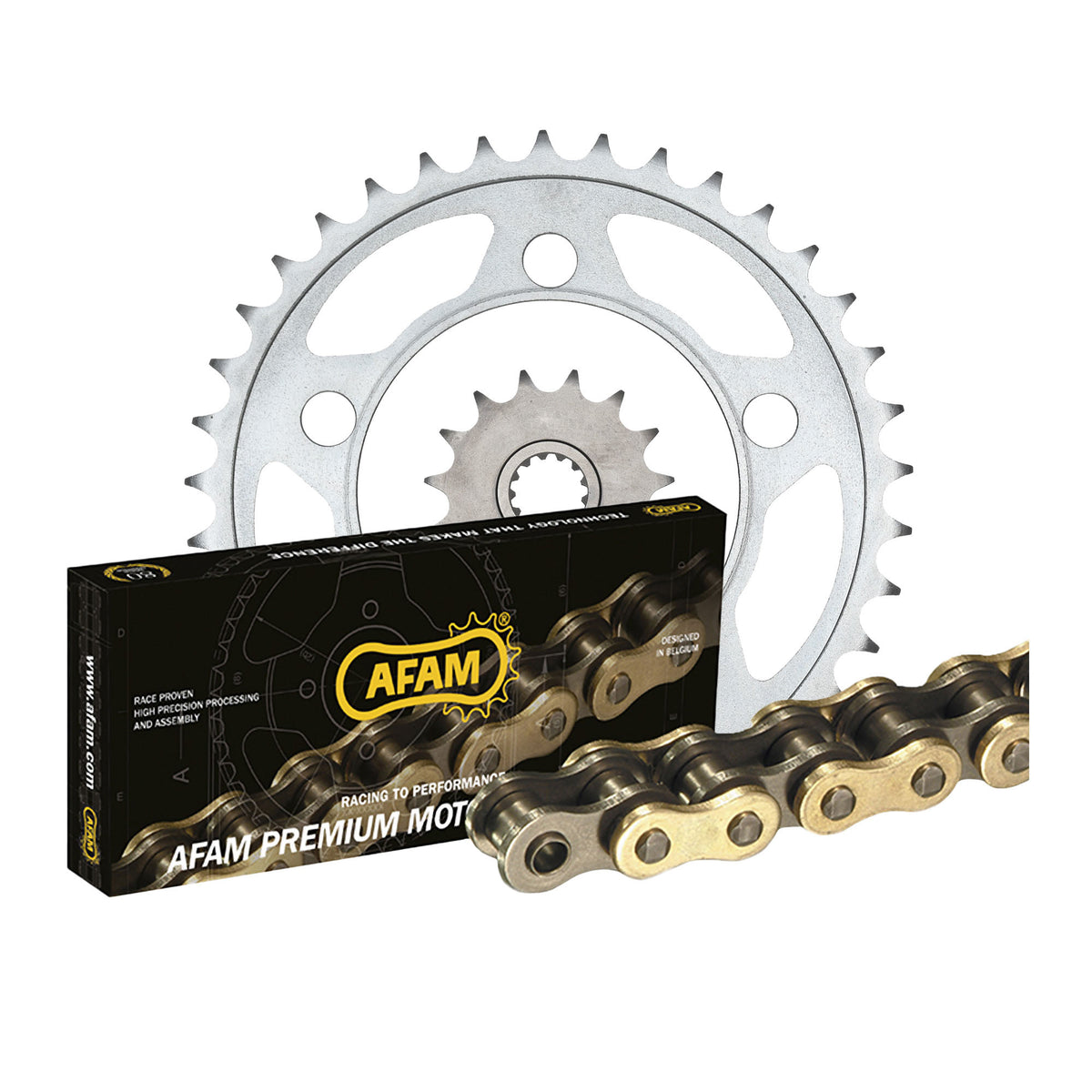

Components of the chain kit Beta RR 125 Enduro LC 2T 2018-2022

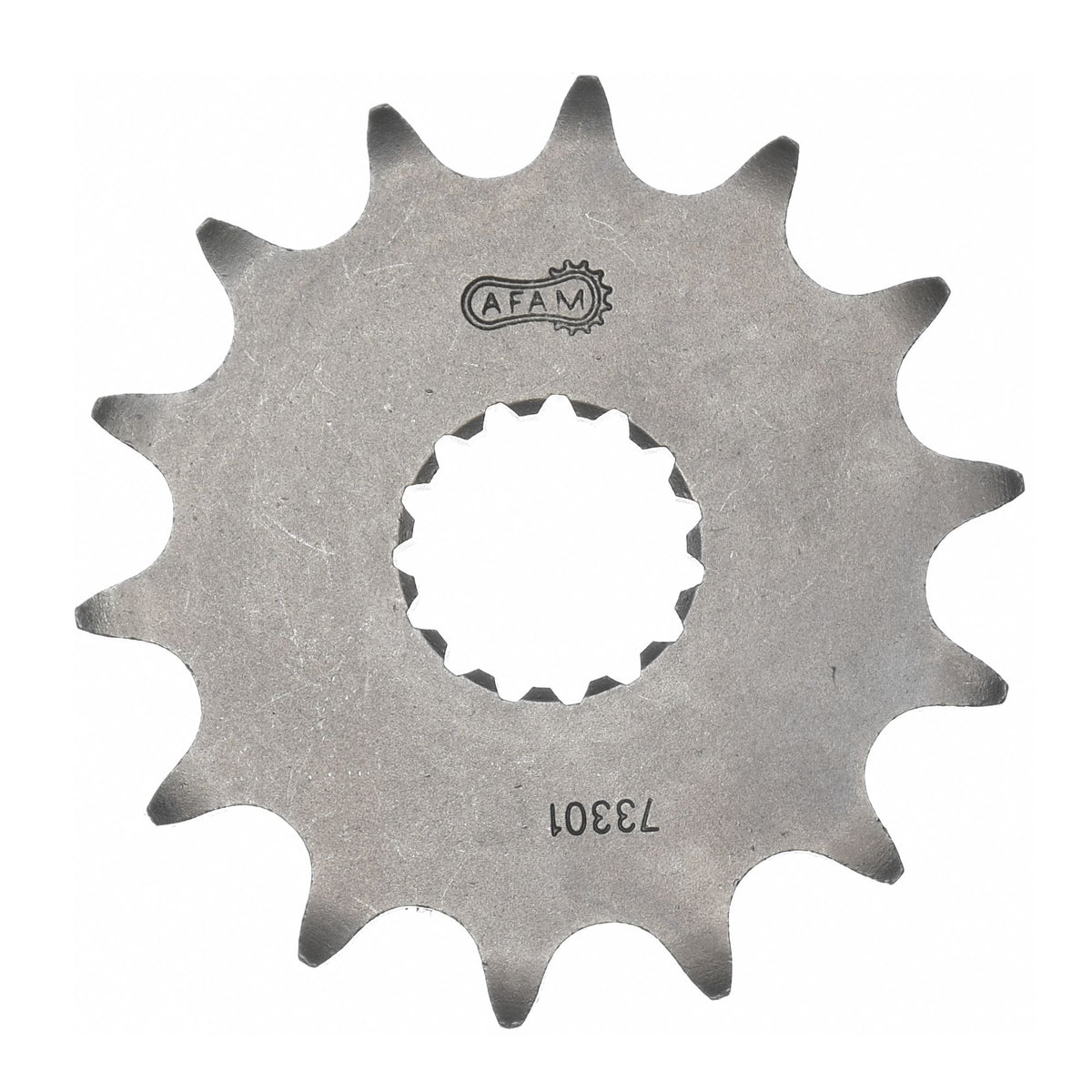

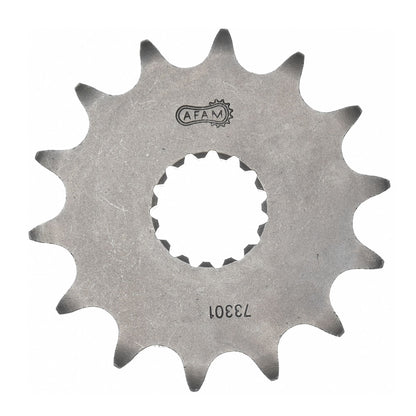

• Front sprocket: AFAM front sprocket #520 SC 13 teeth - a73301.13sc

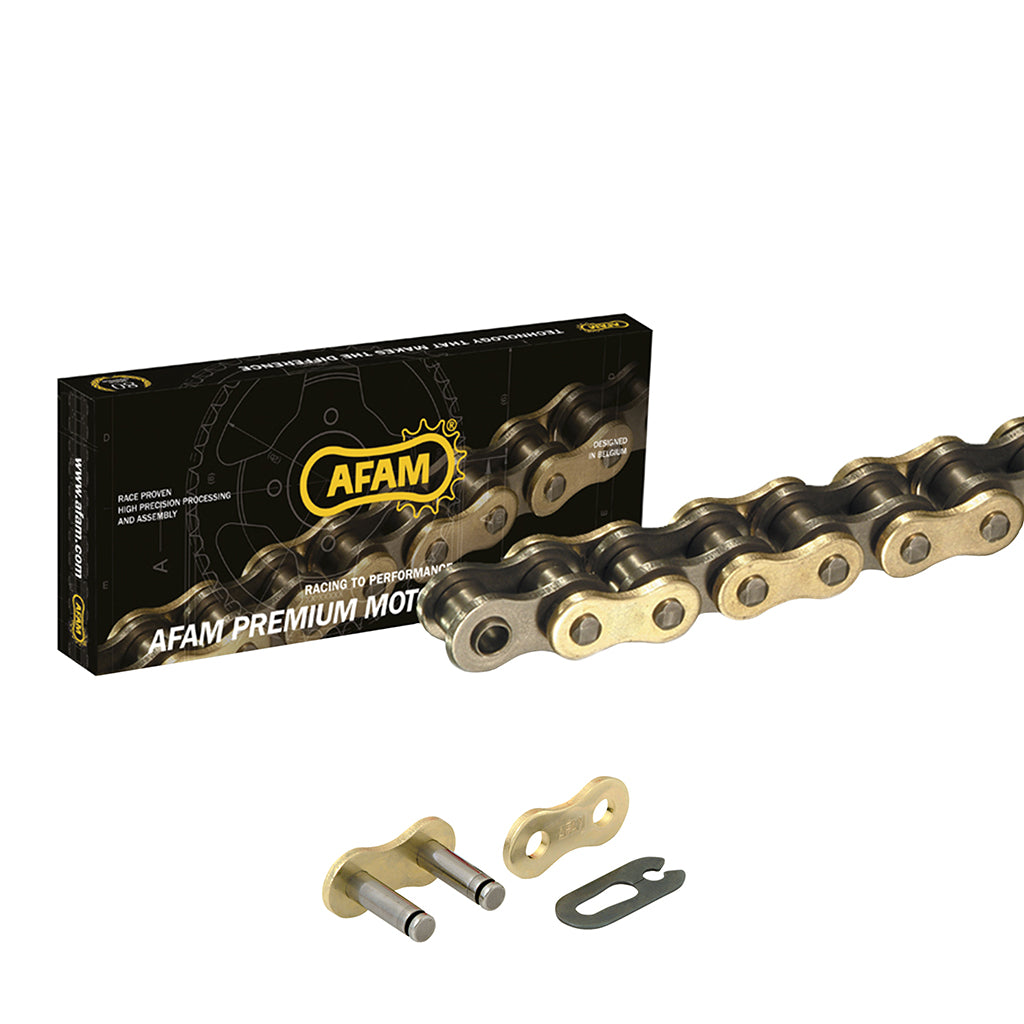

• Chain: AFAM chain 520 MX6-GG 116 w. clip link - a520mx6.gg.116

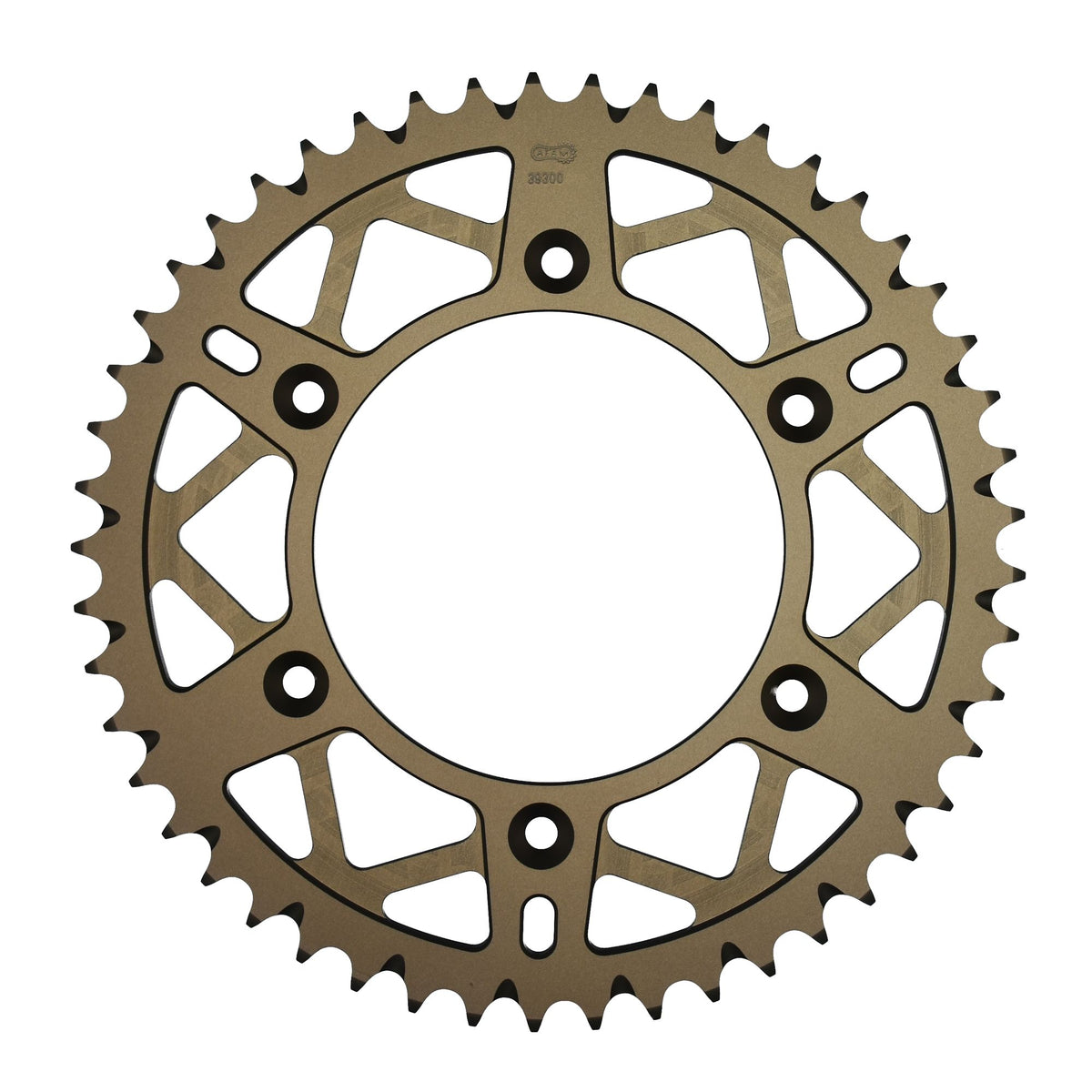

• Rear sprocket: AFAM rear sprocket ALU #520 S/C 50 teeth - a39300.50sc
• Transmission ratio sprocket-chain-rear sprocket: 13-116-50

AFAM 520 MX6-GG MX Racing GP

Pure Moto-Cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 500 cc / only Moto-Cross

Technical data:
Pitch: 520
Pin length: 16.8 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 37.40 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-61587

Suitable for

Beta 101 - 125 cc RR 125 Enduro LC 2T 2018
Beta 101 - 125 cc RR 125 Enduro LC 2T 2019
Beta 101 - 125 cc RR 125 Enduro LC 2T 2020
Beta 101 - 125 cc RR 125 Enduro LC 2T 2021
Beta 101 - 125 cc RR 125 Enduro LC 2T 2022
