AFAM chain kit for Beta RR 125 Enduro Racing LC 19-22 520 XMR3 chain kit

AFAM chain kit for Beta RR 125 Enduro Racing LC 19-22 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Beta RR 125 Enduro Racing LC 2T 2019-2022

• Front sprocket: AFAM front sprocket #520 SC 13 teeth - a73301.13sc

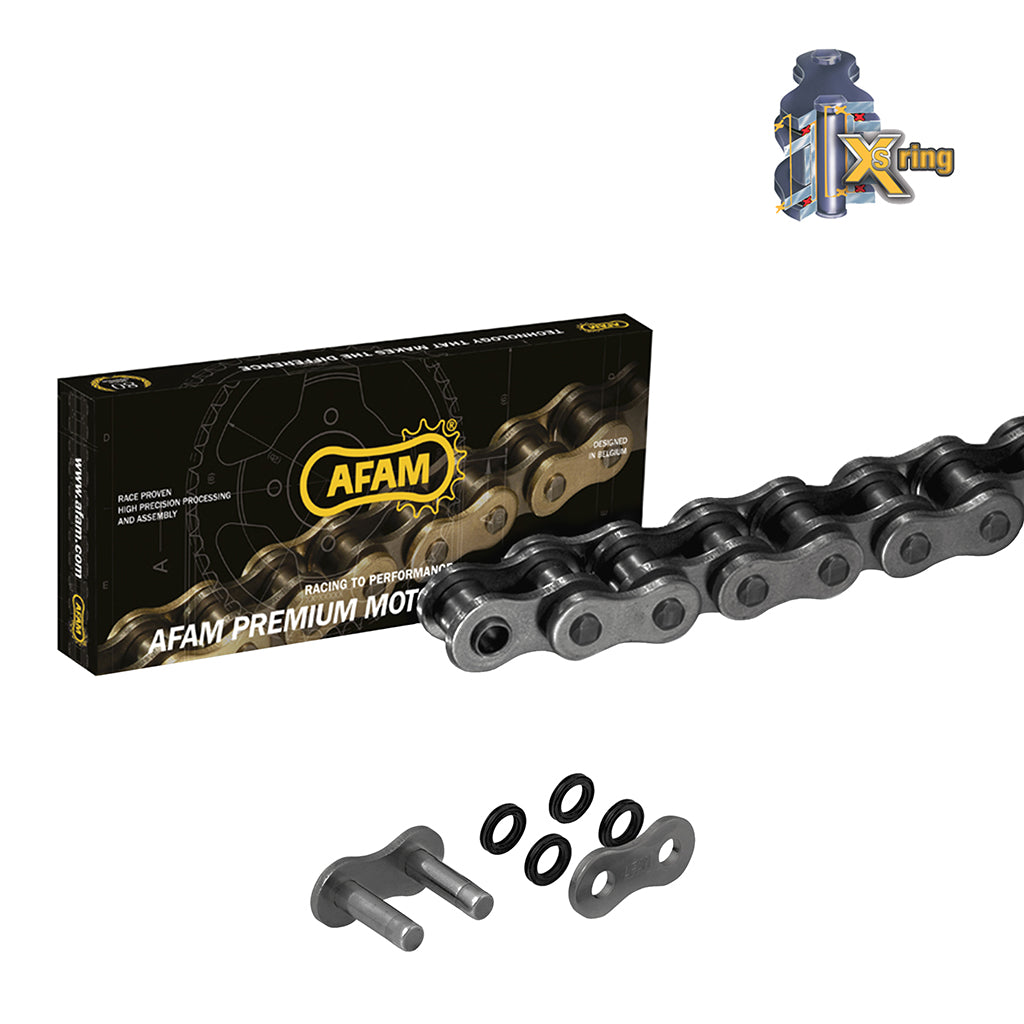

• Chain: AFAM chain 520 XMR3 Xs-Ring 114 w. rivet link - a520xmr3.114

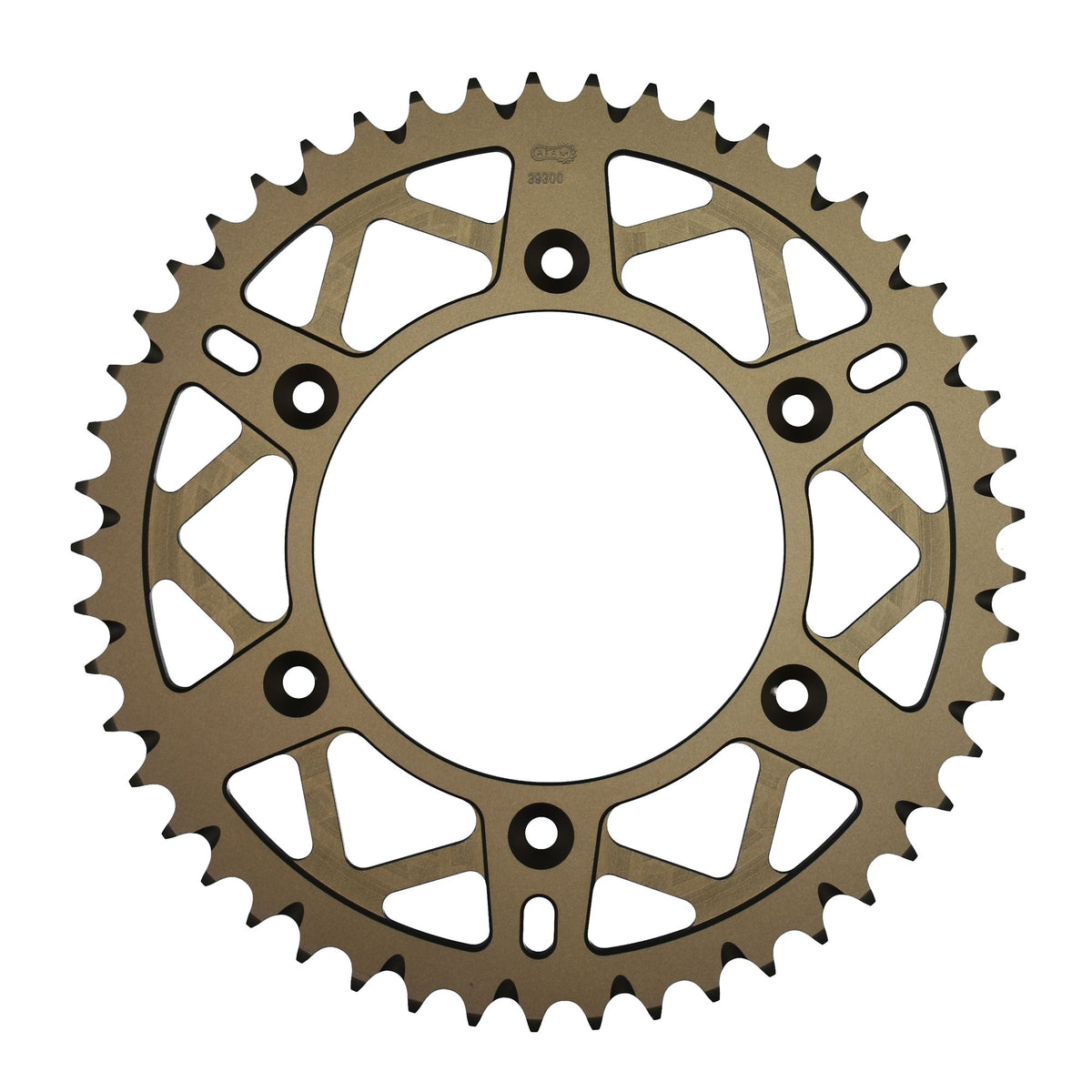

• Rear sprocket: AFAM rear sprocket ALU #520 S/C 50 teeth - a39300.50sc
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by engine displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-57786

Suitable for

Beta 101 - 125 cc RR 125 Enduro Racing LC 2T 2019
Beta 101 - 125 cc RR 125 Enduro Racing LC 2T 2020
Beta 101 - 125 cc RR 125 Enduro Racing LC 2T 2021
Beta 101 - 125 cc RR 125 Enduro Racing LC 2T 2022
