AFAM chain kit for Beta RR 125 Motard AC 2007 428 XMR2G chain kit

AFAM chain kit for Beta RR 125 Motard AC 2007 428 XMR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Beta RR 125 Motard AC ZD3E2001 2007-2007

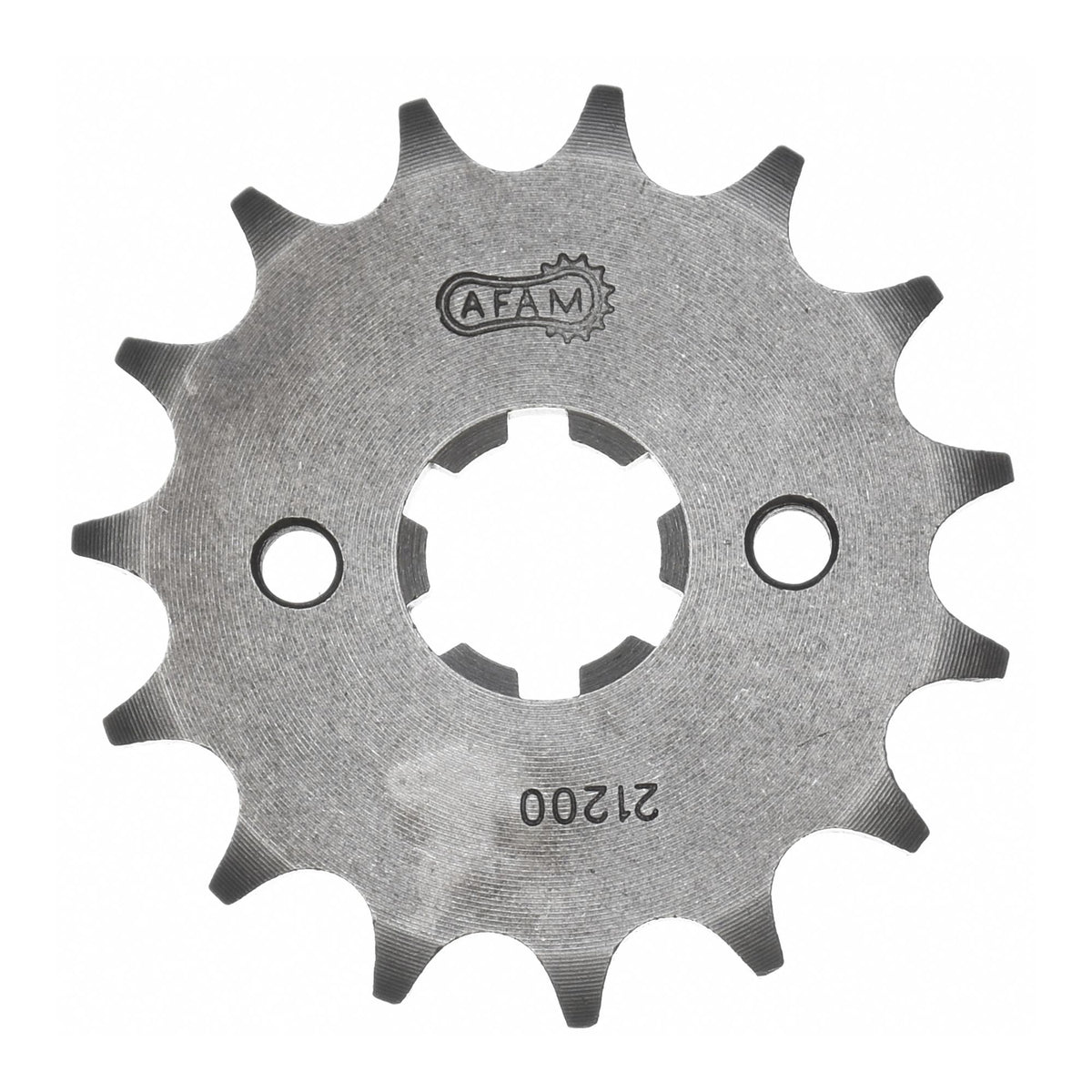

• Front sprocket: AFAM sprocket #428 14 teeth - a21200.14
• Chain: AFAM chain 428 XMR2-G Xs-ring 128 w. clip link - a428xmr2.g.128
• Rear sprocket: AFAM sprocket STEEL #428 46 teeth - a38200.46
• Transmission ratio front sprocket-chain-rear sprocket: 14-128-46

AFAM 428 XMR2-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-61030

Fits

Beta 101 - 125 cc RR 125 Motard AC ZD3E2001 2007
