AFAM chain kit for BMW S 1000 XR ABS 20-21 525 XHR3G chain kit

AFAM chain kit for BMW S 1000 XR ABS 20-21 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit BMW S 1000 XR ABS K69 2020-2021

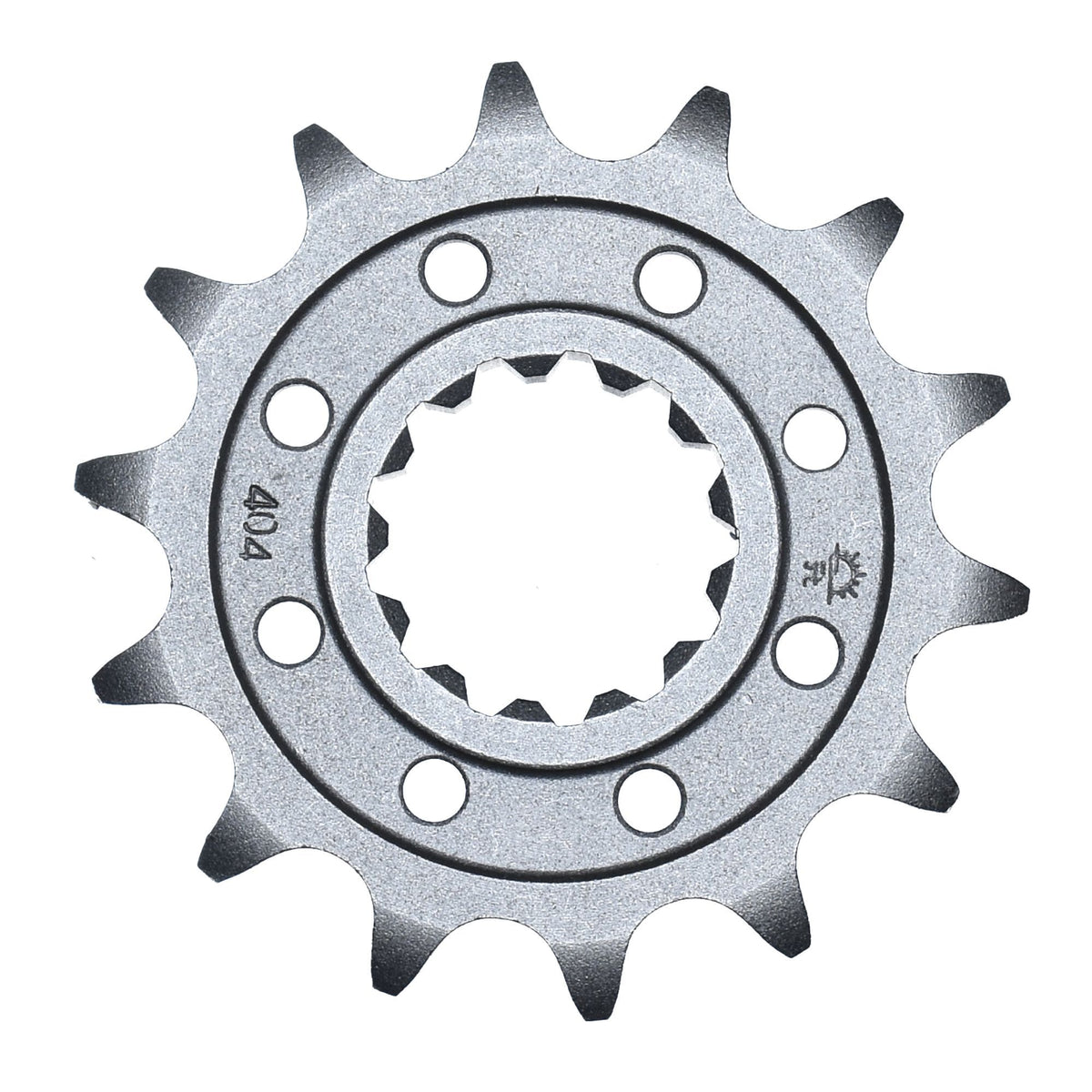

• Front sprocket: AFAM front sprocket #525 17 teeth - a166800.17
• Chain: AFAM chain 525 XHR3-G Xs-ring 128 w. rivet link - a525xhr3.g.128
• Rear sprocket: AFAM steel rear sprocket #525 45 teeth - a164600.45
• Gear ratio front sprocket-chain-rear sprocket: 17-128-45

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15295

Fits

BMW 751 - 1000 cc S 1000 XR ABS K69 2020
BMW 751 - 1000 cc S 1000 XR ABS K69 2021
