AFAM chain kit for Cagiva Canyon 600 96-99 520 XMR3 chain kit

AFAM chain kit for Cagiva Canyon 600 96-99 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Cagiva Canyon 600 5G 1996-1999

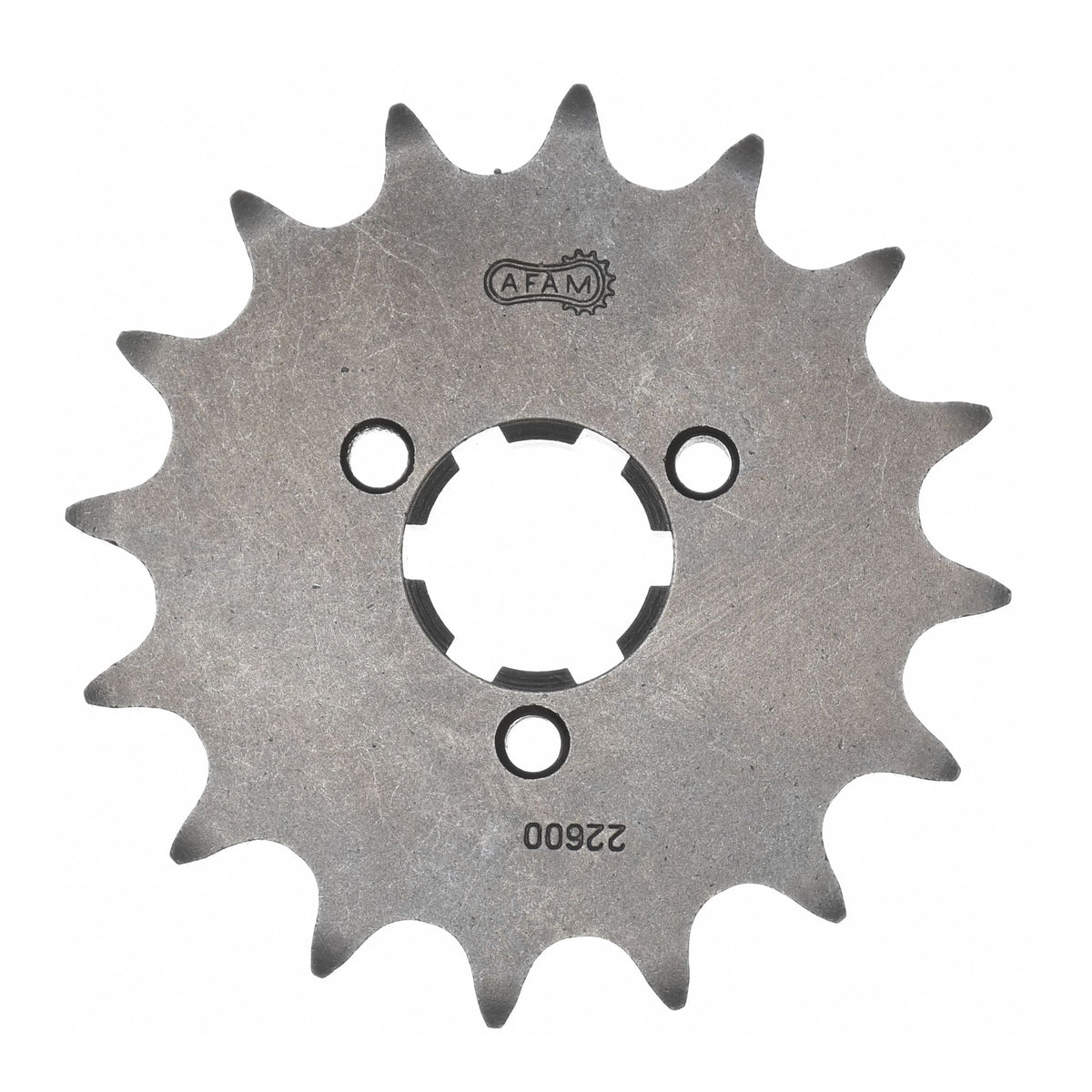

• Front sprocket: AFAM sprocket #520 15 teeth - a22600.15
• Chain: AFAM chain 520 XMR3 Xs-ring 114 with rivet link - a520xmr3.114

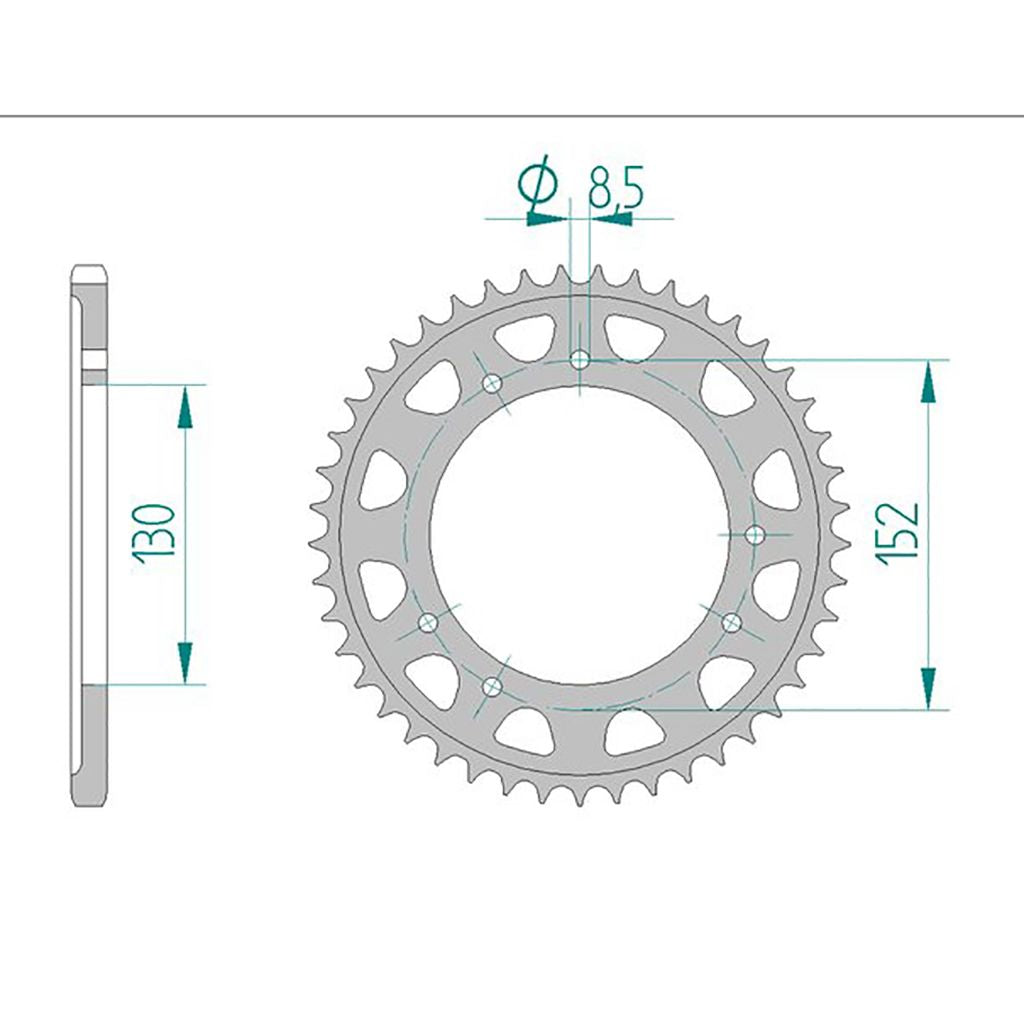

• Rear sprocket: Esjot rear sprocket 44500-45 STEEL #520 45 teeth - a44500.45
• Gear ratio sprocket-chain-rear sprocket: 15-114-45

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-31134

Suitable for

Cagiva 501 - 750 cc Canyon 600 5G 1996
Cagiva 501 - 750 cc Canyon 600 5G 1997
Cagiva 501 - 750 cc Canyon 600 5G 1998
Cagiva 501 - 750 cc Canyon 600 5G 1999
