AFAM chain kit for Cagiva Elefant 750 E Lucky Explorer 94-95 530 XSR2G chain kit

AFAM Chain Kit for Cagiva Elefant 750 E Lucky Explorer 94-95 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Cagiva Elefant 750 E Lucky Explorer 6B 1994-1995

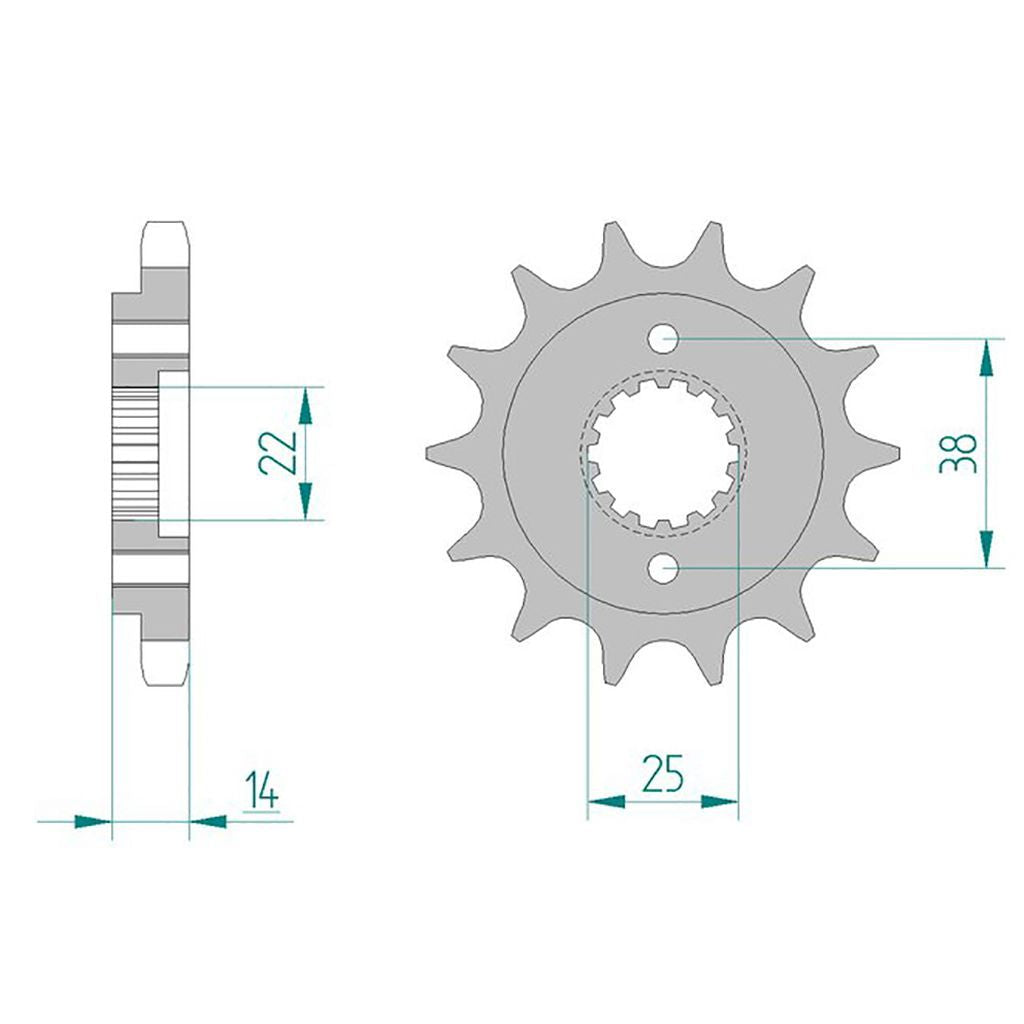

• Front sprocket: AFAM front sprocket #530 15 teeth - a52602.15
• Chain: AFAM chain 530 XSR2-G Xs-ring 108 w. rivet link - a530xsr2.g.108

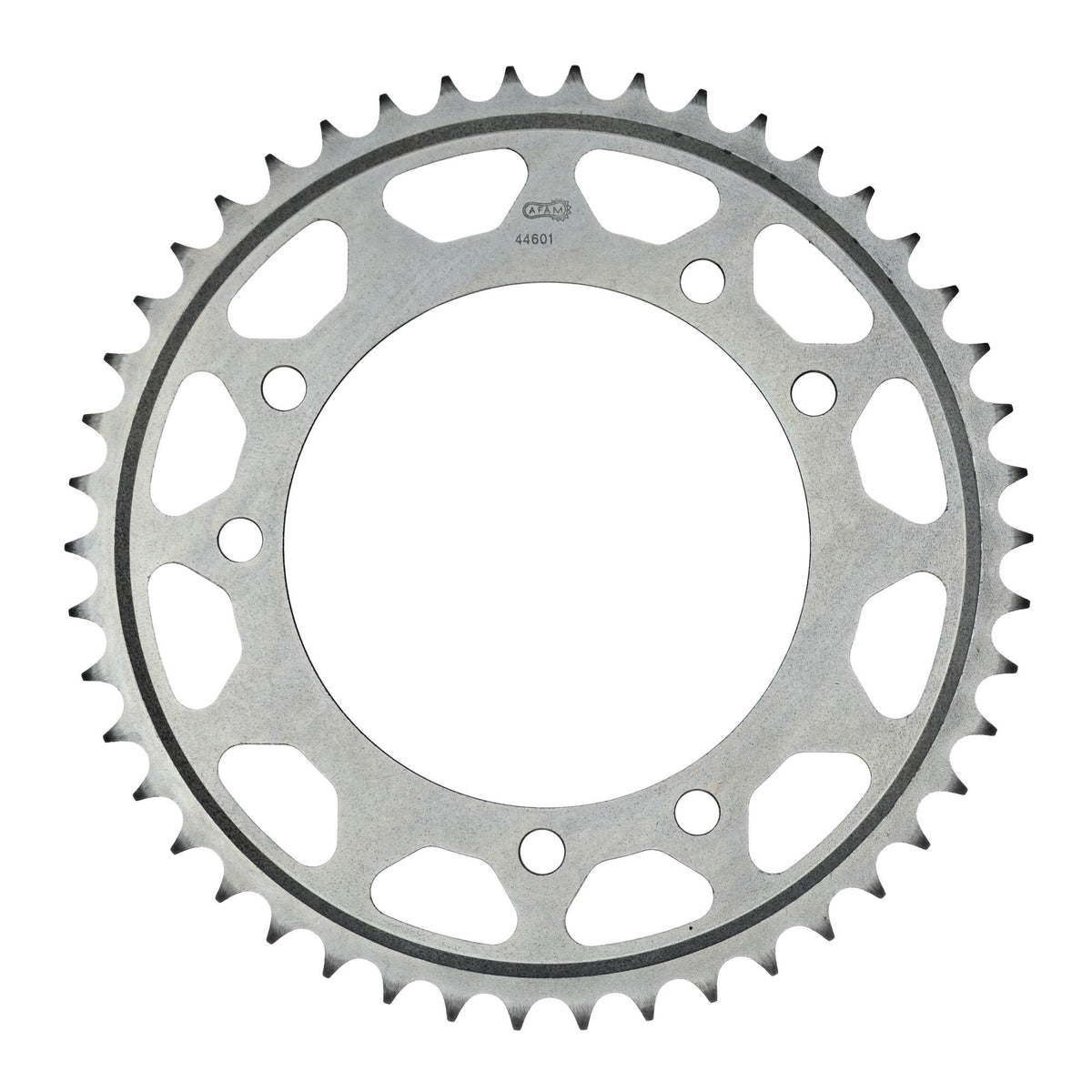

• Rear sprocket: AFAM STEEL rear sprocket #530 46 teeth - a44601.46
• Gear ratio front sprocket-chain-rear sprocket: 15-108-46

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by engine capacity: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-15435

Suitable for

Cagiva 501 - 750 cc Elefant 750 E Lucky Explorer 6B 1994
Cagiva 501 - 750 cc Elefant 750 E Lucky Explorer 6B 1995
