AFAM chain kit for Cagiva Elefant 900 E AC Lucky Explor 93-96 530 XSR2G chain kit

AFAM chain kit for Cagiva Elefant 900 E AC Lucky Explor 93-96 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Cagiva Elefant 900 E AC Lucky Explorer 5B 1993-1996

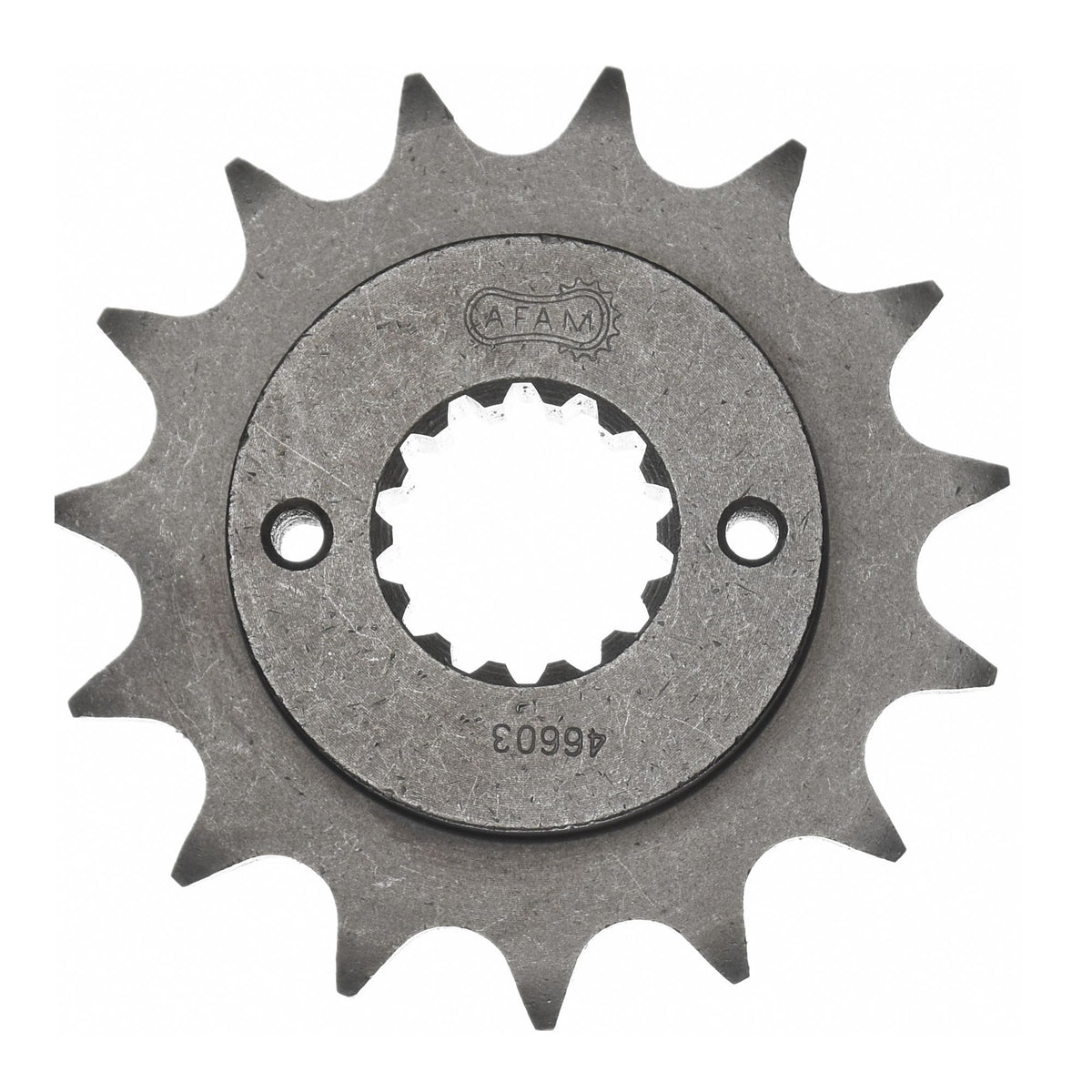

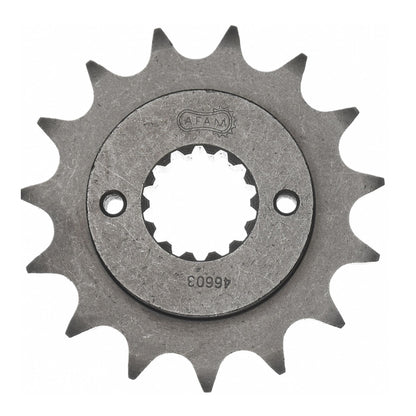

• Sprocket: AFAM sprocket #530 15 teeth - a46603.15
• Chain: AFAM chain 530 XSR2-G Xs-ring 108 w. rivet link - a530xsr2.g.108

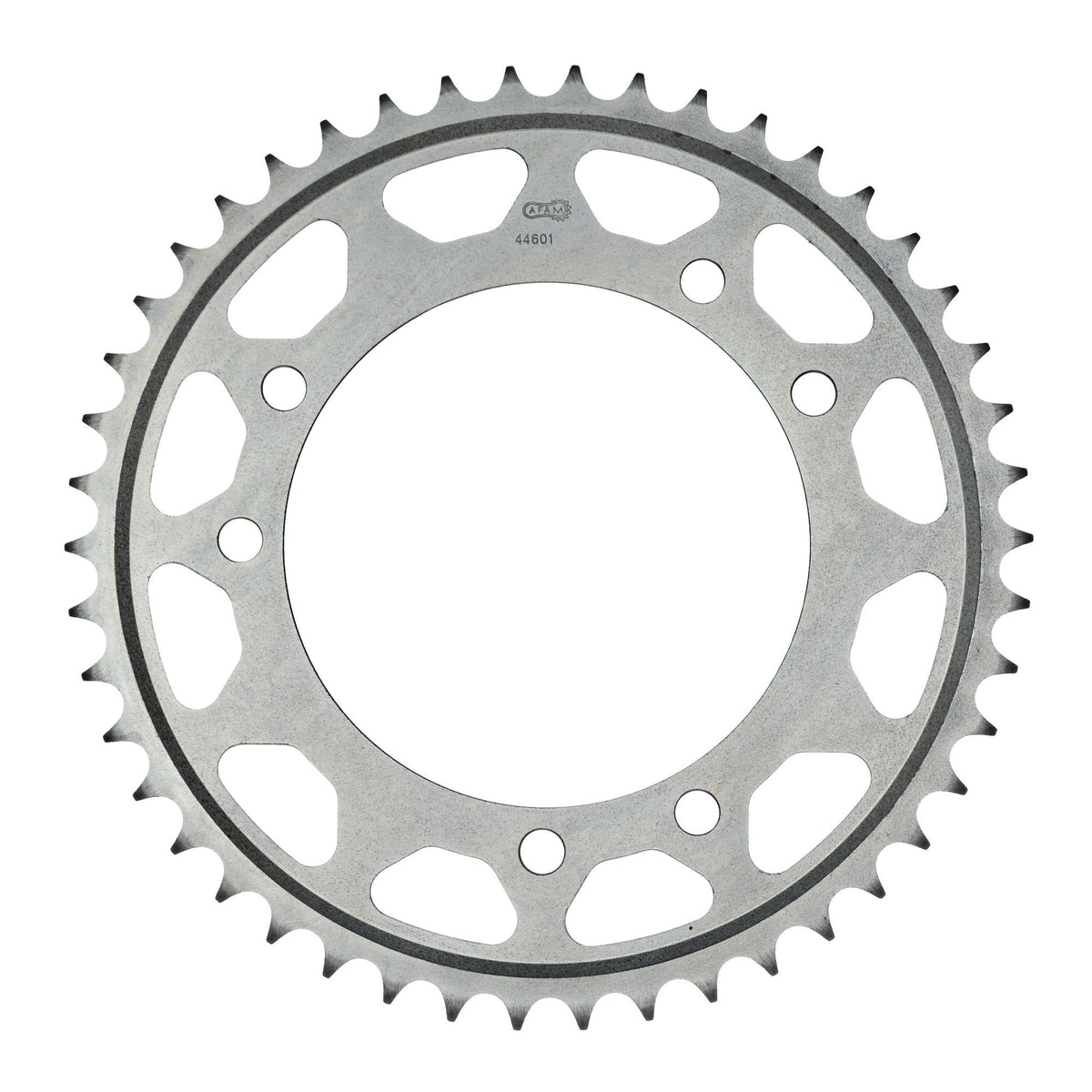

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a44601.46
• Gear ratio sprocket-chain-rear sprocket: 15-108-46

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15436

Suitable for

Cagiva 751 - 1000 cc Elefant 900 E AC Lucky Explorer 5B 1993
Cagiva 751 - 1000 cc Elefant 900 E AC Lucky Explorer 5B 1994
Cagiva 751 - 1000 cc Elefant 900 E AC Lucky Explorer 5B 1995
Cagiva 751 - 1000 cc Elefant 900 E AC Lucky Explorer 5B 1996
