Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Mention of manufacturer is for compatibility purposes only!

Components of the chain kit Cagiva Elefant 900 ie GT 1BE 1991-1993

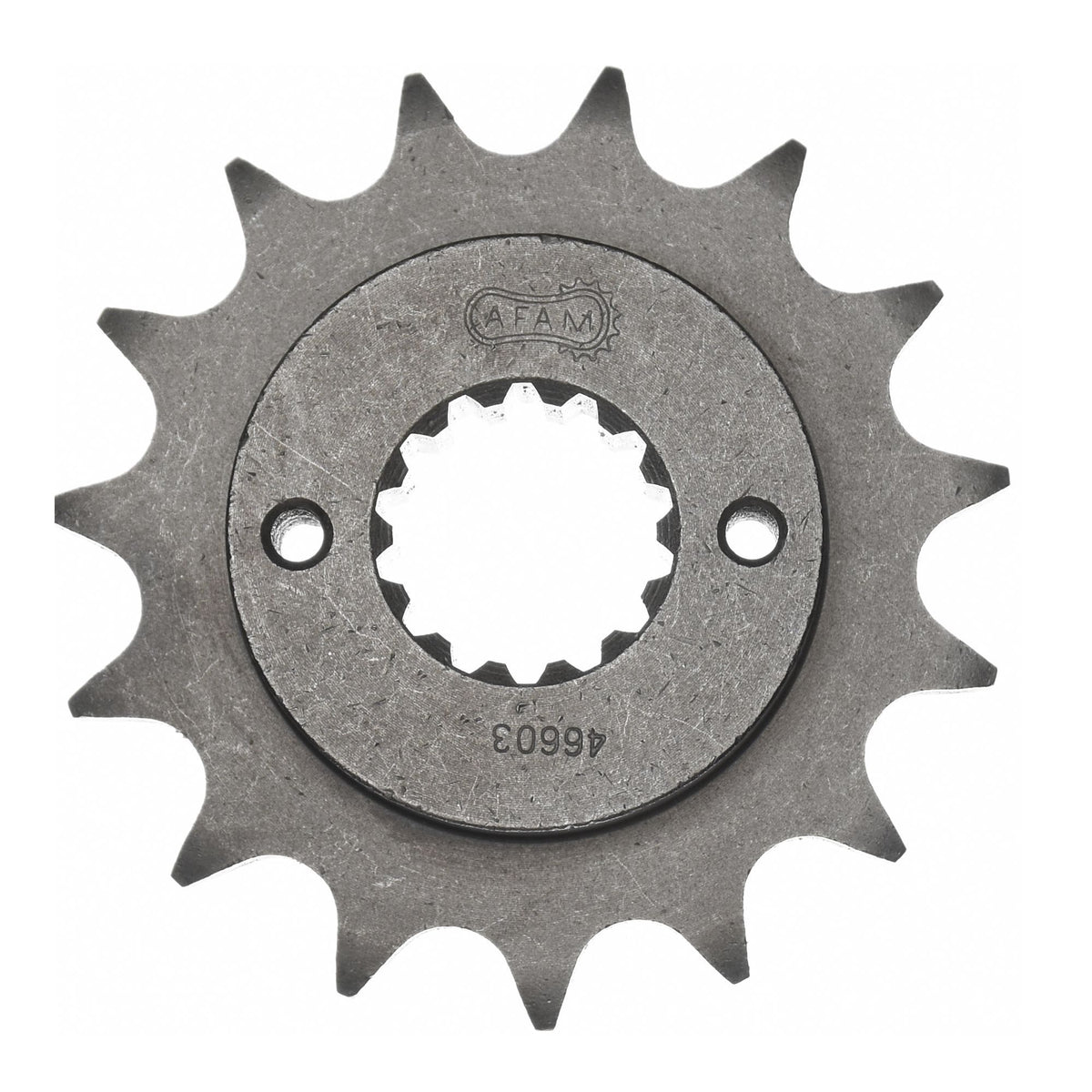

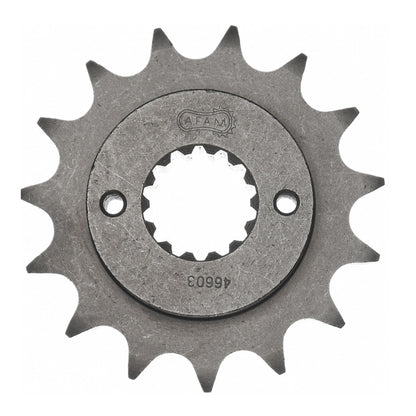

• Front sprocket: AFAM front sprocket #530 15 teeth - a46603.15
• Chain: AFAM chain 530 XSR2-G Xs-ring 110 w. rivet link - a530xsr2.g.110

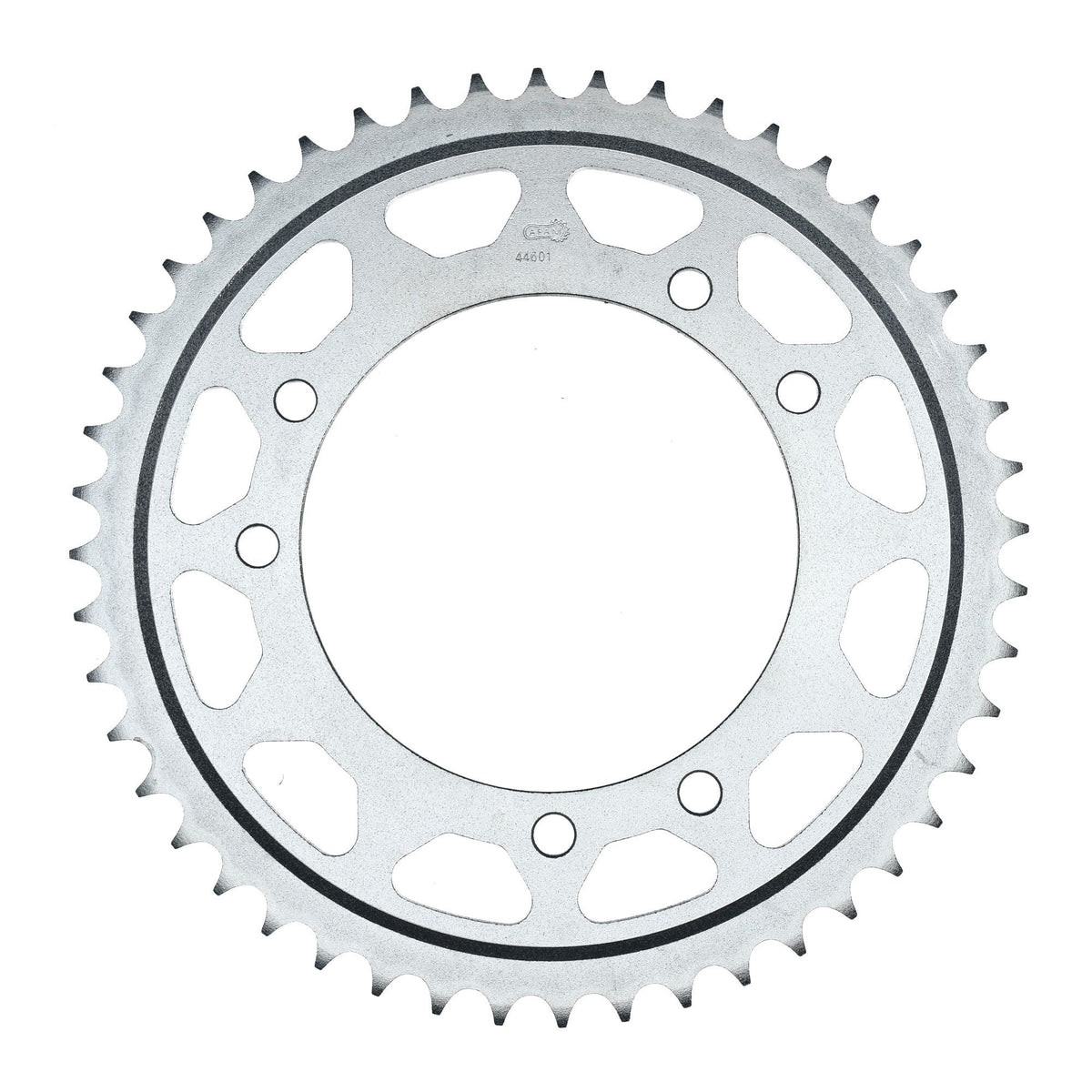

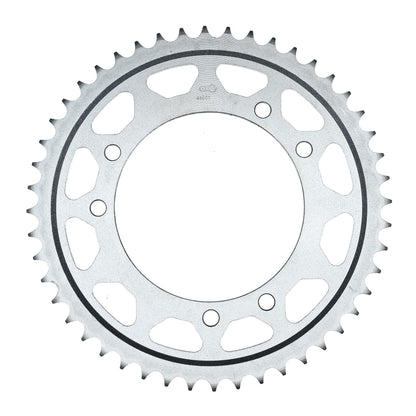

• Rear sprocket: AFAM STEEL rear sprocket #530 48 teeth - a44601.48
• Transmission ratio front sprocket-chain-rear sprocket: 15-110-48

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-15499

Fits

Cagiva 751 - 1000 cc Elefant 900 ie GT 1BE 1991
Cagiva 751 - 1000 cc Elefant 900 ie GT 1BE 1992
Cagiva 751 - 1000 cc Elefant 900 ie GT 1BE 1993
