AFAM chain kit for Cagiva Mito 125 90-92 520 MR2G chain kit

AFAM chain kit for Cagiva Mito 125 90-92 520 MR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - mentions of manufacturers are for compatibility purposes only!

Components of the chain kit Cagiva Mito 125 1990-1992

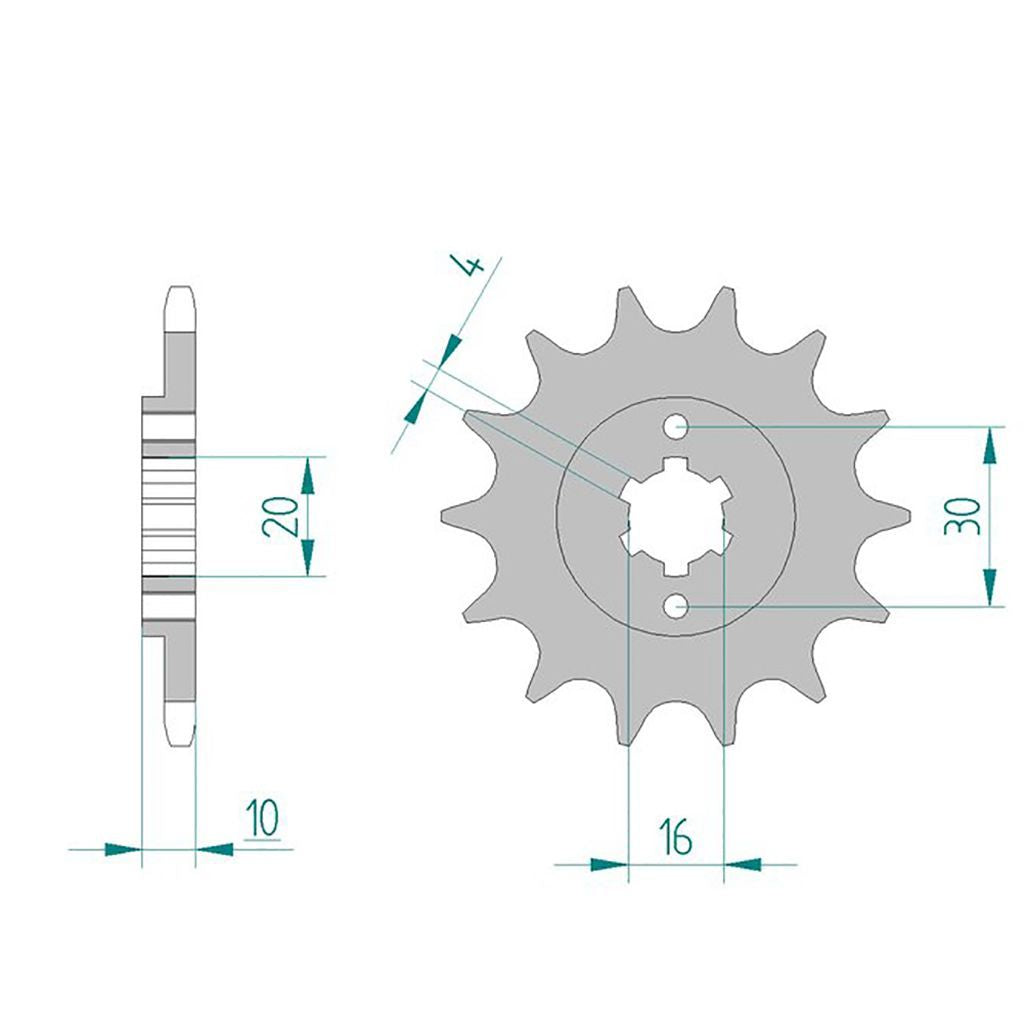

• Front sprocket: AFAM front sprocket #520 14 teeth - a46203.14
• Chain: AFAM chain 520 MR2-G w. clip link - a520mr2.g.116

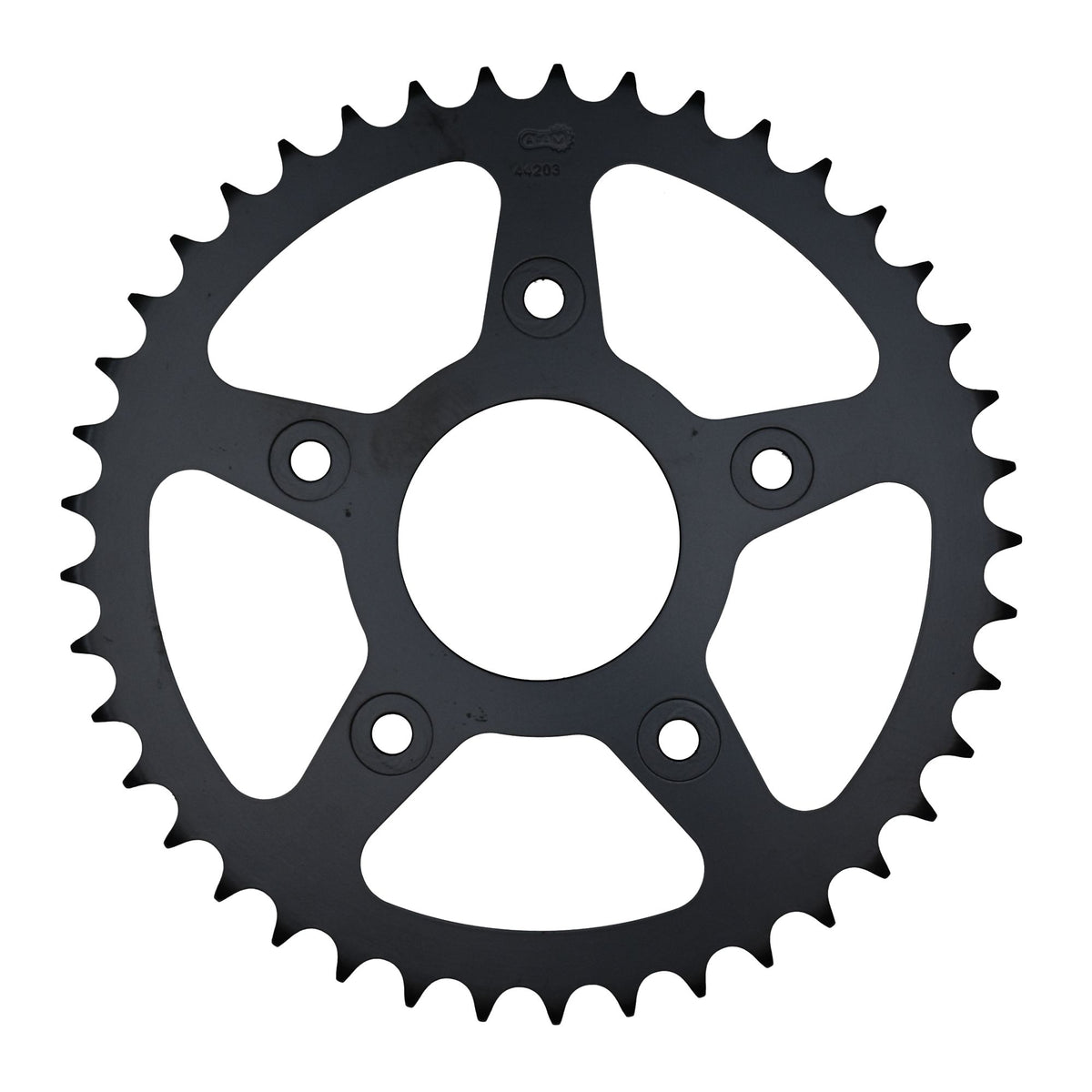

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a44203.43
• Gear ratio front sprocket-chain-rear sprocket: 14-116-43

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15495

Suitable for

Cagiva 101 - 125 cc Mito 125 1990
Cagiva 101 - 125 cc Mito 125 1991
Cagiva 101 - 125 cc Mito 125 1992
