AFAM chain kit for Cagiva Mito 125 SP525 08-09 520 MR2G chain kit

AFAM chain kit for Cagiva Mito 125 SP525 08-09 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification purposes only!

Components of the chain kit Cagiva Mito 125 SP525 N300AB 2008-2009

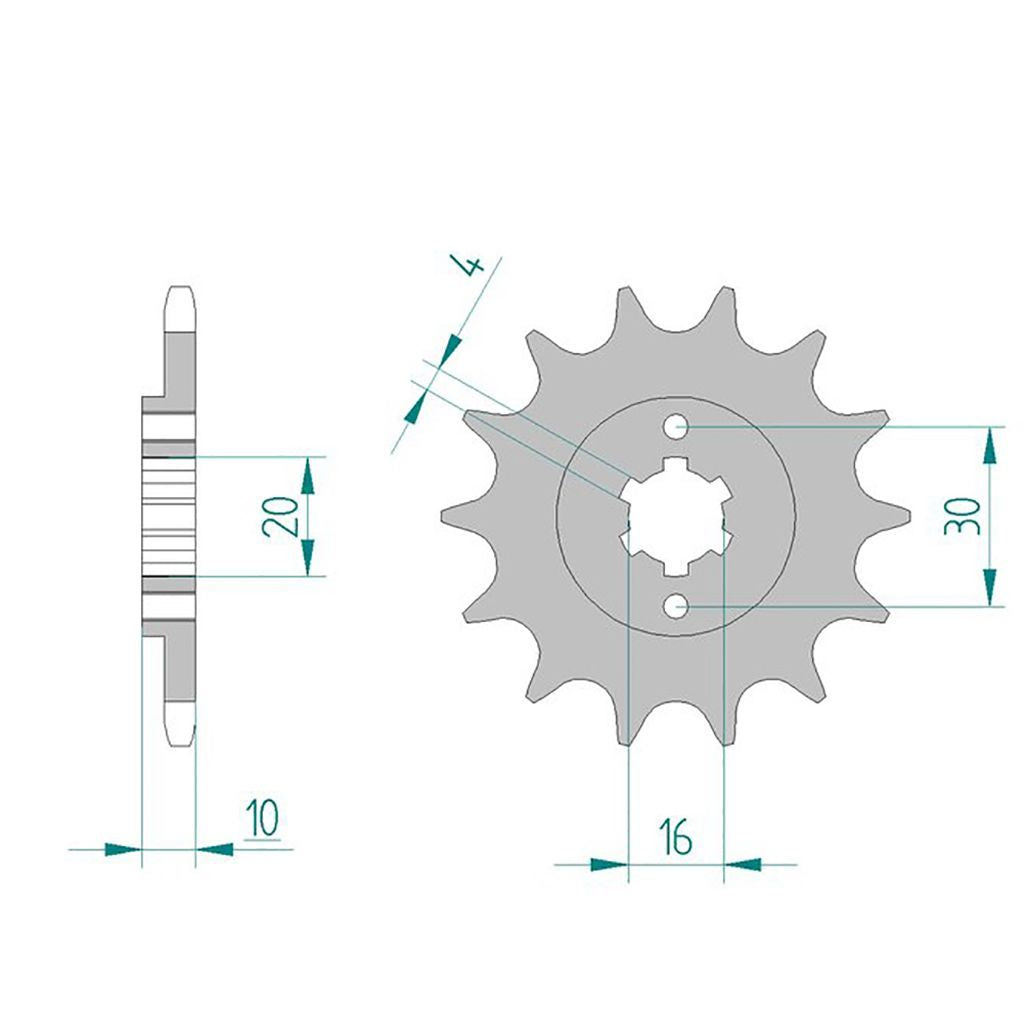

• Sprocket: AFAM sprocket #520 14 teeth - a46203.14
• Chain: AFAM chain 520 MR2-G with clip link - a520mr2.g.116

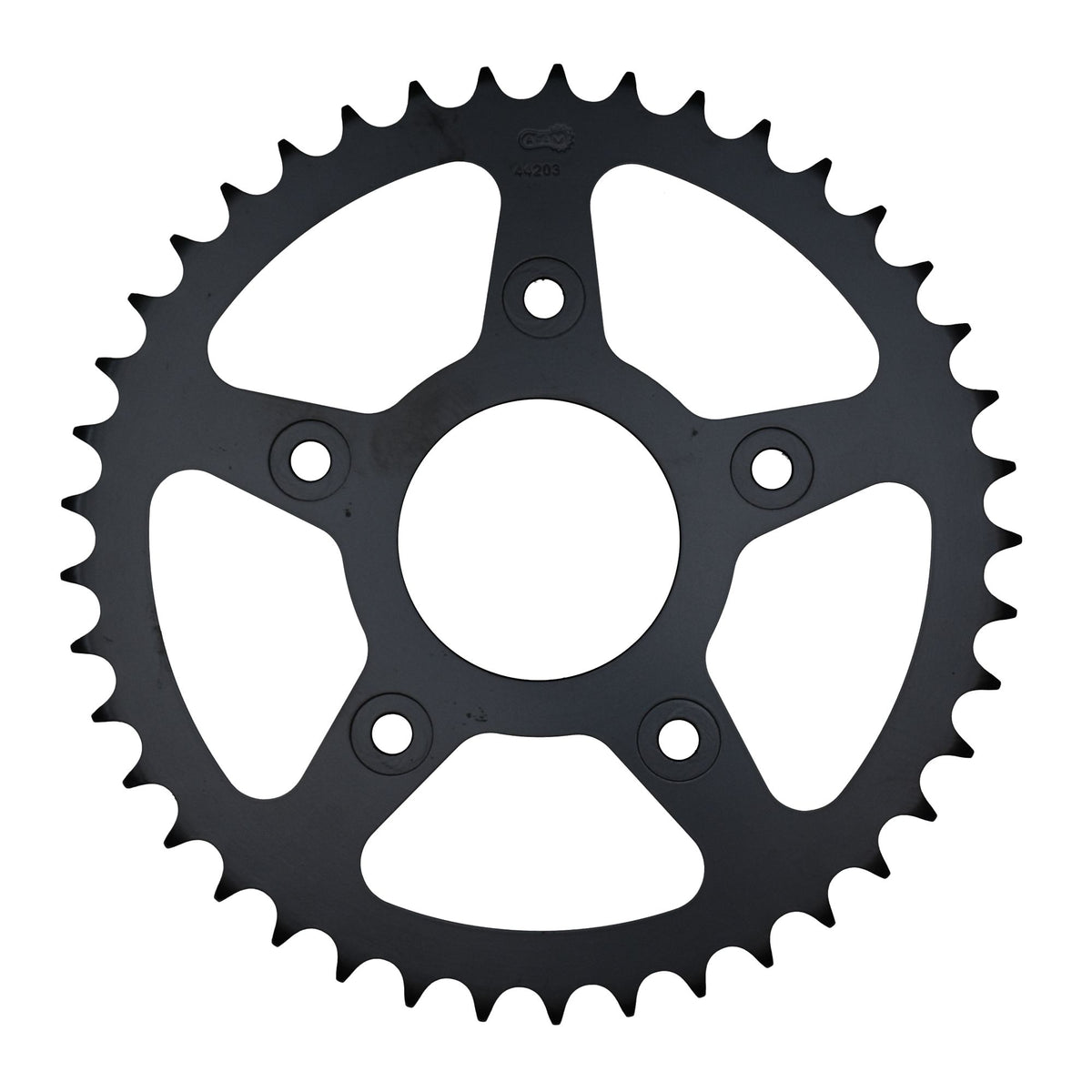

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a44203.43
• Transmission ratio sprocket-chain-rear sprocket: 14-116-43

AFAM 520 MR2-G

Reinforced chain
Without sealing rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road and motocross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15361

Suitable for

Cagiva 101 - 125 cc Mito 125 SP525 N300AB 2008
Cagiva 101 - 125 cc Mito 125 SP525 N300AB 2009
