AFAM chain kit for Cagiva Raptor 1000 00-05 530 XHR2G chain kit

AFAM chain kit for Cagiva Raptor 1000 00-05 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Cagiva Raptor 1000 M200 2000-2005

• Sprocket: AFAM sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 106 with rivet link - a530xhr2.g.106

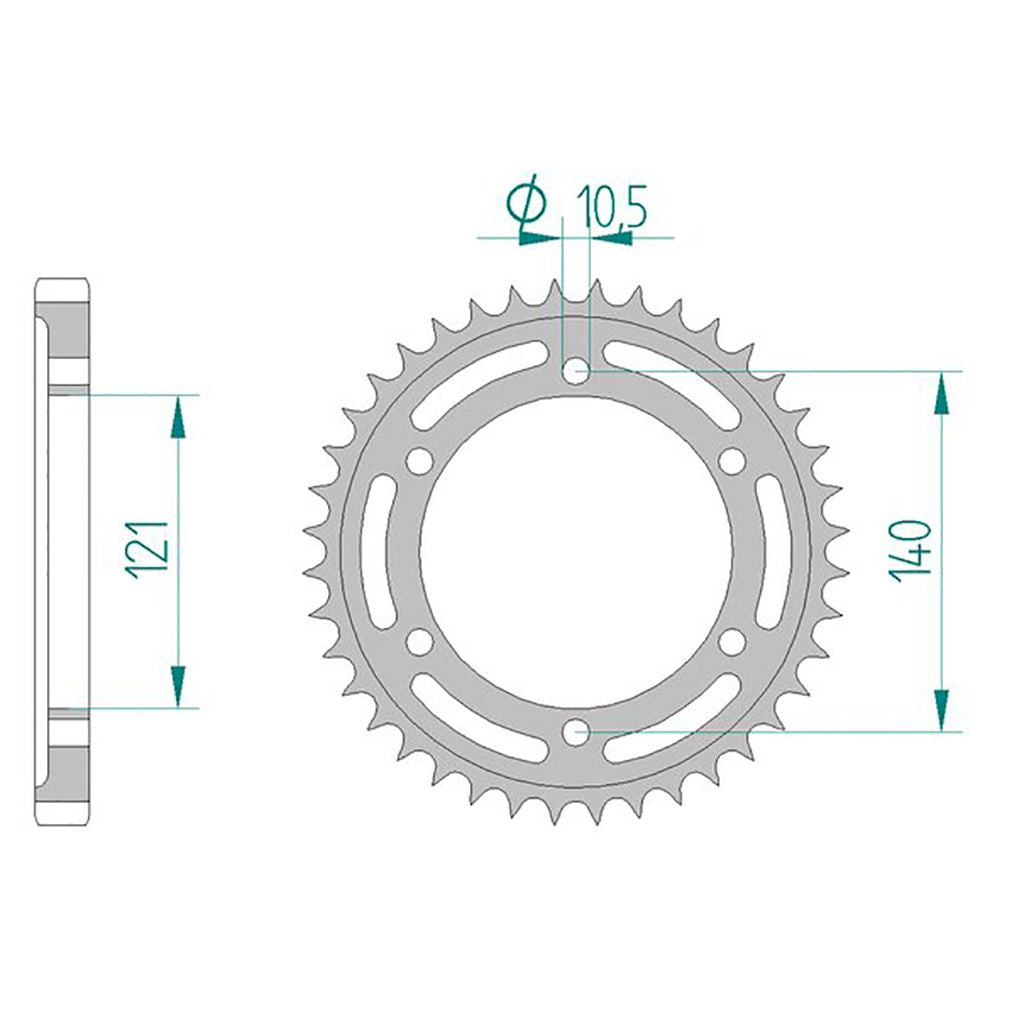

• Rear sprocket: AFAM rear sprocket STEEL #530 40 teeth - a44800.40
• Gear ratio sprocket-chain-rear sprocket: 16-106-40

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-45456

Suitable for

Cagiva 751 - 1000 cc Raptor 1000 M200 2000
Cagiva 751 - 1000 cc Raptor 1000 M200 2001
Cagiva 751 - 1000 cc Raptor 1000 M200 2002
Cagiva 751 - 1000 cc Raptor 1000 M200 2003
Cagiva 751 - 1000 cc Raptor 1000 M200 2004
Cagiva 751 - 1000 cc Raptor 1000 M200 2005
