AFAM chain kit for Cagiva Raptor 1000 00-05 530 XSR2G chain kit

AFAM chain kit for Cagiva Raptor 1000 00-05 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the chain kit Cagiva Raptor 1000 M200 2000-2005

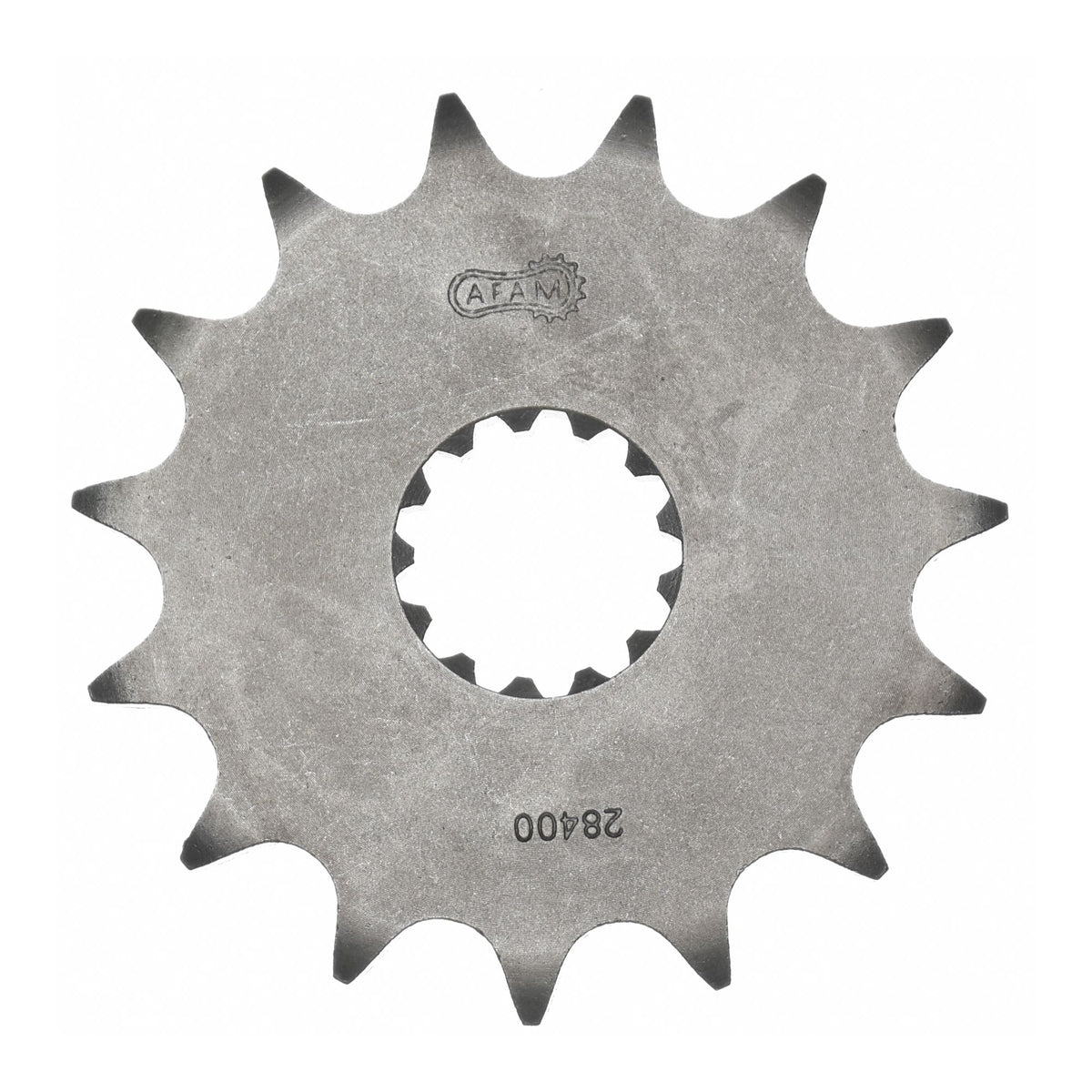

• Sprocket: AFAM sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 106 with rivet link - a530xsr2.g.106

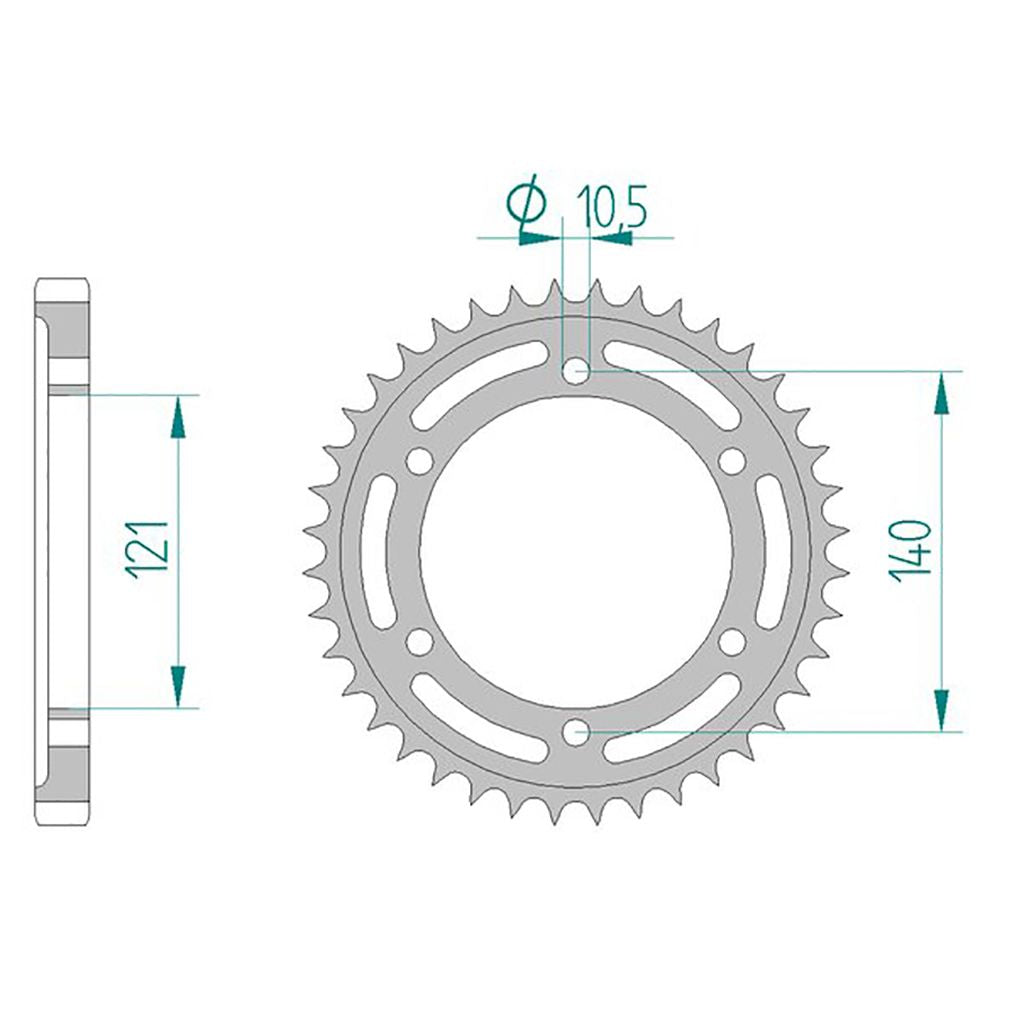

• Rear sprocket: AFAM rear sprocket STEEL #530 40 teeth - a44800.40
• Gear ratio sprocket-chain-rear sprocket: 16-106-40

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Colour: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-15460

Fits

Cagiva 751 - 1000 cc Raptor 1000 M200 2000
Cagiva 751 - 1000 cc Raptor 1000 M200 2001
Cagiva 751 - 1000 cc Raptor 1000 M200 2002
Cagiva 751 - 1000 cc Raptor 1000 M200 2003
Cagiva 751 - 1000 cc Raptor 1000 M200 2004
Cagiva 751 - 1000 cc Raptor 1000 M200 2005
