AFAM chain kit for Cagiva Raptor 650 01-04 525 XSR2G chain kit

AFAM Chain Kit for Cagiva Raptor 650 01-04 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Cagiva Raptor 650 M210 2001-2004 chain kit

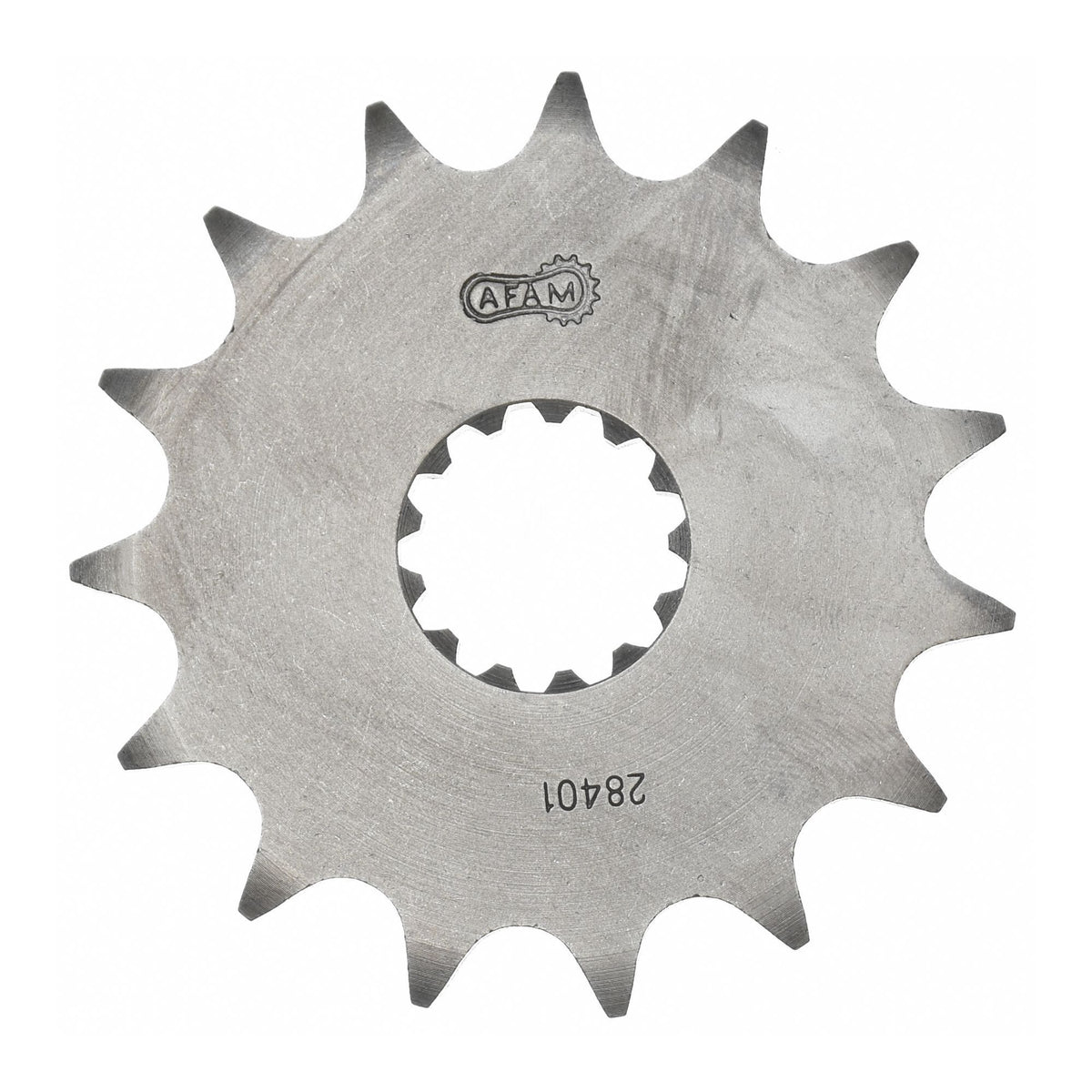

• Front sprocket: AFAM front sprocket #525 15 teeth - a28401.15
• Chain: AFAM chain 525 XSR2-G Xs-Ring 108 with rivet link - a525xsr2.g.108

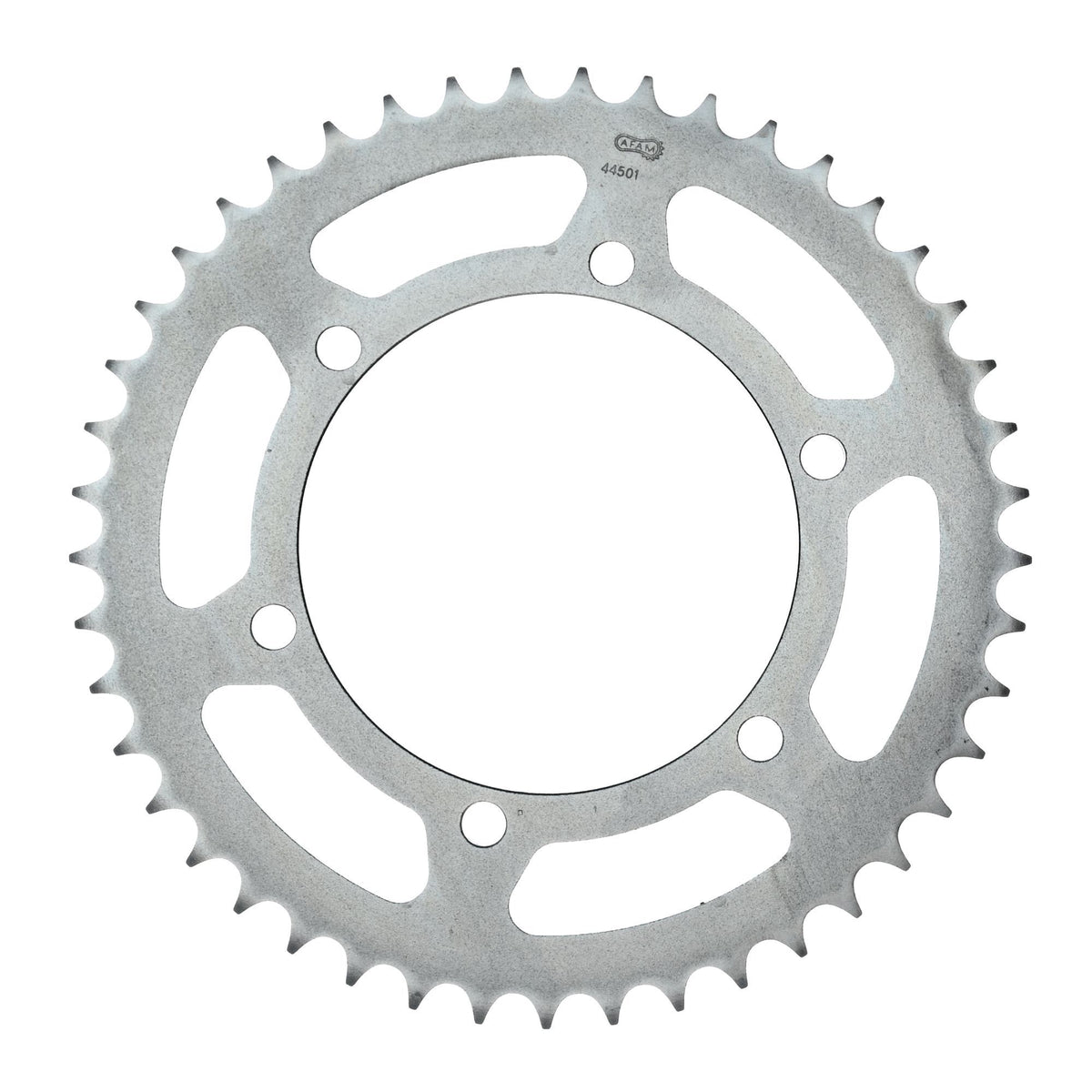

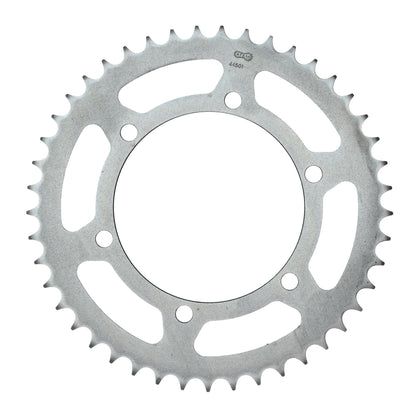

• Rear sprocket: AFAM rear sprocket STEEL #525 45 teeth - a44501.45
• Gear ratio front sprocket-chain-rear sprocket: 15-108-45

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-10071

Fits

Cagiva 501 - 750 cc Raptor 650 M210 2001
Cagiva 501 - 750 cc Raptor 650 M210 2002
Cagiva 501 - 750 cc Raptor 650 M210 2003
Cagiva 501 - 750 cc Raptor 650 M210 2004
