AFAM chain kit for Cagiva Supercity 125 92-93 520 MR2G chain kit

AFAM Chain Kit for Cagiva Supercity 125 92-93 520 MR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Chain Kit for Cagiva Supercity 125 2F 1992-1993

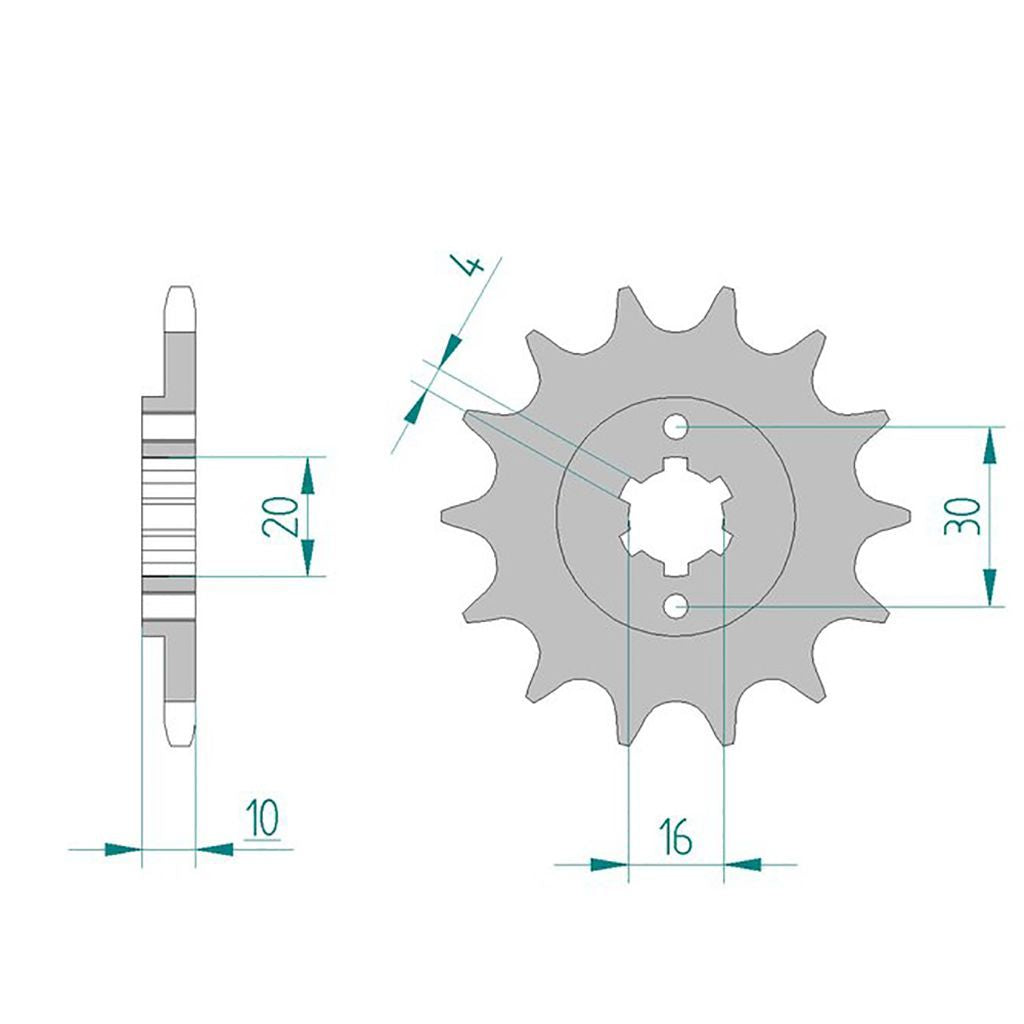

• Front sprocket: AFAM front sprocket #520 13 teeth - a46203.13
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.112

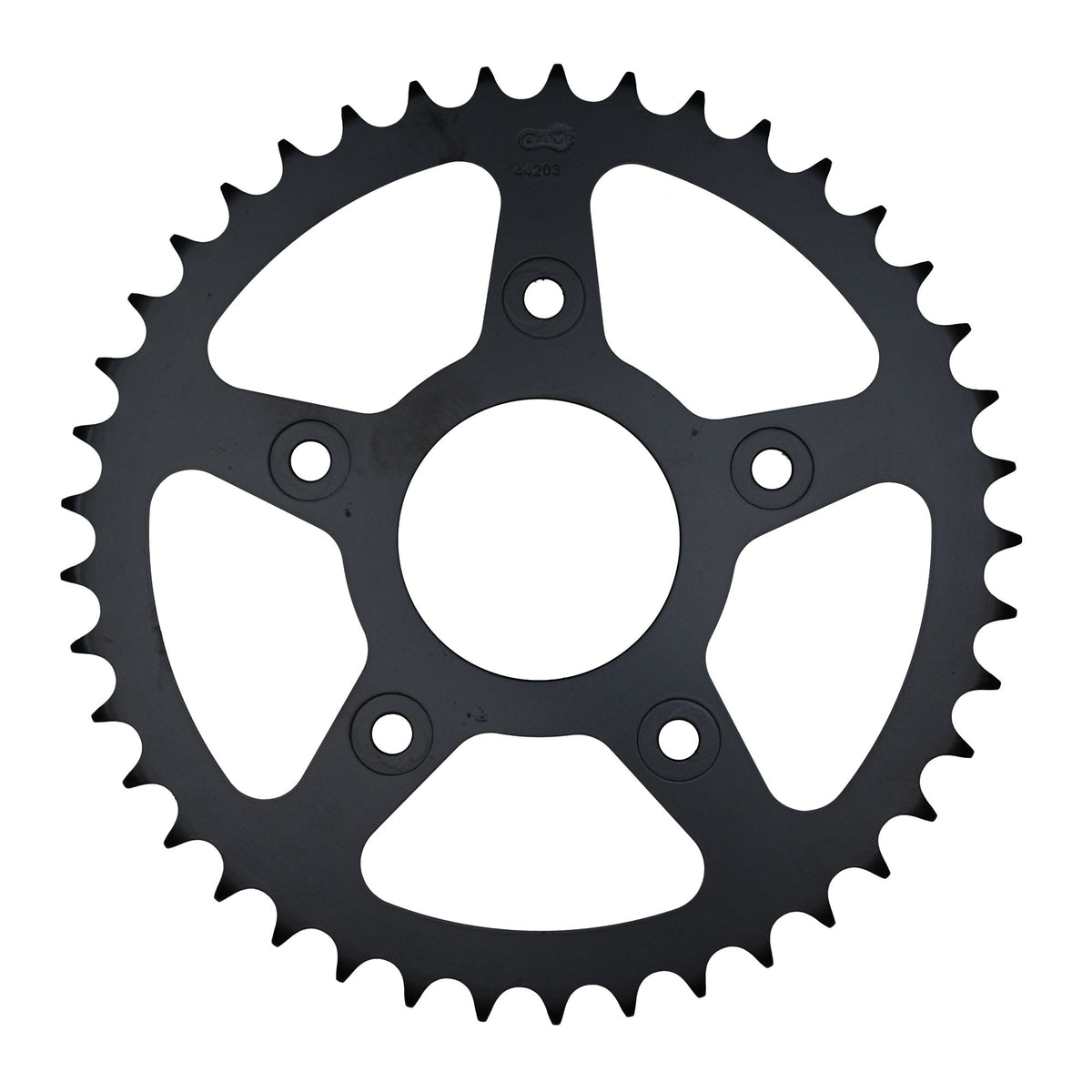

• Rear sprocket: AFAM rear sprocket STEEL #520 42 teeth - a44203.42
• Gear ratio front sprocket-chain-rear sprocket: 13-112-42

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by engine displacement: up to 250 cc / street, off-road, and motocross

Technical specifications:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-15477

Suitable for

Cagiva 101 - 125 cc Supercity 125 2F 1992
Cagiva 101 - 125 cc Supercity 125 2F 1993
