AFAM chain kit for Cagiva Supercity 125 94-96 520 M chain kit

AFAM chain kit for Cagiva Supercity 125 94-96 520 M chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Cagiva Supercity 125 1994-1996

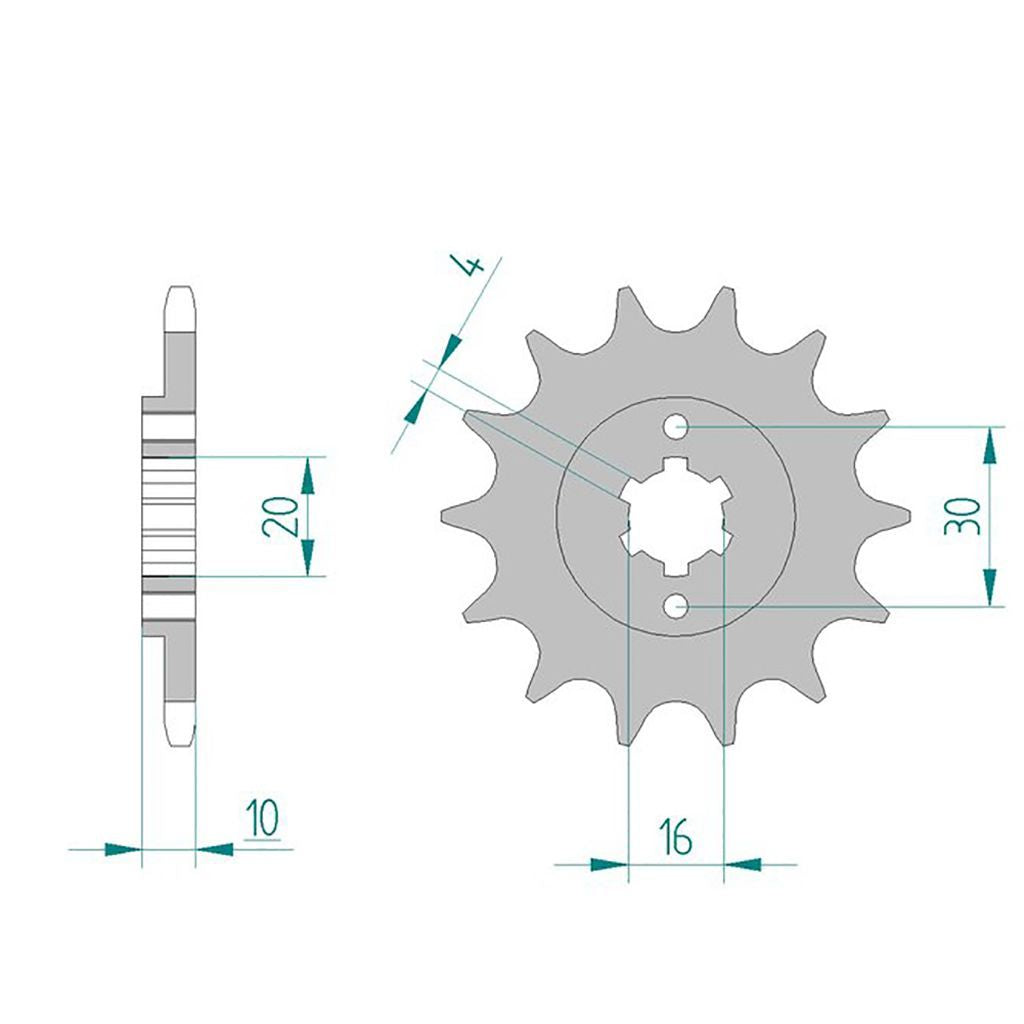

• Front sprocket: AFAM front sprocket #520 13 teeth - a46203.13
• Chain: AFAM chain 520 M 112 with clip link - a520m.112

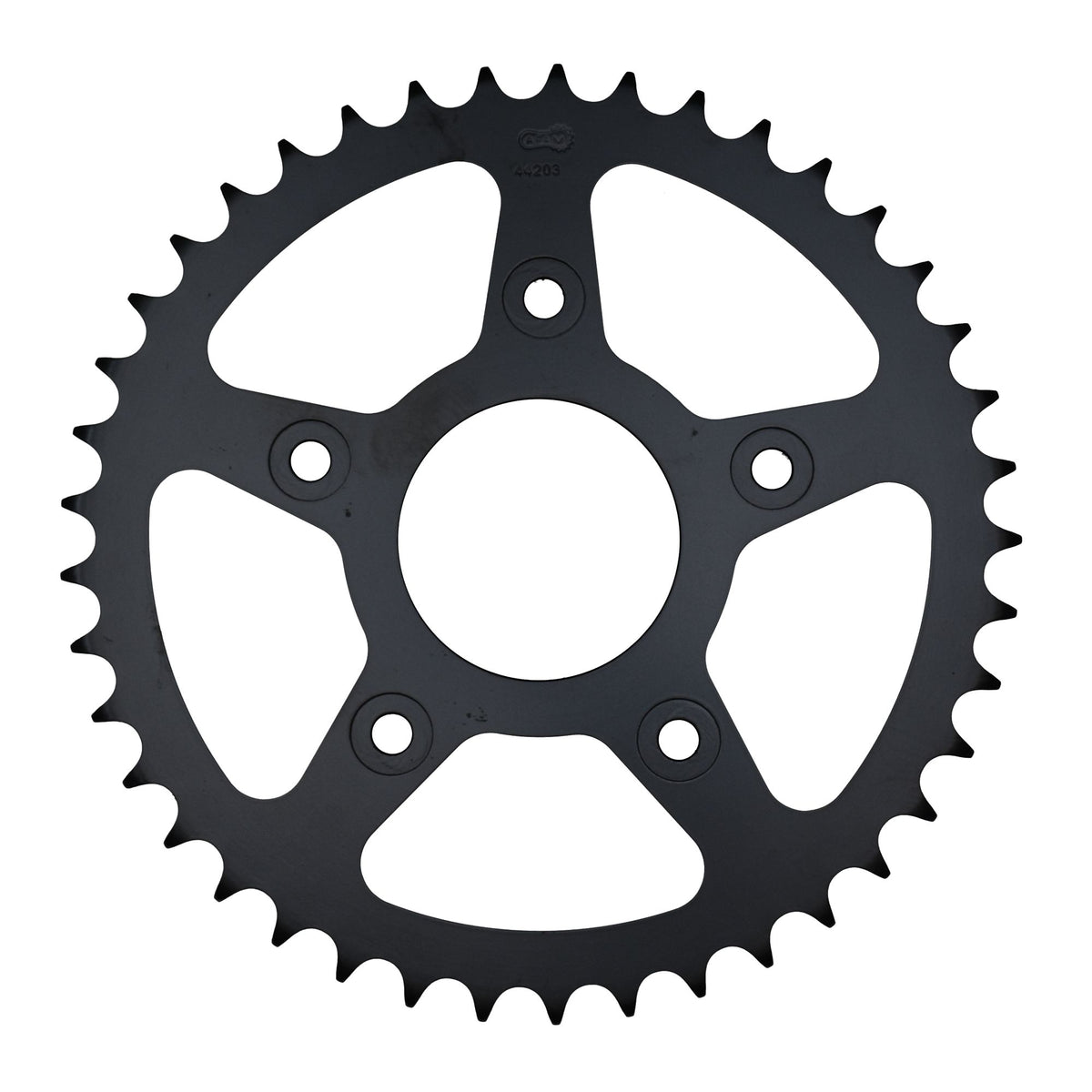

• Rear sprocket: AFAM rear sprocket STEEL #520 42 teeth - a44203.42
• Gear ratio front sprocket-chain-rear sprocket: 13-112-42

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by engine displacement: up to 250 cc / street and off-road

Technical specifications:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15521

Suitable for

Cagiva 101 - 125 cc Supercity 125 1994
Cagiva 101 - 125 cc Supercity 125 1995
Cagiva 101 - 125 cc Supercity 125 1996
