AFAM chain kit for Cagiva Supercity 125 97-99 520 M chain kit

AFAM Chain kit for Cagiva Supercity 125 97-99 520 M chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Cagiva Supercity 125 N200AA 1997-1999

• Front sprocket: AFAM front sprocket #520 13 teeth - a46203.13

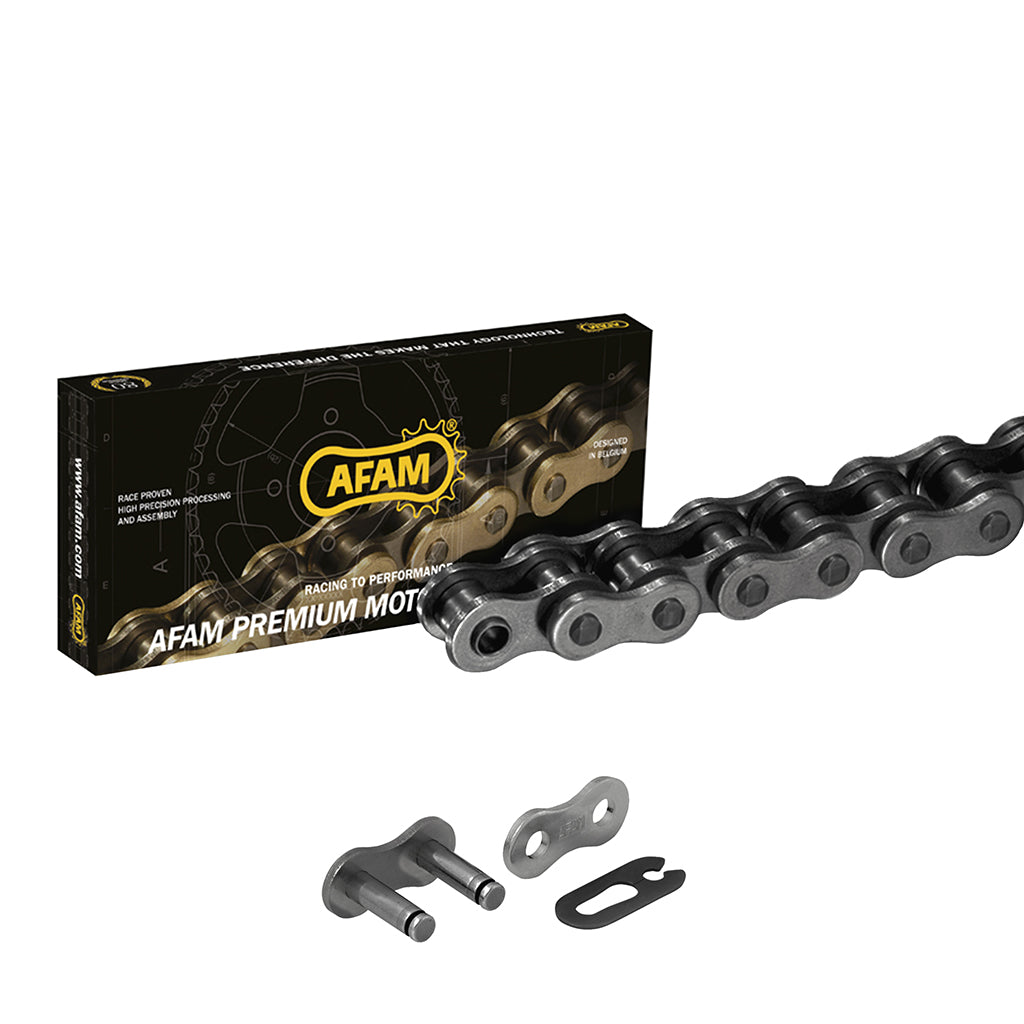

• Chain: AFAM chain 520 M 112 with clip master link - a520m.112

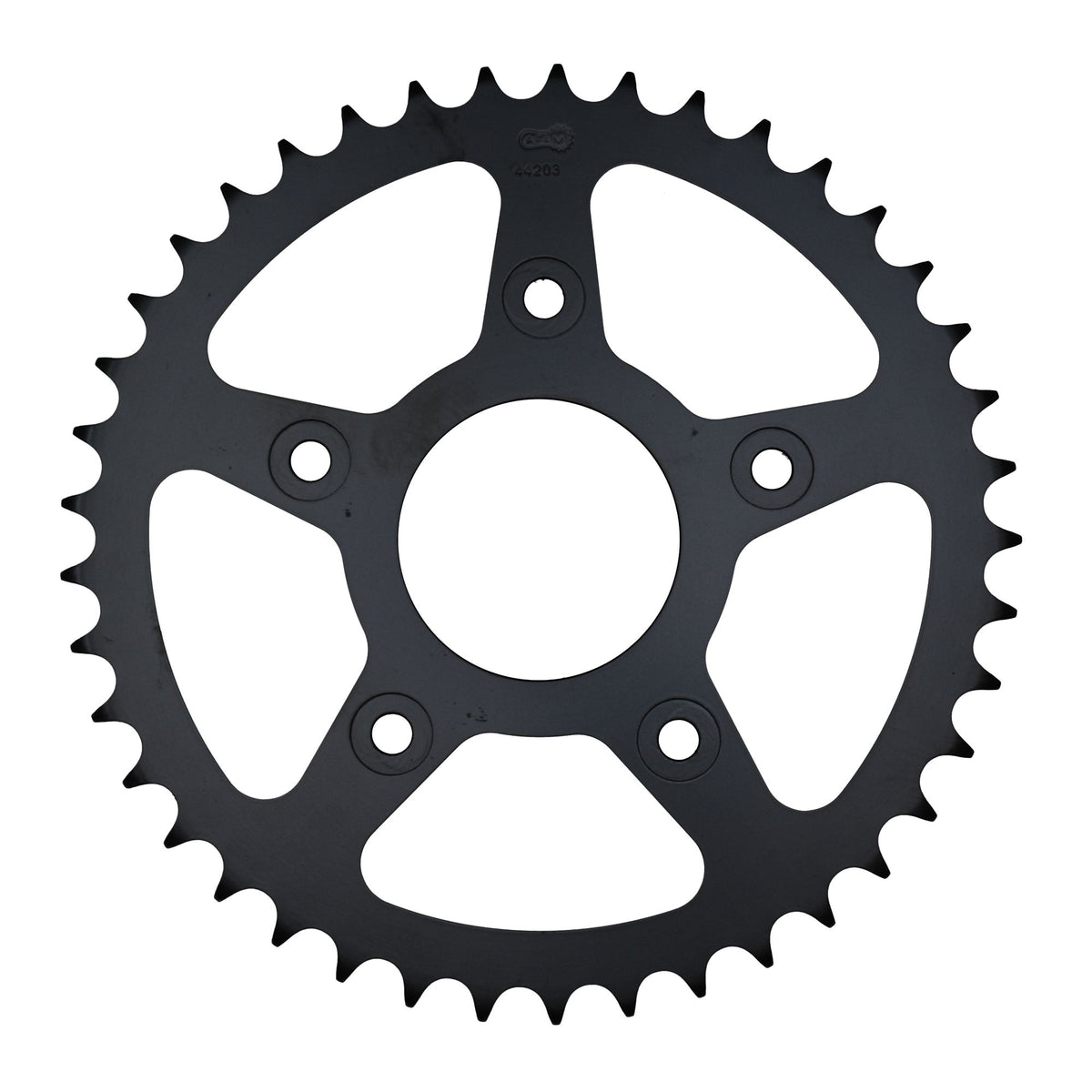

• Rear sprocket: AFAM steel rear sprocket #520 42 teeth - a44203.42
• Transmission ratio front sprocket-chain-rear sprocket: 13-112-42

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / street and off-road

Technical data:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15525

Fits

Cagiva 101 - 125 ccm Supercity 125 N200AA 1997
Cagiva 101 - 125 ccm Supercity 125 N200AA 1998
Cagiva 101 - 125 ccm Supercity 125 N200AA 1999
