AFAM chain kit for Cagiva V-Raptor 1000 00-05 530 XHR2G chain kit

AFAM Chain Kit for Cagiva V-Raptor 1000 00-05 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Cagiva V-Raptor 1000 M200 2000-2005

• Sprocket: AFAM sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 106 with rivet link - a530xhr2.g.106

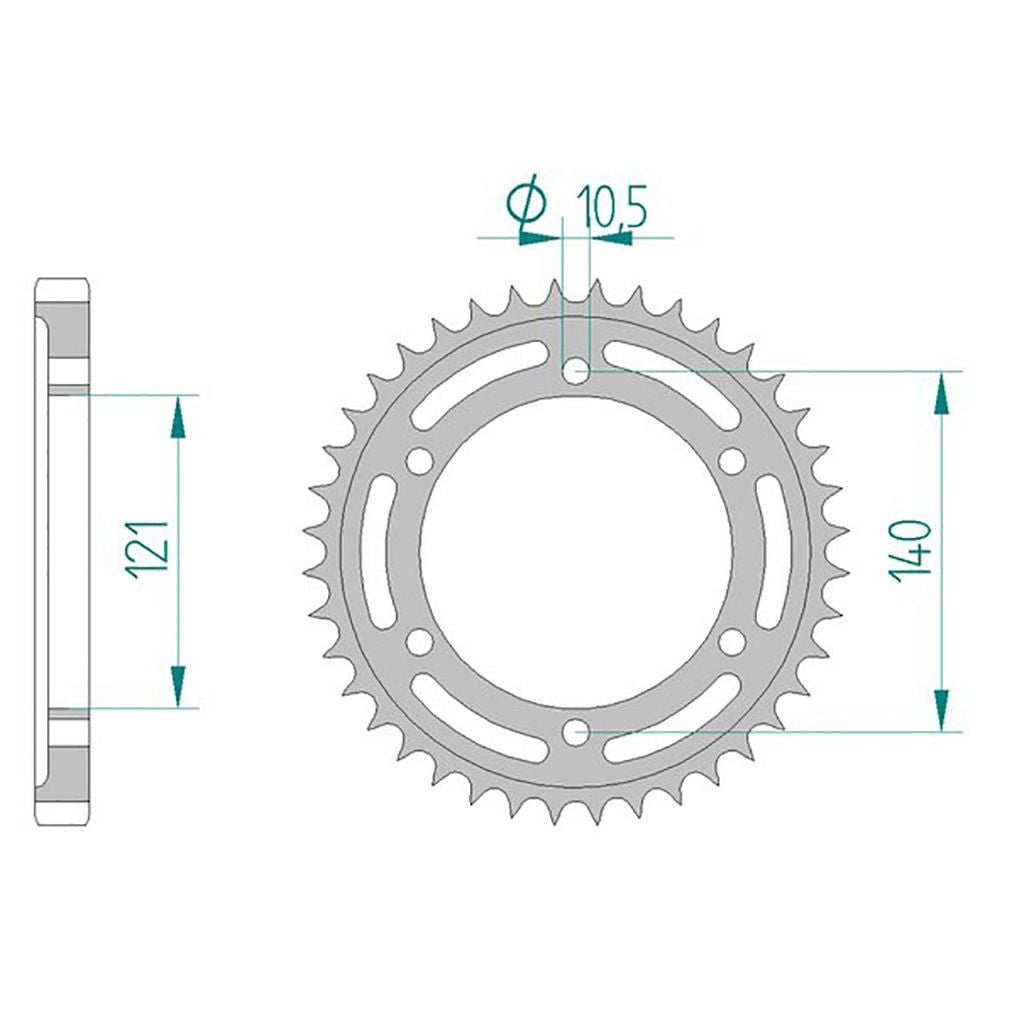

• Chain wheel: AFAM chain wheel STEEL #530 40 teeth - a44800.40
• Gear ratio sprocket-chain-chain wheel: 16-106-40

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-45458

Suitable for

Cagiva 751 - 1000 cc V-Raptor 1000 M200 2000
Cagiva 751 - 1000 cc V-Raptor 1000 M200 2001
Cagiva 751 - 1000 cc V-Raptor 1000 M200 2002
Cagiva 751 - 1000 cc V-Raptor 1000 M200 2003
Cagiva 751 - 1000 cc V-Raptor 1000 M200 2004
Cagiva 751 - 1000 cc V-Raptor 1000 M200 2005
