AFAM chain kit for Cagiva W16 600 Lucky Explorer 1994 520 XSRG chain kit

AFAM Chain Kit for Cagiva W16 600 Lucky Explorer 1994 520 XSRG Chain Kit

Chain kit or chain set for the designated model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Cagiva W16 600 Lucky Explorer 2G 1994-1994

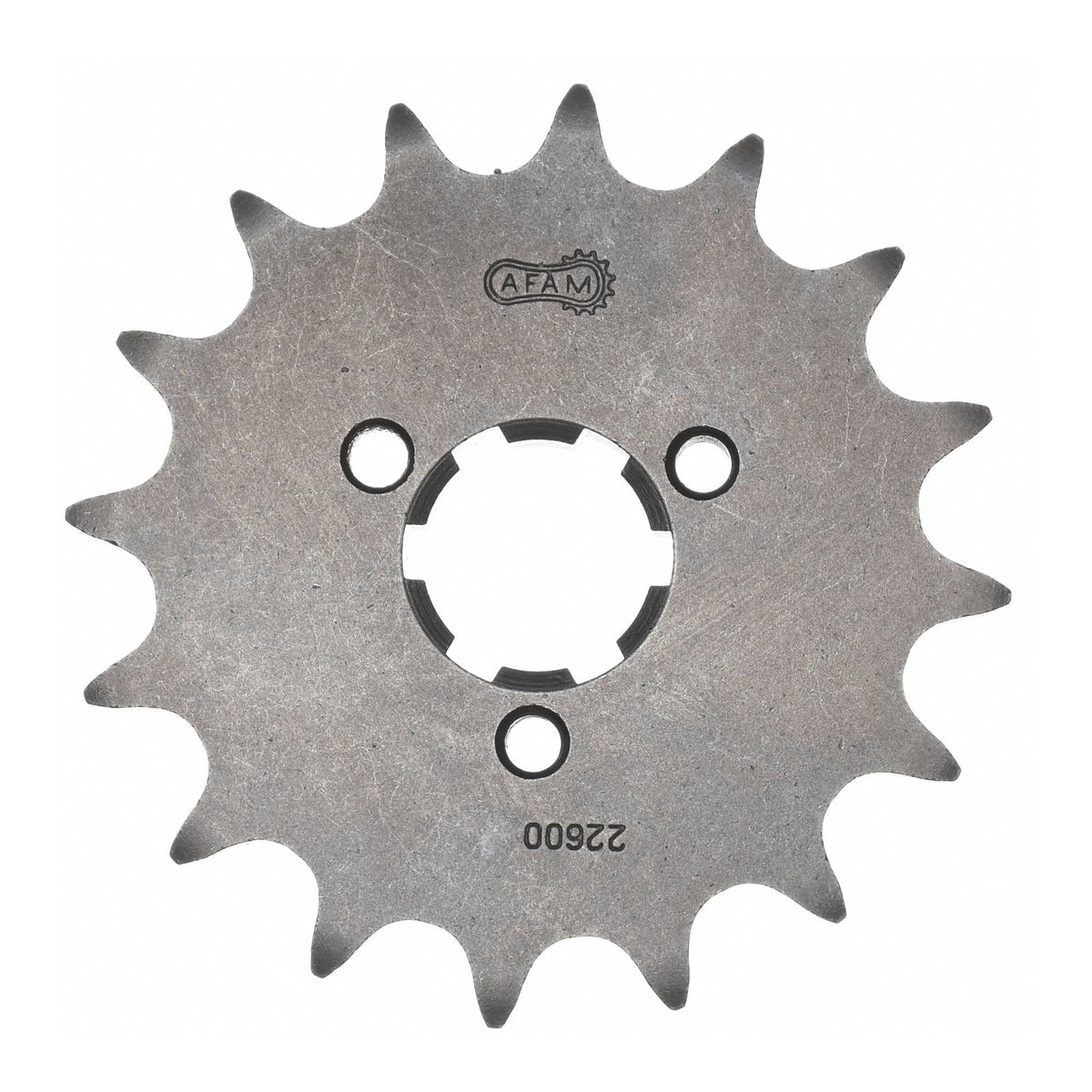

• Front sprocket: AFAM front sprocket #520 16 teeth - a22600.16
• Chain: AFAM chain 520 XSR-G XS-ring 116 with rivet link - a520xsr.g.116

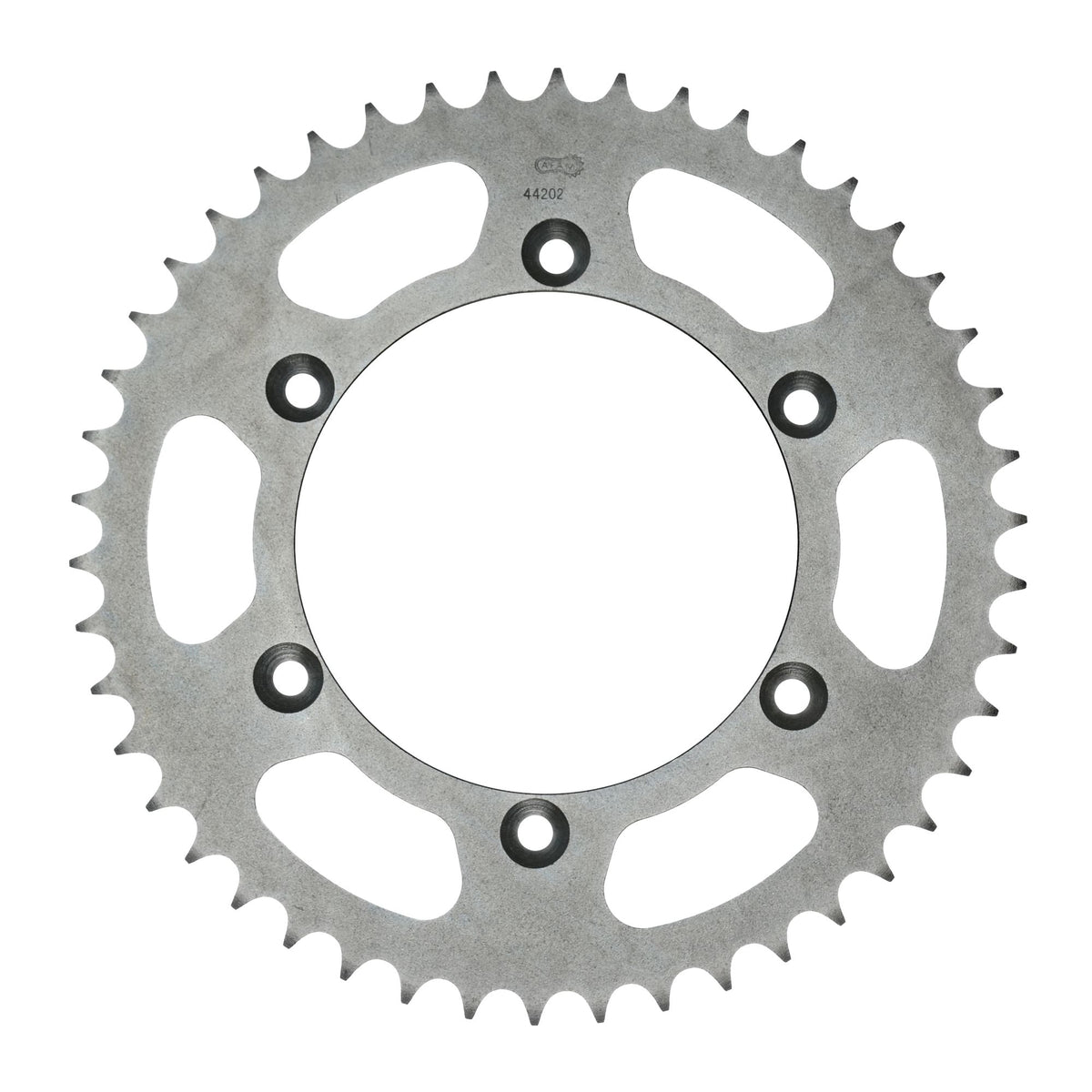

• Rear sprocket: AFAM rear sprocket STEEL #520 44 teeth - a44202.44
• Gear ratio sprocket-chain-rear sprocket: 16-116-44

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
XS-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport, and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15443

Suitable for

Cagiva 501 - 750 cc W16 600 Lucky Explorer 2G 1994
