AFAM chain kit for Cagiva W8 125 92-95 520 MR2G chain kit

AFAM chain kit for Cagiva W8 125 92-95 520 MR2G chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Cagiva W8 125 9PE 1992-1995

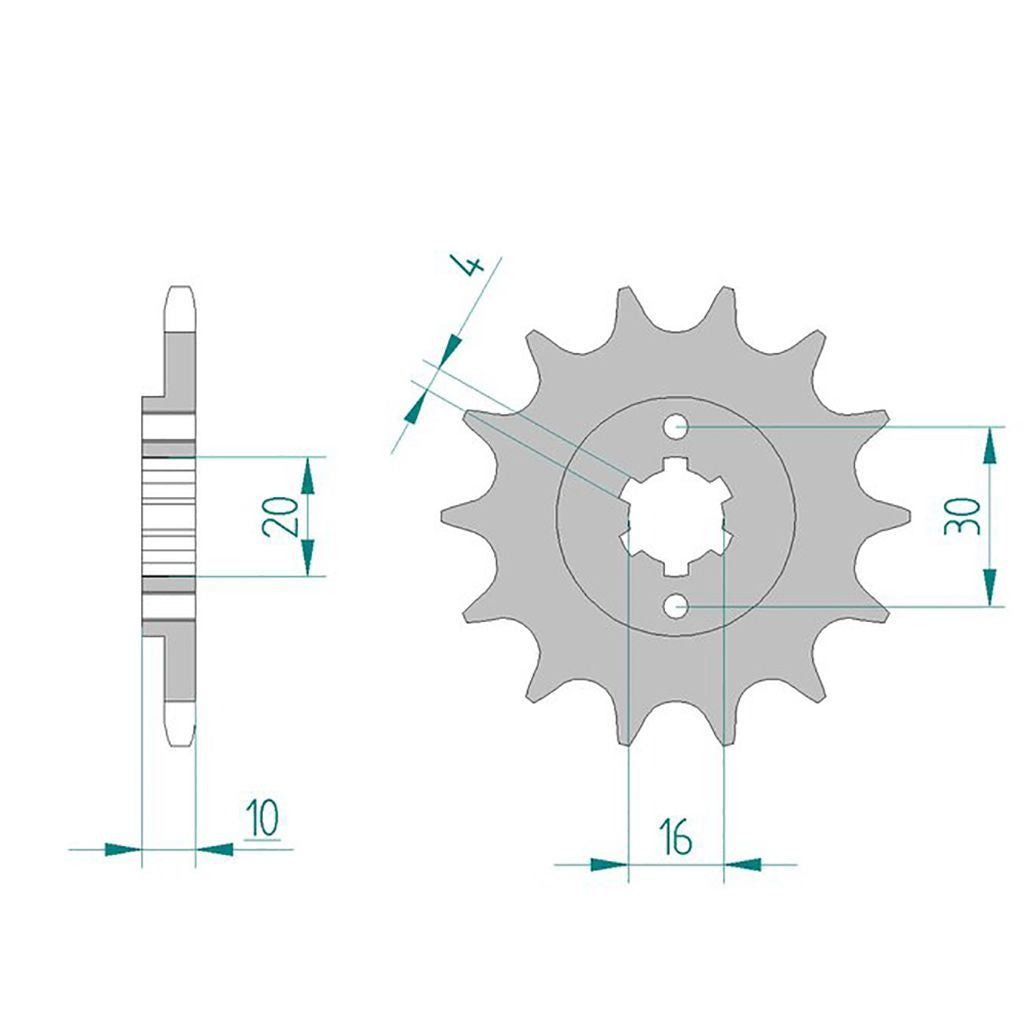

• Sprocket: AFAM sprocket #520 13 teeth - a46203.13
• Chain: AFAM chain 520 MR2-G w. clip link - a520mr2.g.108

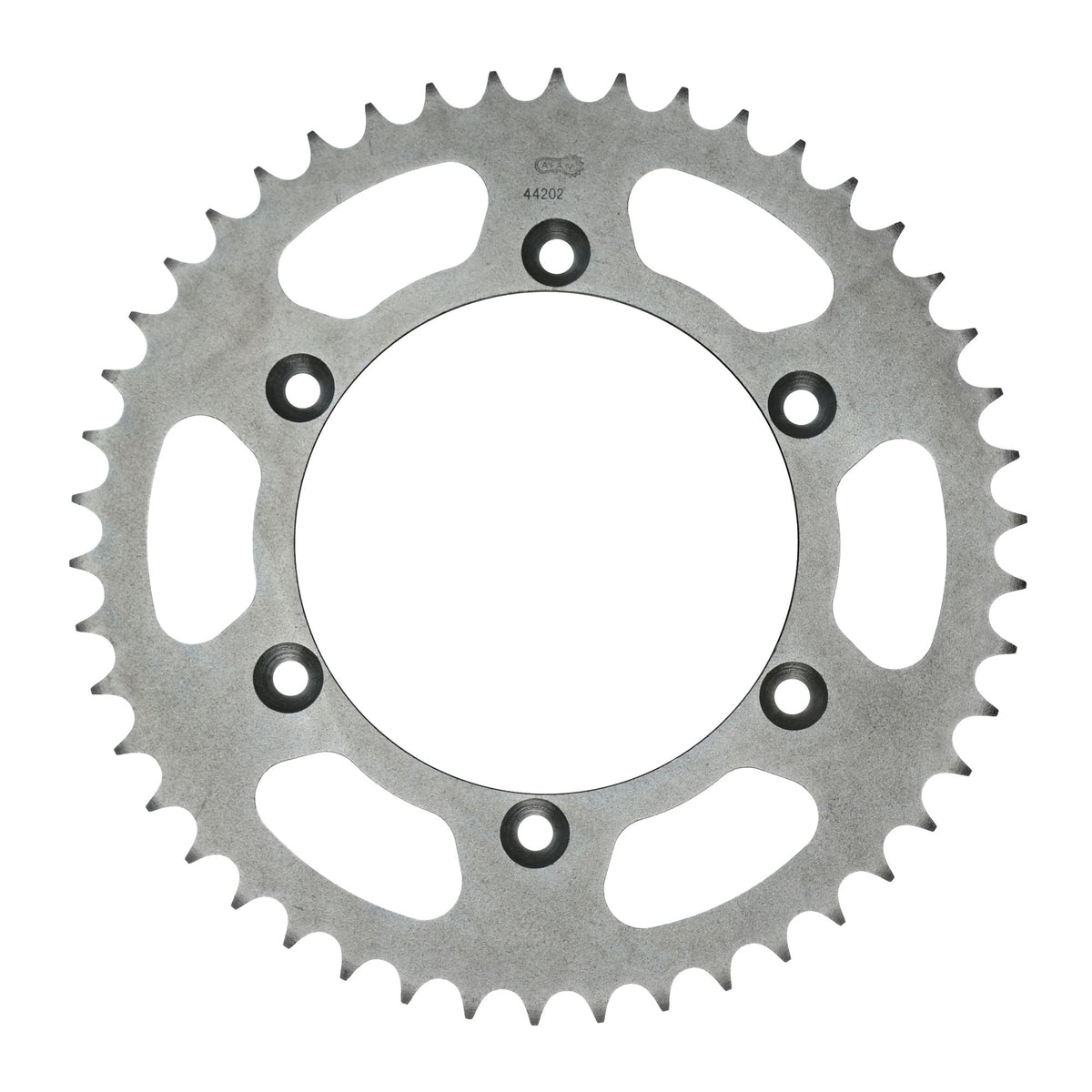

• Rear sprocket: AFAM rear sprocket STEEL #520 44 teeth - a44202.44
• Gear ratio sprocket-chain-rear sprocket: 13-108-44

AFAM 520 MR2-G

Reinforced chain
Without sealing rings
Color: Gold
Application by displacement: up to 250 cc / road, off-road and moto-cross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-31121

Fits

Cagiva 101 - 125 ccm W8 125 9PE 1992
Cagiva 101 - 125 ccm W8 125 9PE 1993
Cagiva 101 - 125 ccm W8 125 9PE 1994
Cagiva 101 - 125 ccm W8 125 9PE 1995
