AFAM chain kit for Cagiva WMX 250 1989 520 MR2G chain kit

AFAM chain kit for Cagiva WMX 250 1989 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Cagiva WMX 250 1989-1989

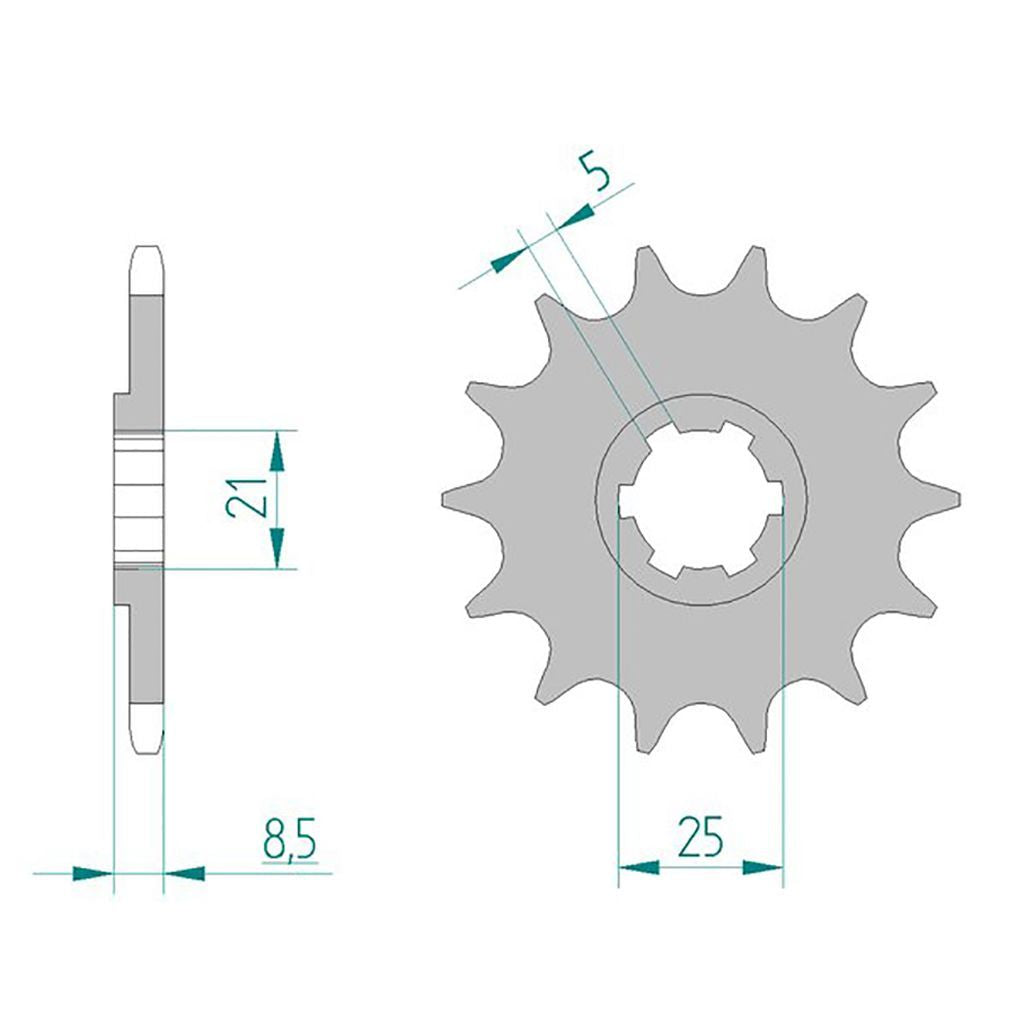

• Front sprocket: AFAM front sprocket #520 14 teeth - a24302.14
• Chain: AFAM chain 520 MR2-G with clip link - a520mr2.g.112

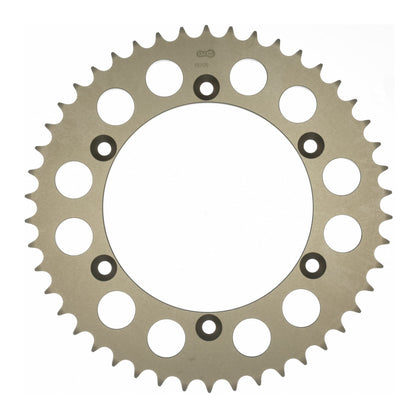

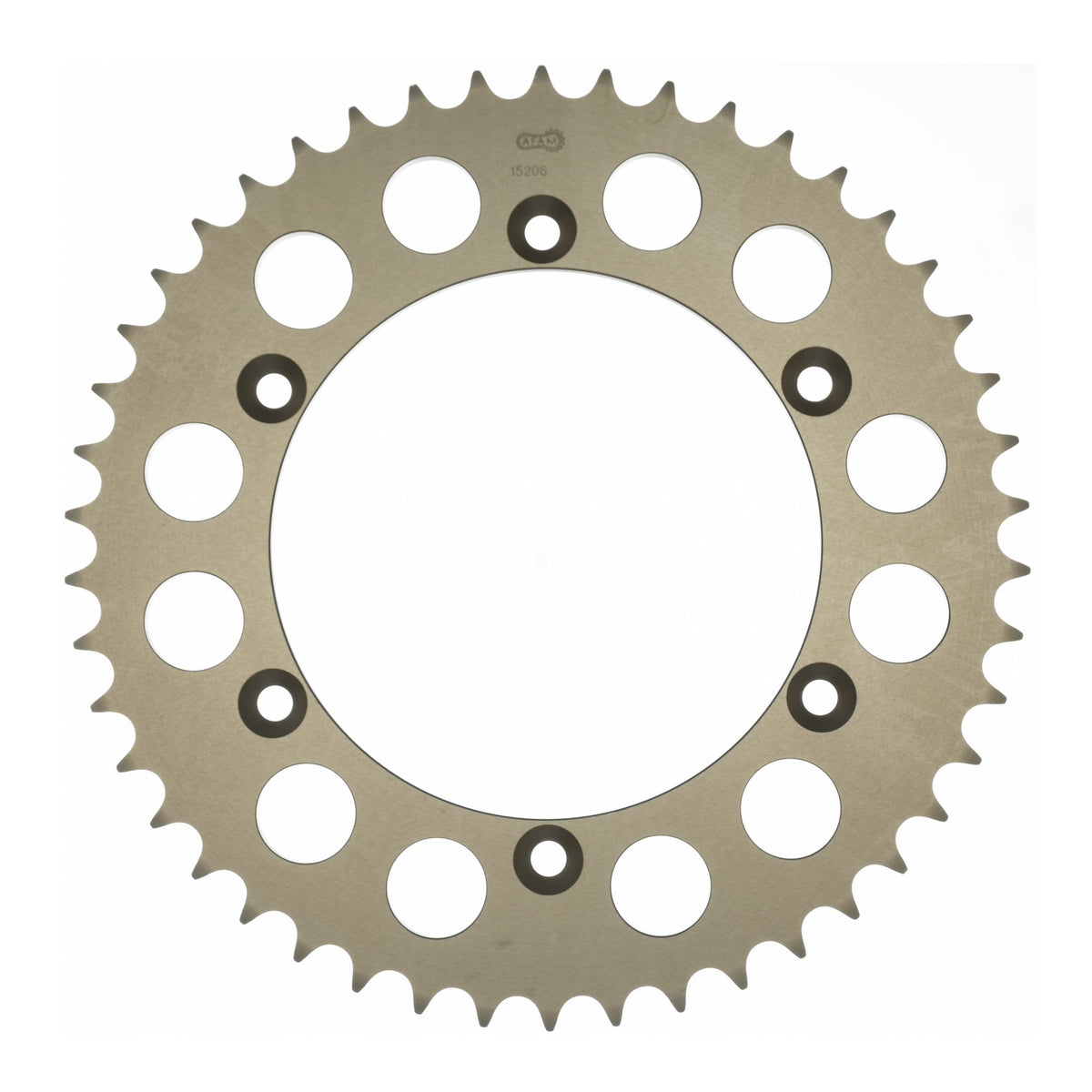

• Rear sprocket: AFAM rear sprocket ALU #520 46 teeth - a15206n.46
• Gear ratio front sprocket-chain-rear sprocket: 14-112-46

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / road, off-road and motocross

Technical specifications:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-15375

Suitable for

Cagiva 126 - 250 cc WMX 250 1989
