AFAM chain kit for Cagiva Xtra Raptor 1000 01-05 530 XSR2G chain kit

AFAM Chain Kit for Cagiva Xtra Raptor 1000 01-05 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Cagiva Xtra Raptor 1000 M201 2001-2005 chain kit

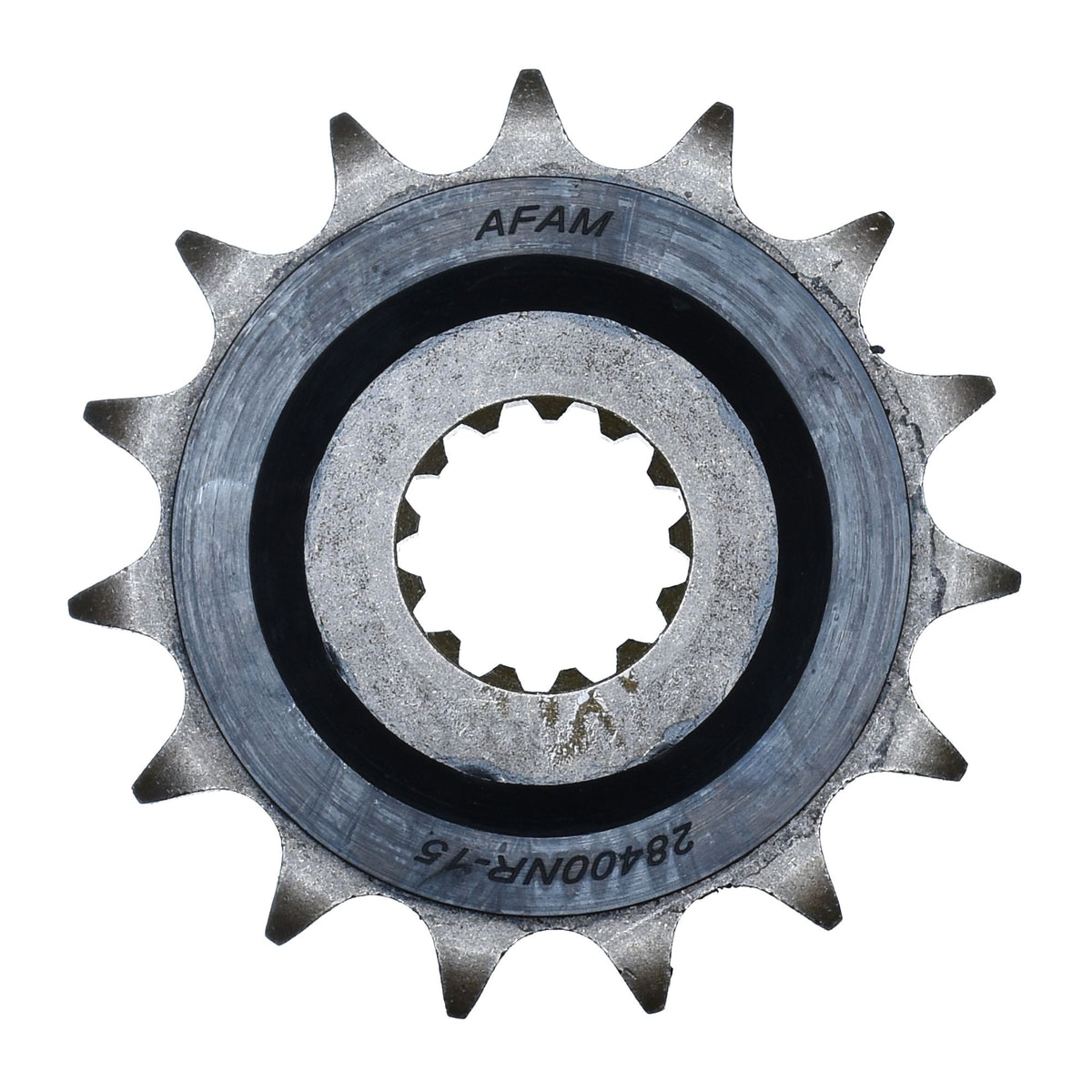

• Sprocket: AFAM sprocket rubber #530 Silent Sprocket 16 teeth - a28400oem.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 106 with rivet link - a530xsr2.g.106

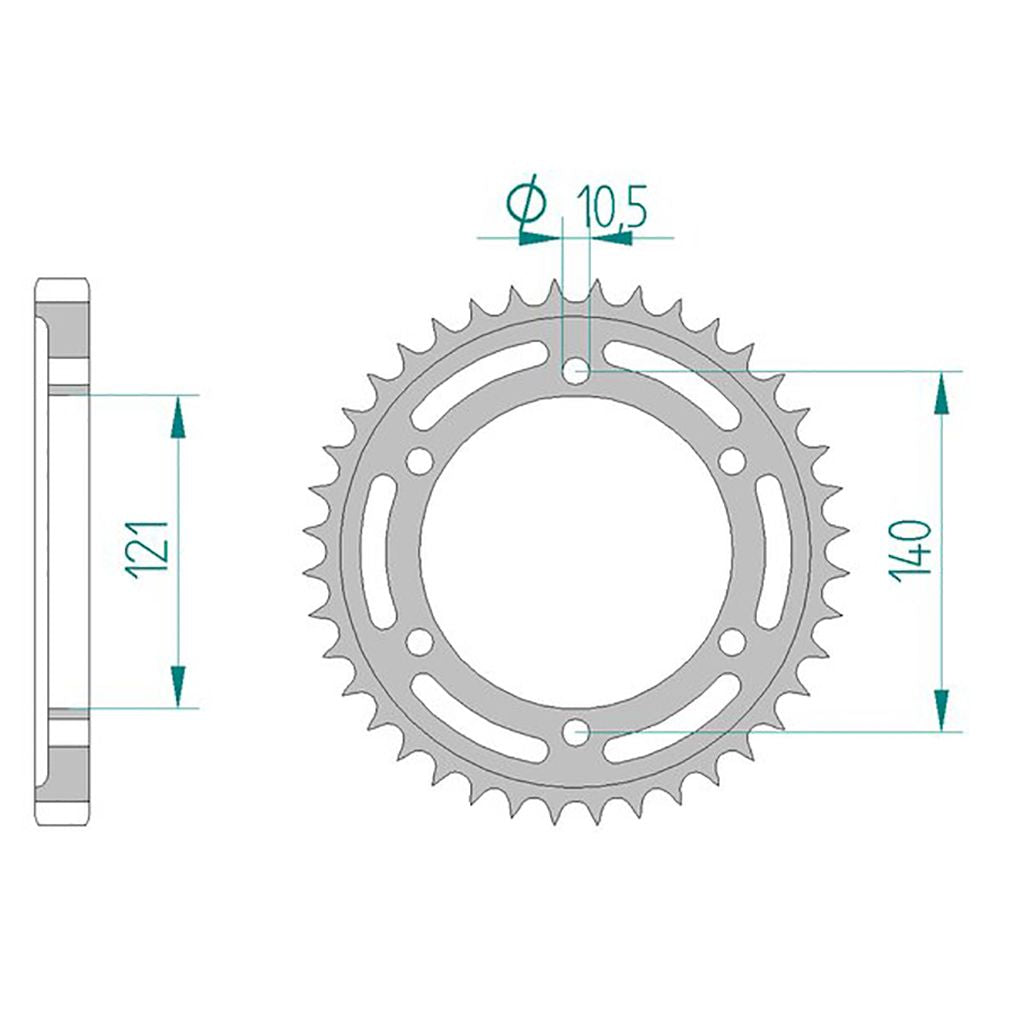

• Rear sprocket: AFAM rear sprocket STEEL #530 40 teeth - a44800.40
• Gear ratio sprocket-chain-rear sprocket: 16-106-40

AFAM 530 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical Data

Brand	AFAM
Part number	KKF-31042

Suitable for

Cagiva 751 - 1000 cc Xtra Raptor 1000 M201 2001
Cagiva 751 - 1000 cc Xtra Raptor 1000 M201 2002
Cagiva 751 - 1000 cc Xtra Raptor 1000 M201 2003
Cagiva 751 - 1000 cc Xtra Raptor 1000 M201 2004
Cagiva 751 - 1000 cc Xtra Raptor 1000 M201 2005
