AFAM chain kit for CPI SM 50 Supermoto 06-09 420 M chain kit

AFAM chain kit for CPI SM 50 Supermoto 06-09 420 M chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit CPI SM 50 Supermoto 2006-2009

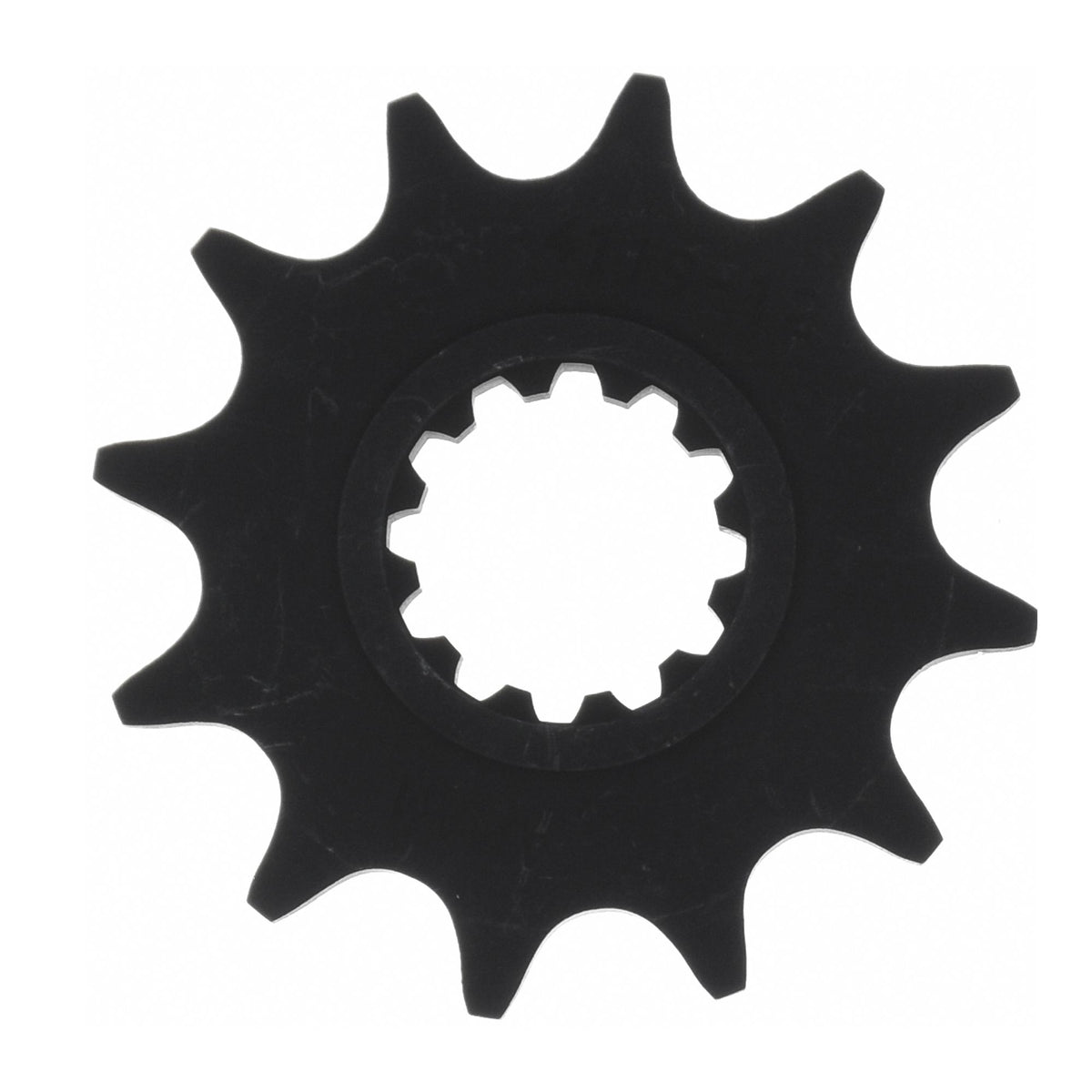

• Front sprocket: AFAM front sprocket #420 11 teeth - a94119.11

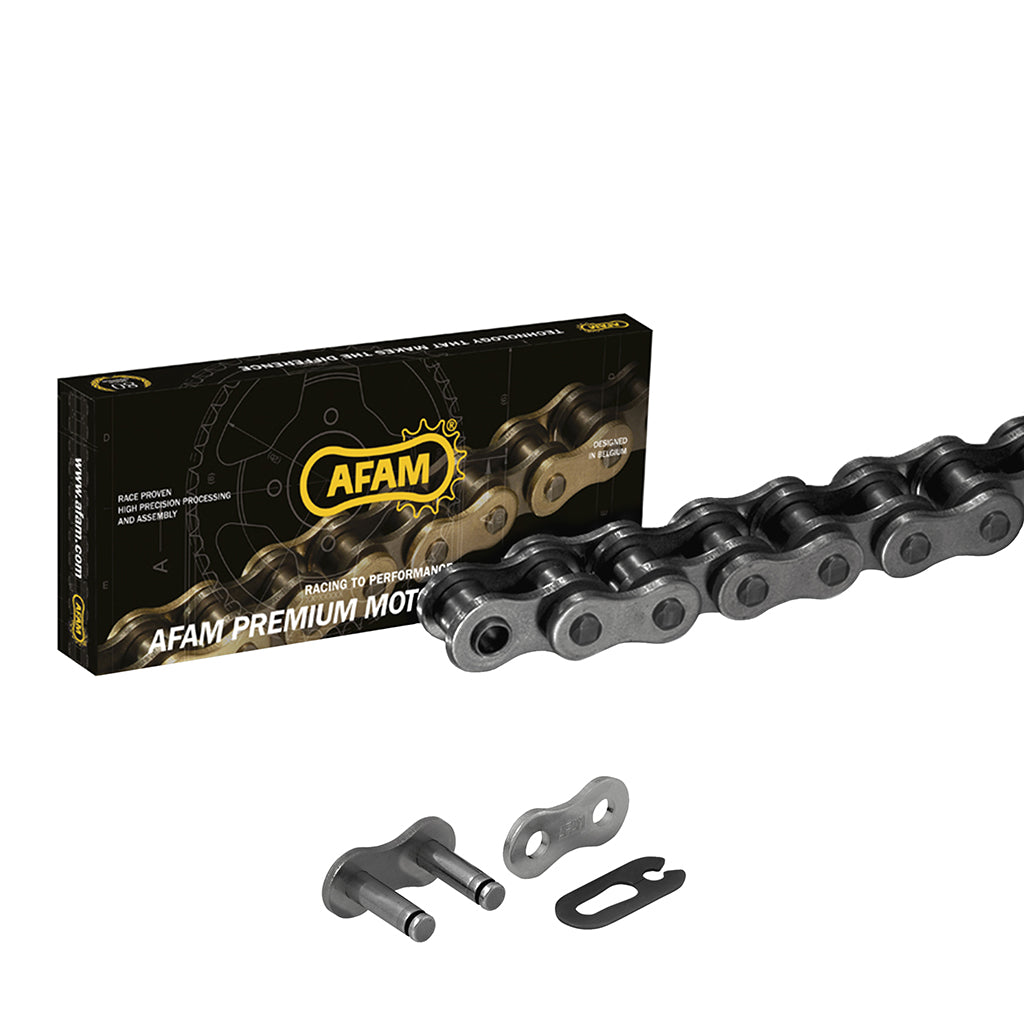

• Chain: AFAM chain 420 M 136 with clip link - a420m.136

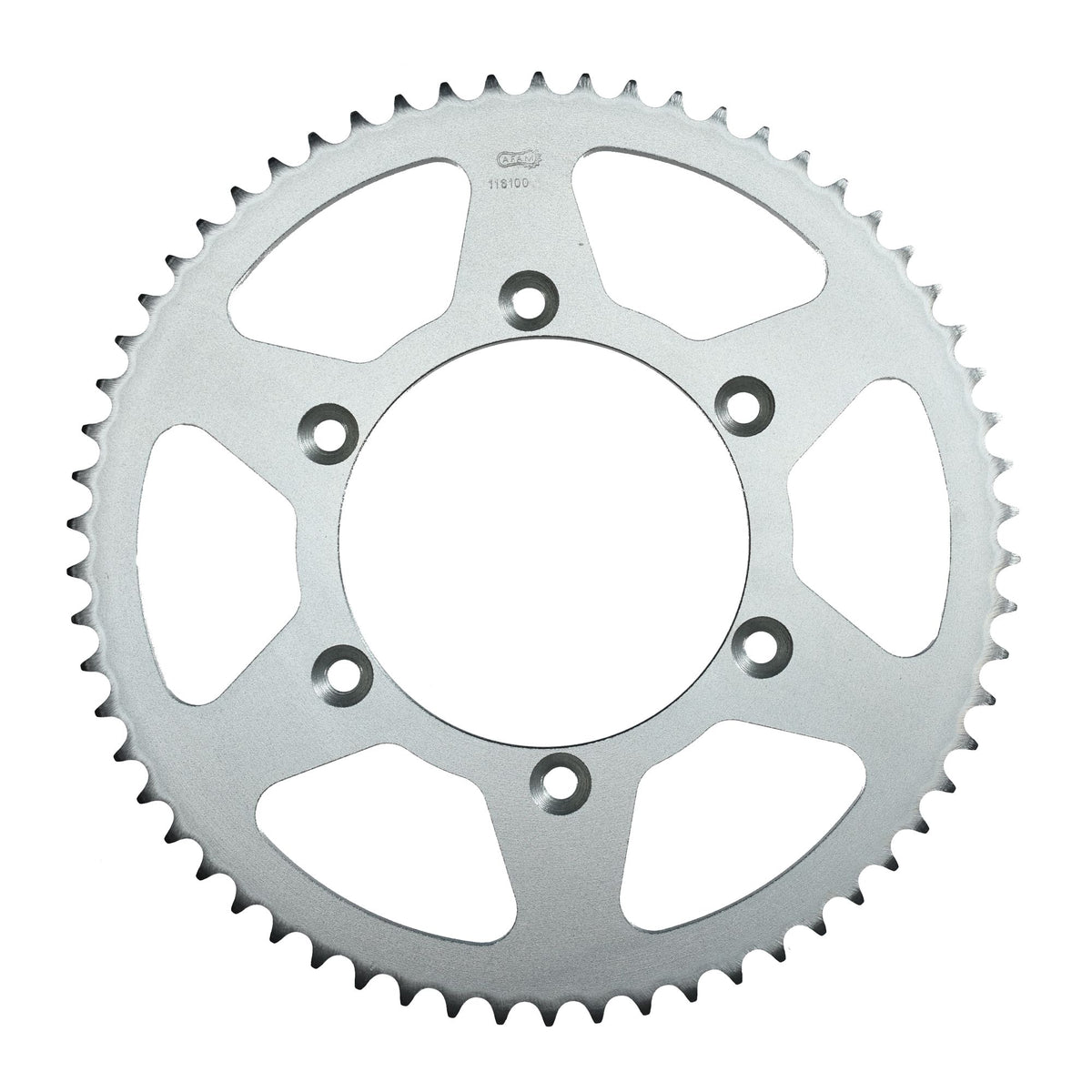

• Rear sprocket: AFAM rear sprocket STEEL #420 62 teeth - a116100.62
• Gear ratio front sprocket-chain-rear sprocket: 11-136-62

AFAM 420 M

Affordable and simple standard chain
Without O-rings
Color: Steel

Technical specifications:
Pitch: 420
Pin length: 14.40 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.5 mm
Plate thickness: outer: 1.5 mm
Tensile strength: 20.00 kN
Weight per 100 links: 0.72 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-31321

Suitable for

CPI 0 - 100 cc SM 50 Supermoto 2006
CPI 0 - 100 cc SM 50 Supermoto 2007
CPI 0 - 100 cc SM 50 Supermoto 2008
CPI 0 - 100 cc SM 50 Supermoto 2009
