AFAM chain kit for CPI SX 50 Supercross 06-09 420 R1G chain kit

AFAM chain kit for CPI SX 50 Supercross 06-09 420 R1G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit CPI SX 50 Supercross 2006-2009

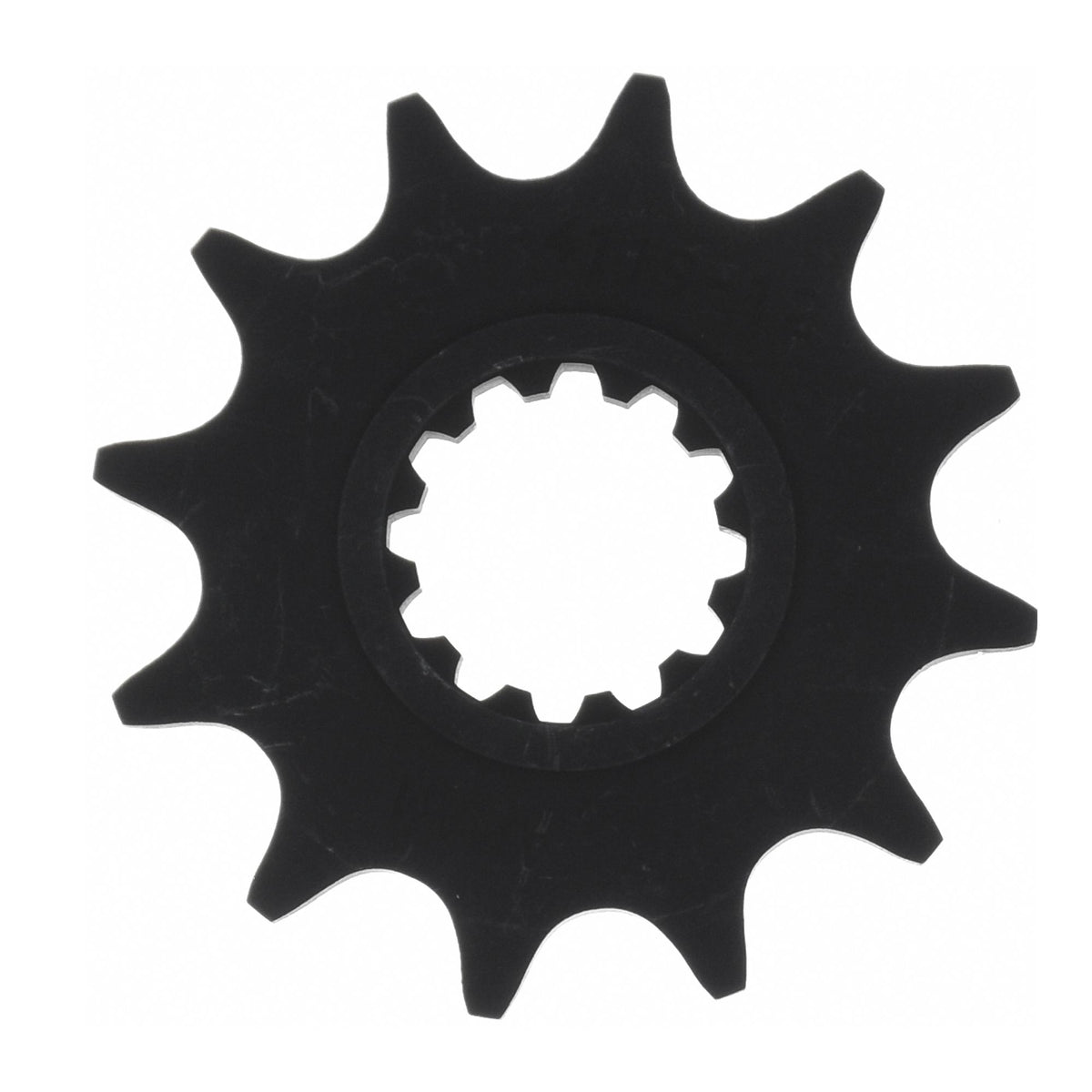

• Sprocket: AFAM sprocket #420 11 teeth - a94119.11
• Chain: AFAM chain 420 R1-G reinforced 136 with clip master link - a420r1.g.136

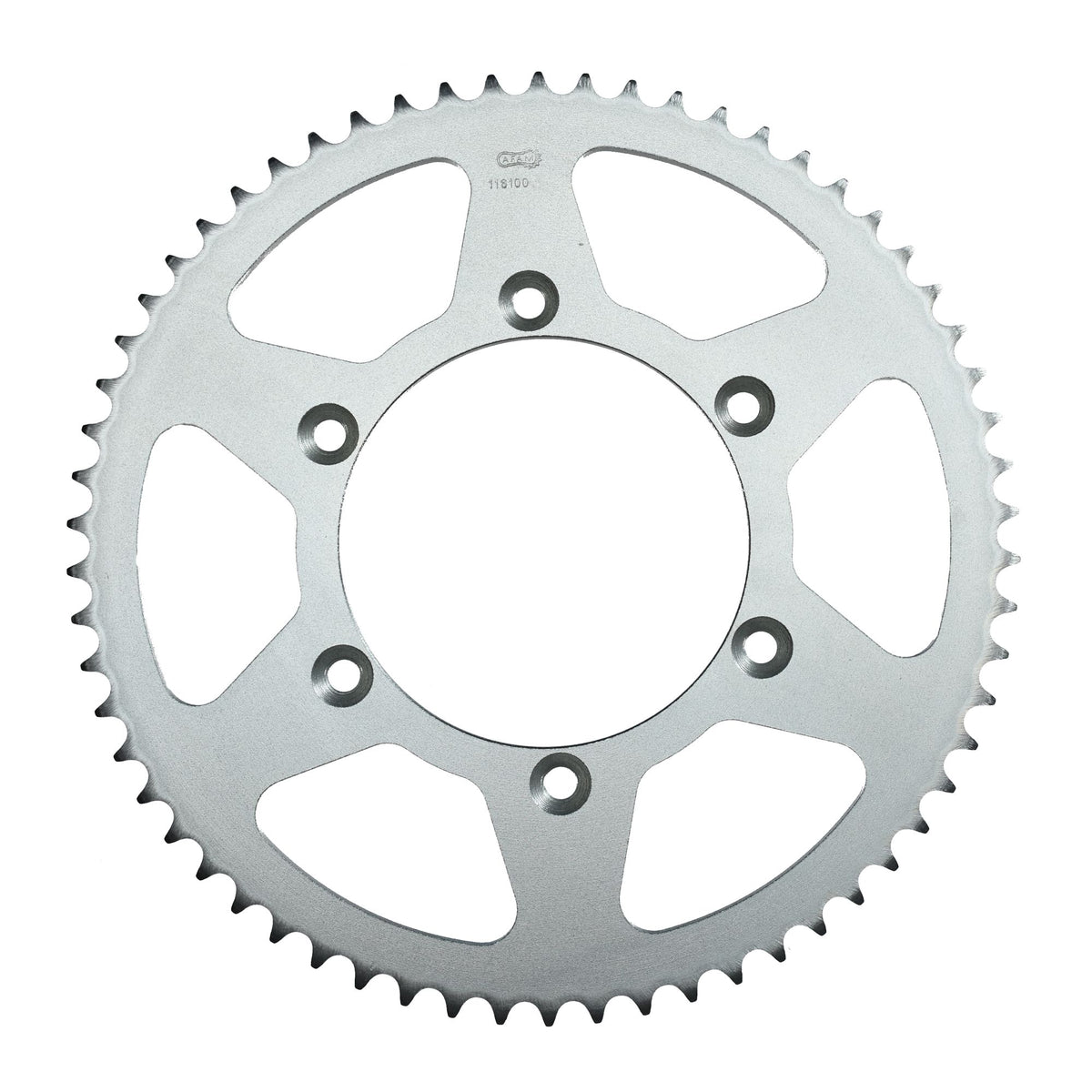

• Rear sprocket: AFAM rear sprocket STEEL #420 62 teeth - a116100.62
• Gear ratio sprocket-chain-rear sprocket: 11-136-62

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical specifications:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-10002

Suitable for

CPI 0 - 100 cc SX 50 Supercross 2006
CPI 0 - 100 cc SX 50 Supercross 2007
CPI 0 - 100 cc SX 50 Supercross 2008
CPI 0 - 100 cc SX 50 Supercross 2009
