AFAM chain kit for Daelim VJF 125 R Roadwin Fi (Roadspo 08-13) 428 XMR2G chain kit

AFAM chain kit for Daelim VJF 125 R Roadwin Fi (Roadsport) 08-13 428 XMR2G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Daelim VJF 125 R Roadwin Fi (Roadsport) BA8BLS7C 2008-2013 chain kit

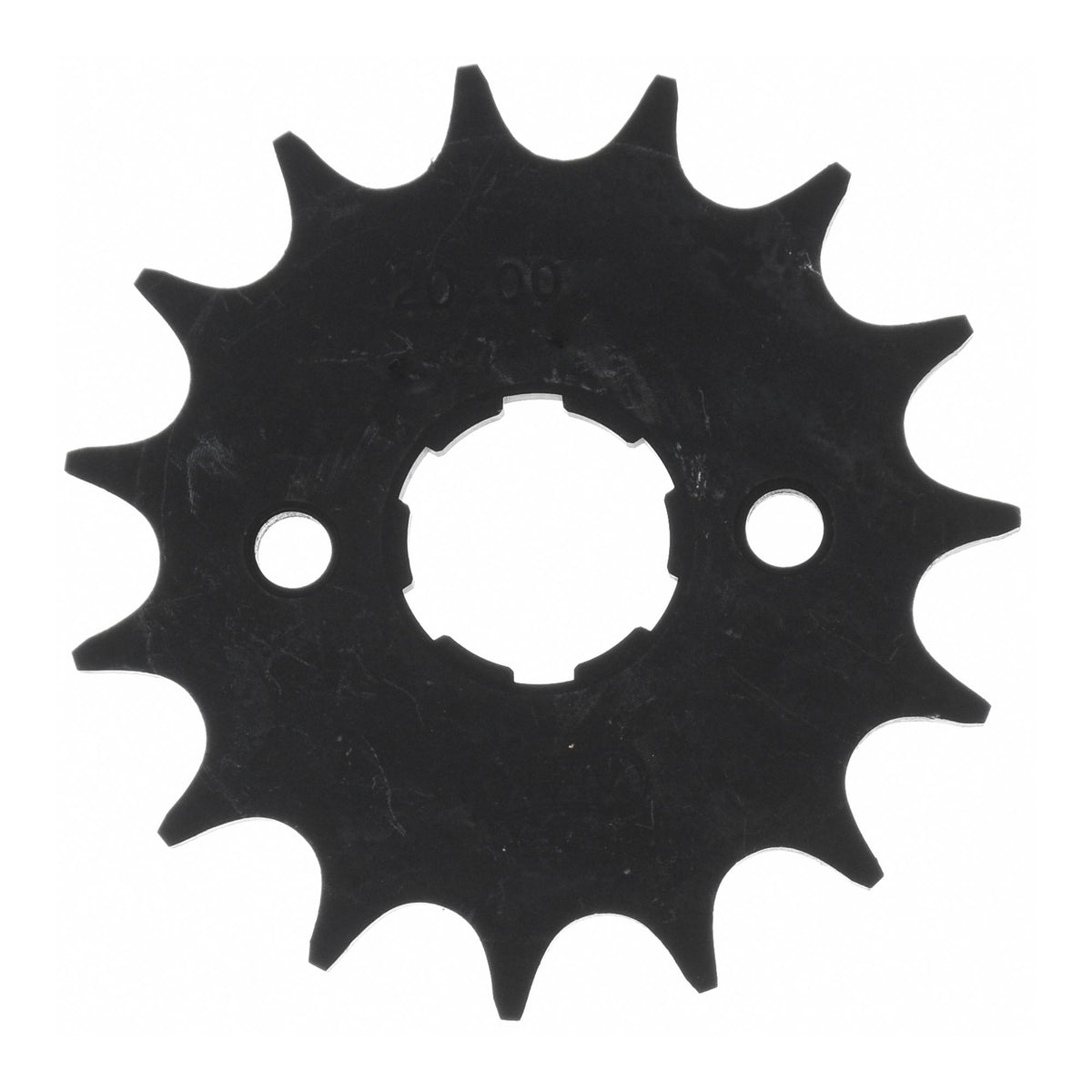

• Front sprocket: AFAM sprocket #428 14 teeth - a20200.14
• Chain: AFAM chain 428 XMR2-G Xs-ring 130 w. clip master link - a428xmr2.g.130

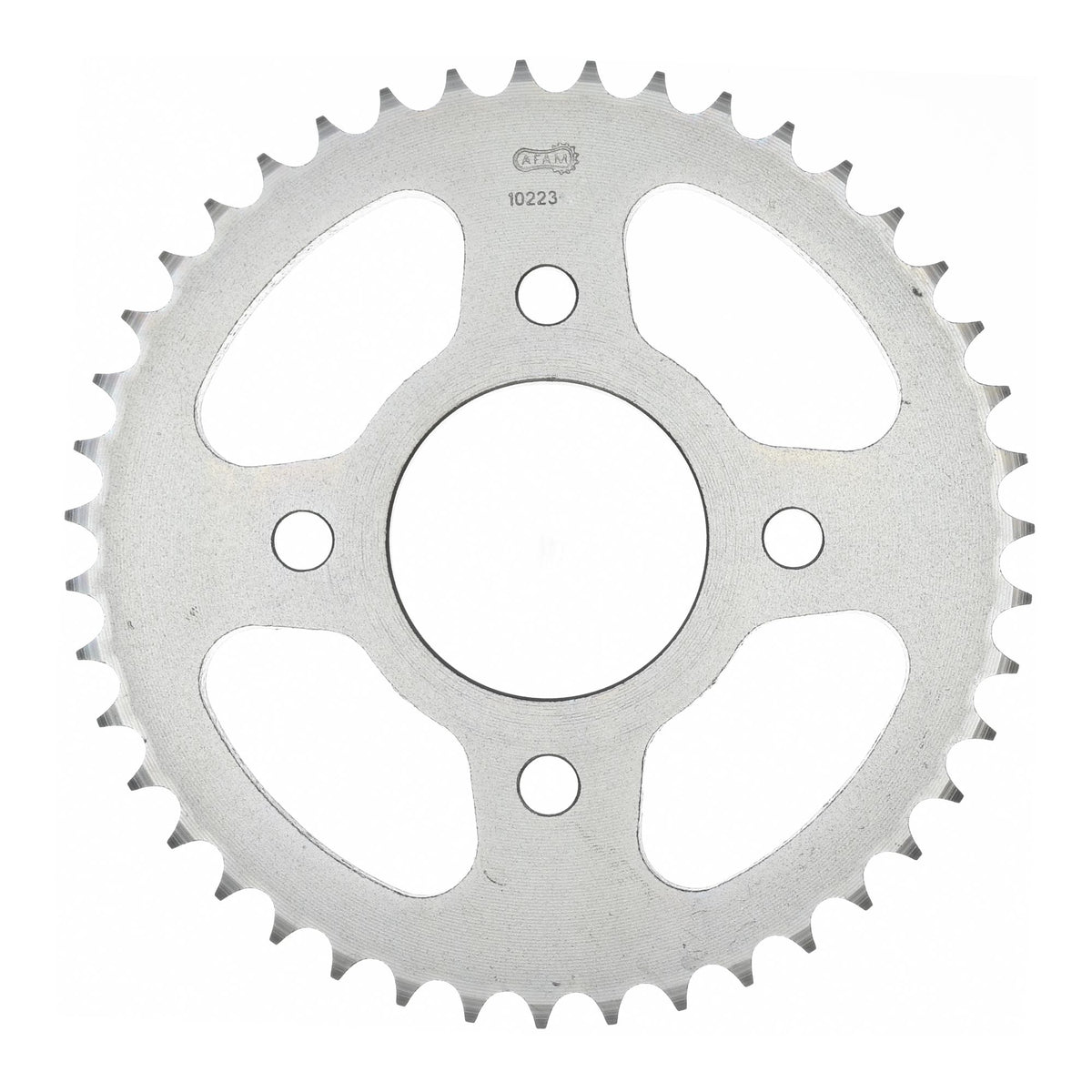

• Rear sprocket: AFAM STEEL sprocket #428 4-hole 45 teeth - a10223.45
• Gear ratio sprocket-chain-rear sprocket: 14-130-45

AFAM 428 XMR2-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-61438

Suitable for

Daelim 101 - 125 cc VJF 125 R Roadwin Fi (Roadsport) BA8BLS7C 2008
Daelim 101 - 125 cc VJF 125 R Roadwin Fi (Roadsport) BA8BLS7C 2009
Daelim 101 - 125 cc VJF 125 R Roadwin Fi (Roadsport) BA8BLS7C 2010
Daelim 101 - 125 cc VJF 125 R Roadwin Fi (Roadsport) BA8BLS7C 2011
Daelim 101 - 125 cc VJF 125 R Roadwin Fi (Roadsport) BA8BLS7C 2012
Daelim 101 - 125 cc VJF 125 R Roadwin Fi (Roadsport) BA8BLS7C 2013
