AFAM chain kit for Daelim VL 125 Daystar 00-07 428 R1G chain kit

AFAM Chain Kit for Daelim VL 125 Daystar 00-07 428 R1G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Daelim VL 125 Daystar VL125FK 2000-2007

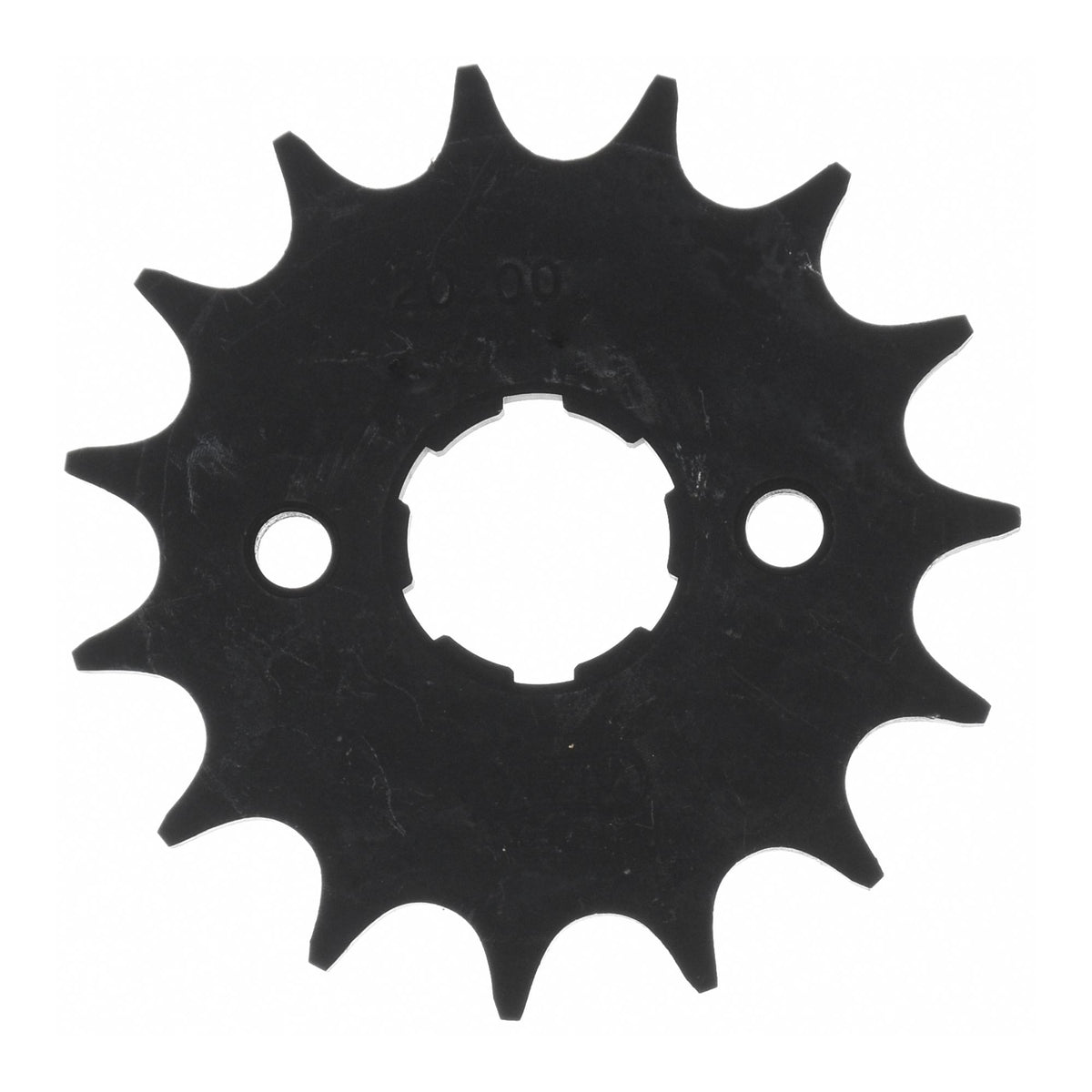

• Sprocket: AFAM sprocket #428 14 teeth - a20200.14
• Chain: AFAM chain 428 R1-G reinforced 146 with clip link - a428r1.g.146

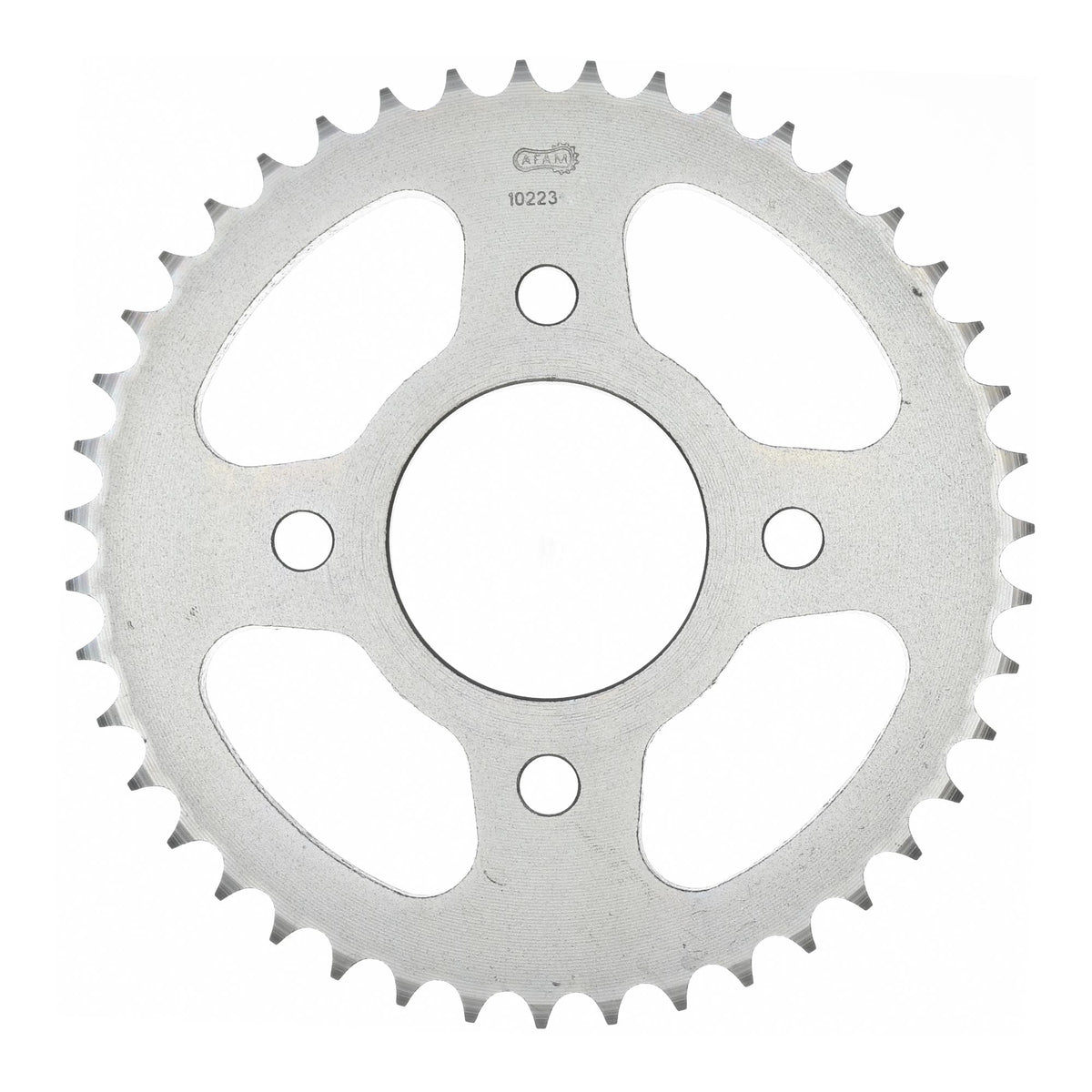

• Rear sprocket: AFAM rear sprocket STEEL #428 4-hole 42 teeth - a10223.42
• Gear ratio sprocket-chain-rear sprocket: 14-146-42

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical specifications:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-45562

Suitable for

Daelim 101 - 125 cc VL 125 Daystar VL125FK 2000
Daelim 101 - 125 cc VL 125 Daystar VL125FK 2001
Daelim 101 - 125 cc VL 125 Daystar VL125FK 2002
Daelim 101 - 125 cc VL 125 Daystar VL125FK 2003
Daelim 101 - 125 cc VL 125 Daystar VL125FK 2004
Daelim 101 - 125 cc VL 125 Daystar VL125FK 2005
Daelim 101 - 125 cc VL 125 Daystar VL125FK 2006
Daelim 101 - 125 cc VL 125 Daystar VL125FK 2007
