AFAM chain kit for Daelim VL 125 Daystar Classic 02-05 428 XMR2G chain kit

AFAM Chain Kit for Daelim VL 125 Daystar Classic 02-05 428 XMR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Daelim VL 125 Daystar Classic VL125FK 2002-2005 Chain Kit

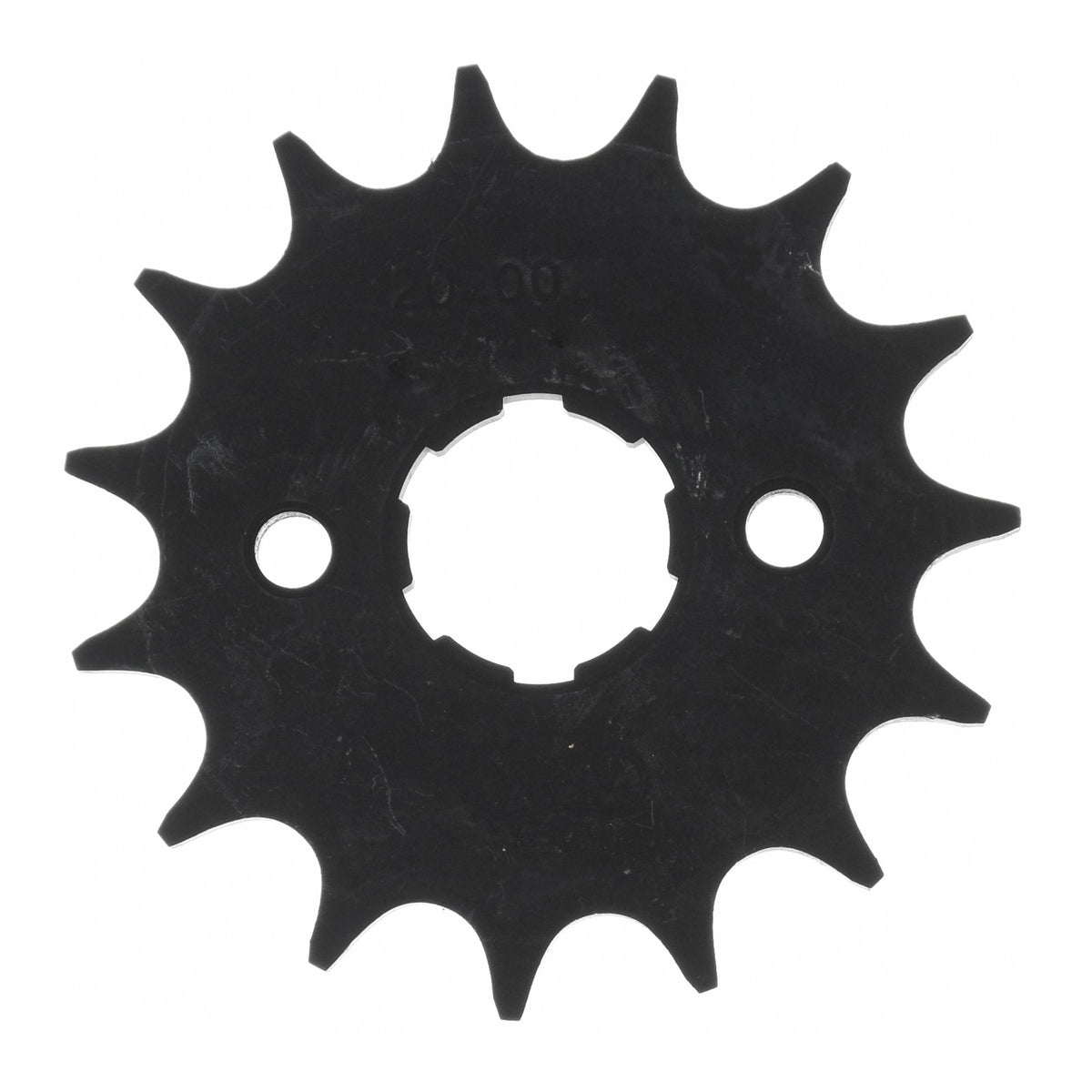

• Sprocket: AFAM sprocket #428 14 teeth - a20200.14
• Chain: AFAM chain 428 XMR2-G Xs-ring 146 w. clip link - a428xmr2.g.146

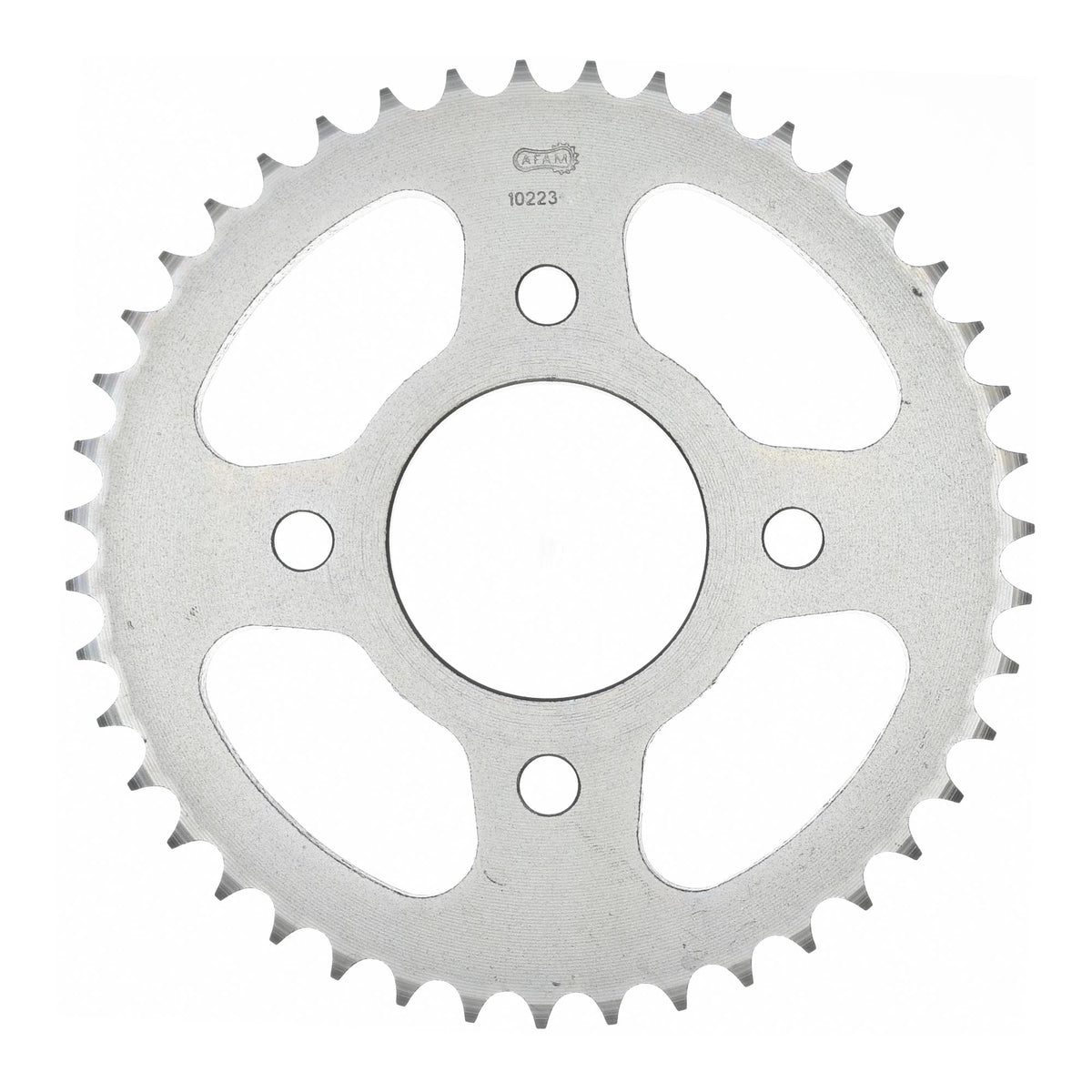

• Rear sprocket: AFAM steel rear sprocket #428 4-hole 42 teeth - a10223.42
• Gear ratio sprocket-chain-rear sprocket: 14-146-42

AFAM 428 XMR2-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless stated otherwise: The offered goods are accessories/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-61042

Suitable for

Daelim 101 - 125 cc VL 125 Daystar Classic VL125FK 2002
Daelim 101 - 125 cc VL 125 Daystar Classic VL125FK 2003
Daelim 101 - 125 cc VL 125 Daystar Classic VL125FK 2004
Daelim 101 - 125 cc VL 125 Daystar Classic VL125FK 2005
