AFAM chain kit for Daelim VL 125 Daystar Fi 08-12 428 R1G chain kit

AFAM chain kit for Daelim VL 125 Daystar Fi 08-12 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the Daelim VL 125 Daystar Fi BA1BLS 2008-2012 chain kit

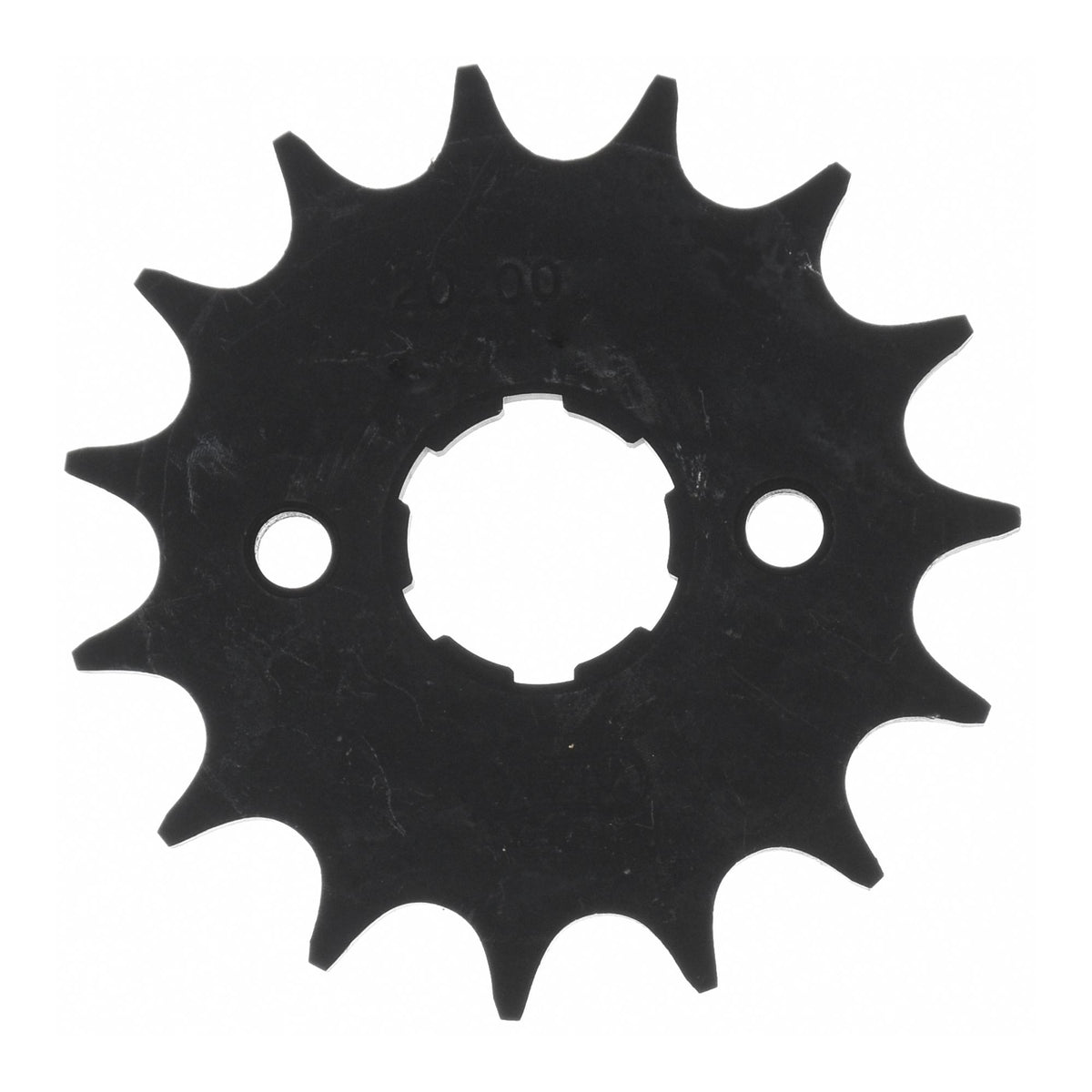

• Sprocket: AFAM sprocket #428 14 teeth - a20200.14
• Chain: AFAM chain 428 R1-G reinforced 148 with clip link - a428r1.g.148

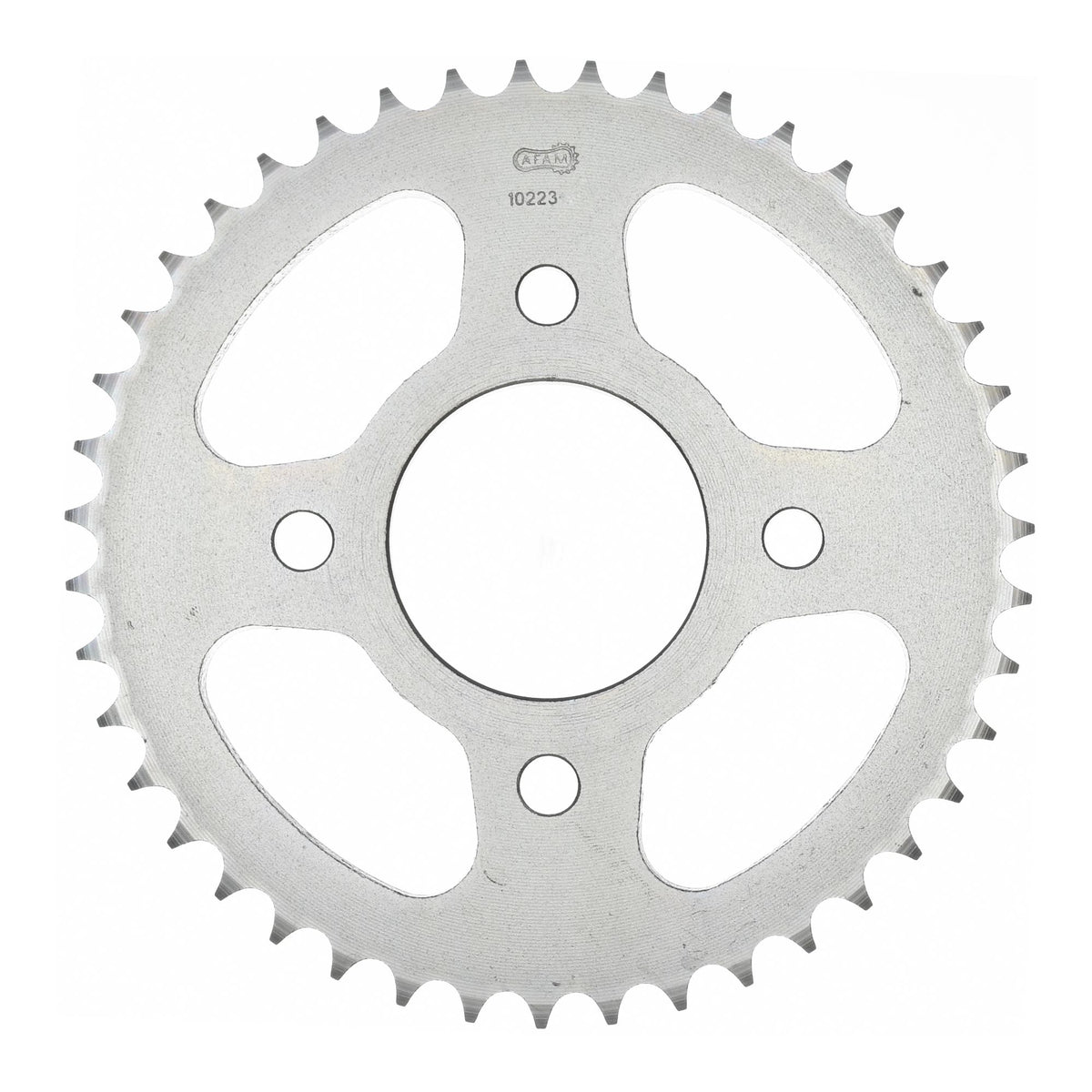

• Rear sprocket: AFAM rear sprocket STEEL #428 4-hole 45 teeth - a10223.45
• Gear ratio sprocket-chain-rear sprocket: 14-148-45

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-15505

Fits

Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2008
Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2009
Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2010
Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2011
Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2012
