AFAM chain kit for Daelim VL 125 Daystar Fi 08-12 428 XMR2G chain kit

AFAM Chain Kit for Daelim VL 125 Daystar Fi 08-12 428 XMR2G Chain Kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to show compatibility!

Components of the chain kit Daelim VL 125 Daystar Fi BA1BLS 2008-2012

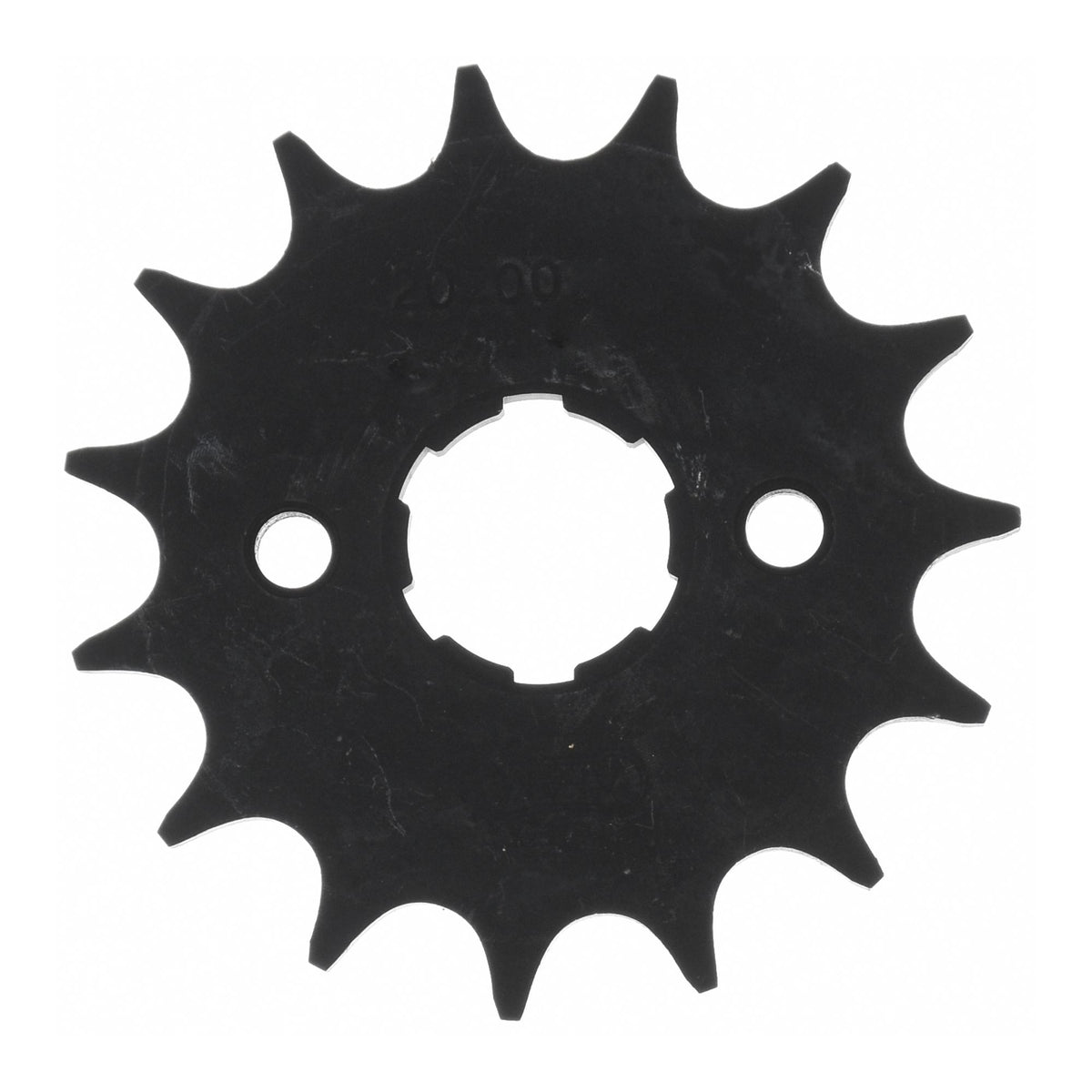

• Sprocket: AFAM sprocket #428 14 teeth - a20200.14
• Chain: AFAM chain 428 XMR2-G Xs-ring 148 w. clip link - a428xmr2.g.148

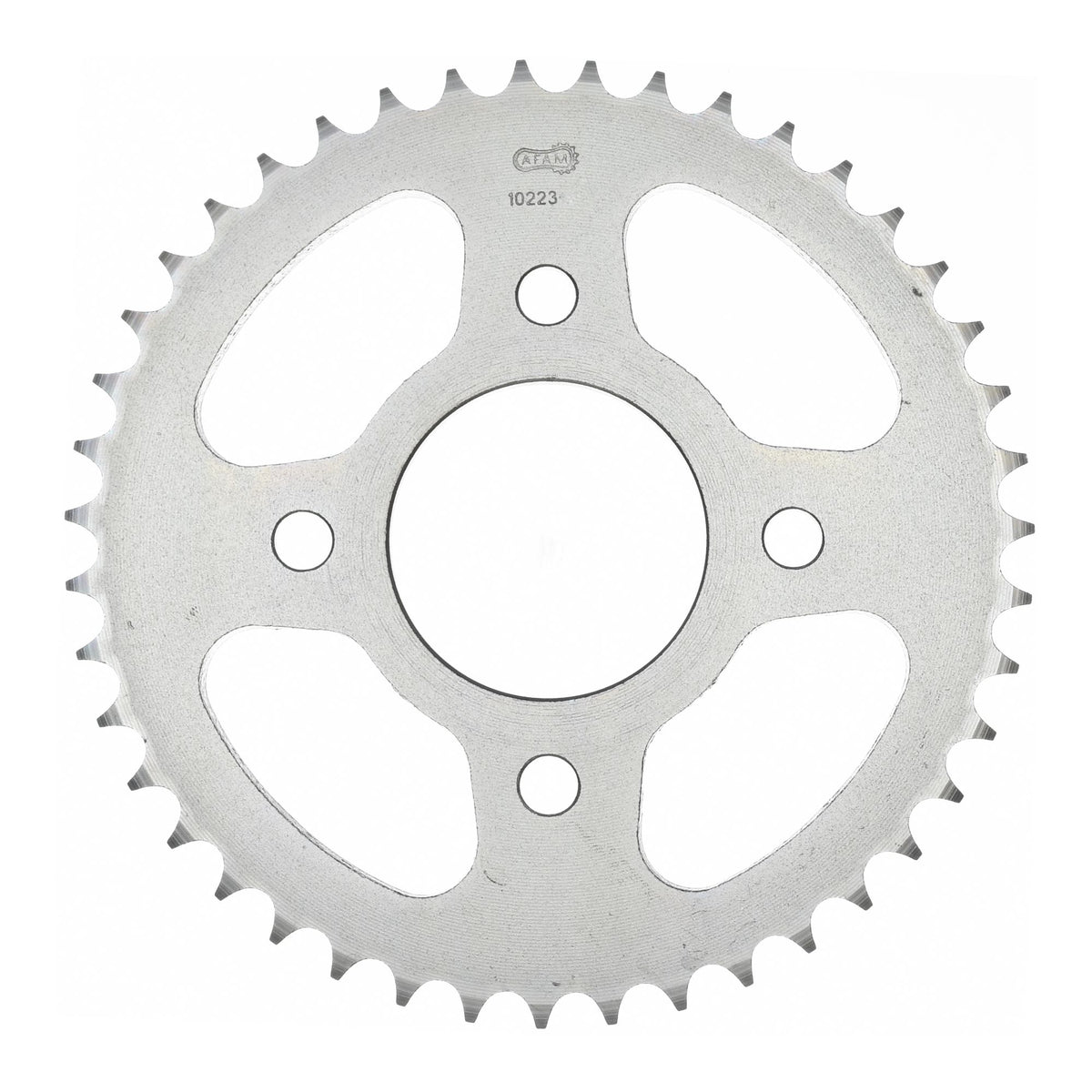

• Chainwheel: AFAM chainwheel STEEL #428 4-hole 45 teeth - a10223.45
• Gear ratio sprocket-chain-chainwheel: 14-148-45

AFAM 428 XMR2-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-61043

Fits

Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2008
Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2009
Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2010
Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2011
Daelim 101 - 125 cc VL 125 Daystar Fi BA1BLS 2012
