AFAM chain kit for Daelim VL 125 Daystar Fi CBS (Euro 4 17-19 428 XMR2G chain kit

AFAM chain kit for Daelim VL 125 Daystar Fi CBS (Euro 4) 17-19 428 XMR2G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Daelim VL 125 Daystar Fi CBS (Euro 4) BA1BGC 2017-2019 chain kit

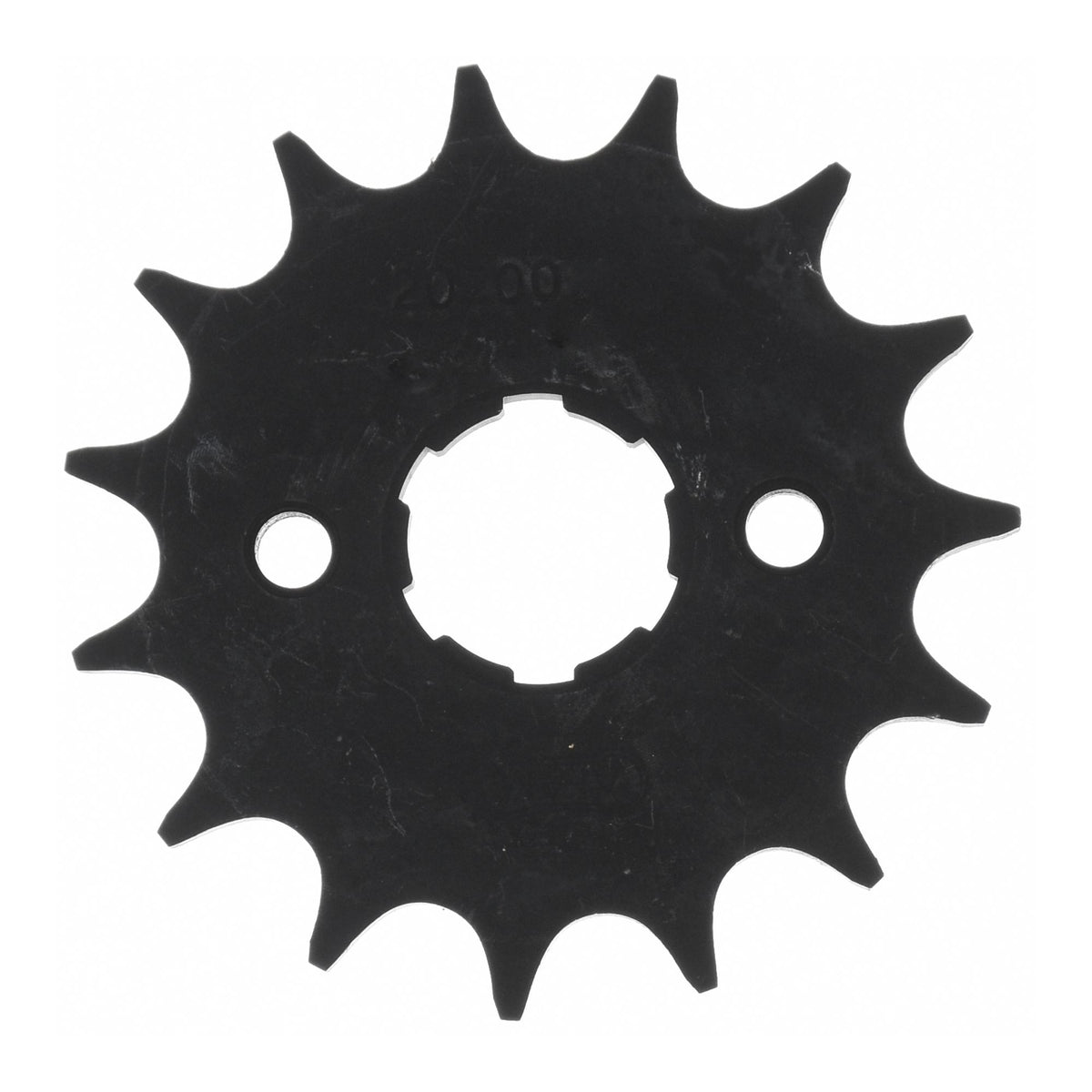

• Front sprocket: AFAM front sprocket #428 14 teeth - a20200.14
• Chain: AFAM chain 428 XMR2-G Xs-Ring 148 w. clip link - a428xmr2.g.148

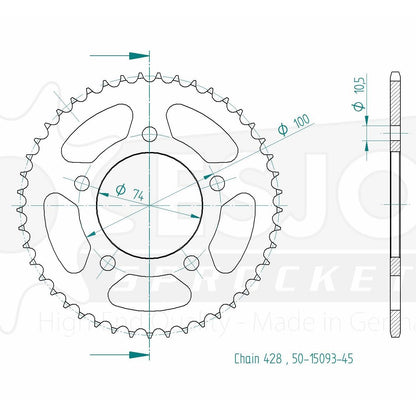

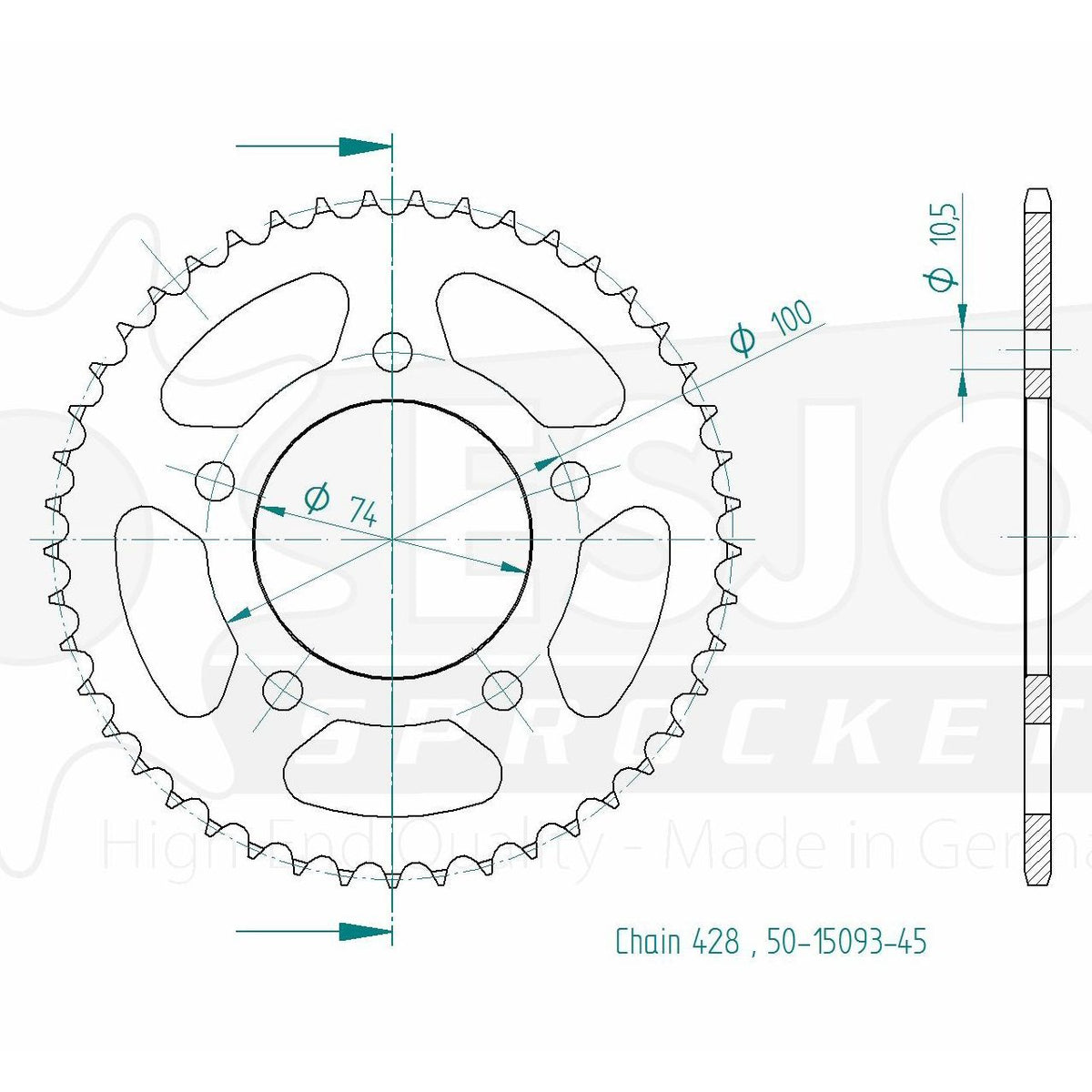

• Rear sprocket: Esjot rear sprocket STEEL #428 45 teeth - e5015093.45
• Gear ratio front sprocket-chain-rear sprocket: 14-148-45

AFAM 428 XMR2-G

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-61045

Suitable for

Daelim 101 - 125 cc VL 125 Daystar Fi CBS (Euro 4) BA1BGC 2017
Daelim 101 - 125 cc VL 125 Daystar Fi CBS (Euro 4) BA1BGC 2018
Daelim 101 - 125 cc VL 125 Daystar Fi CBS (Euro 4) BA1BGC 2019
