AFAM chain kit for Daelim VS 125 97-98 428 R1G chain kit

AFAM chain kit for Daelim VS 125 97-98 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Daelim VS 125 VS125FKV 1997-1998 chain kit

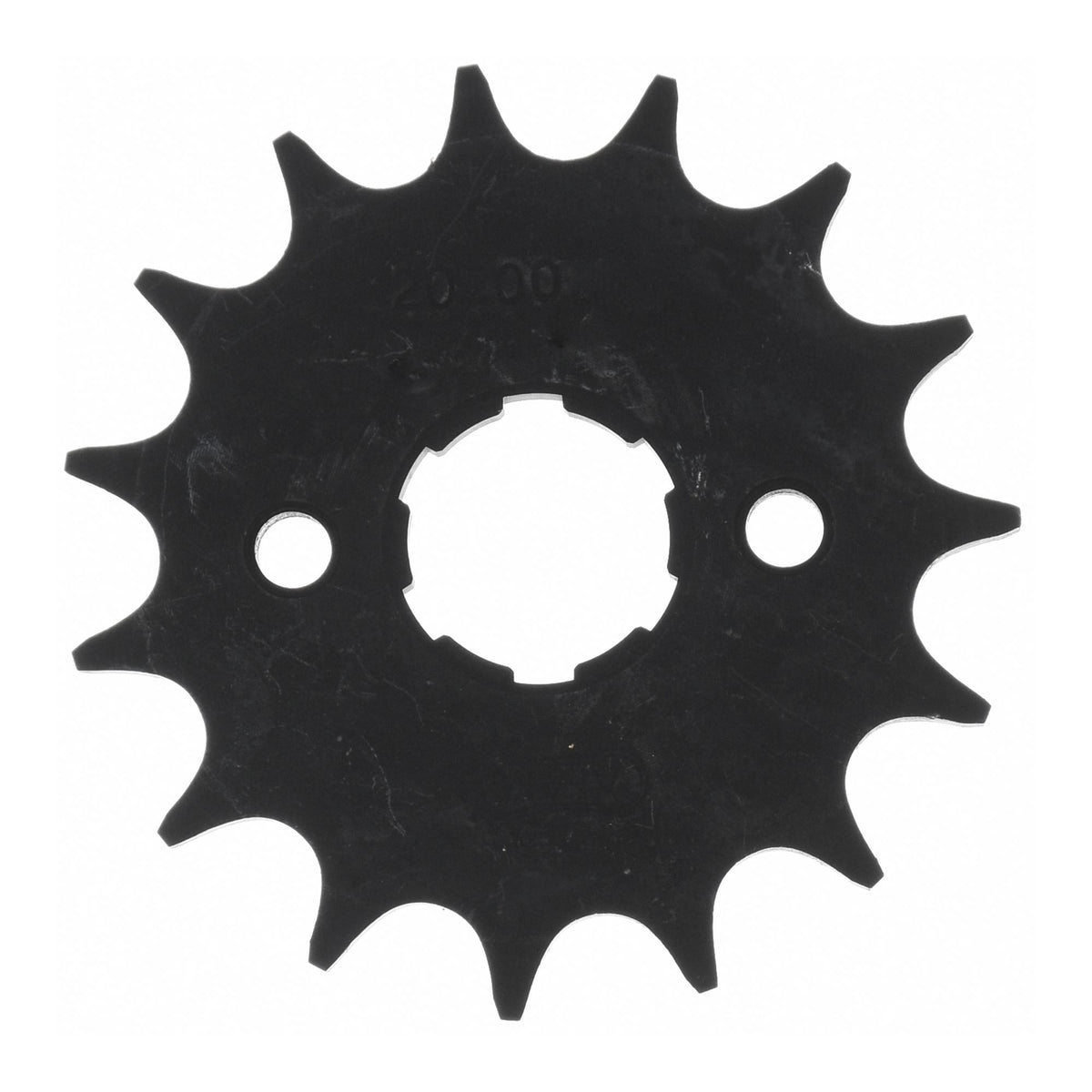

• Front sprocket: AFAM sprocket #428 14 teeth - a20200.14
• Chain: AFAM chain 428 R1-G reinforced 126 with clip connecting link - a428r1.g.126

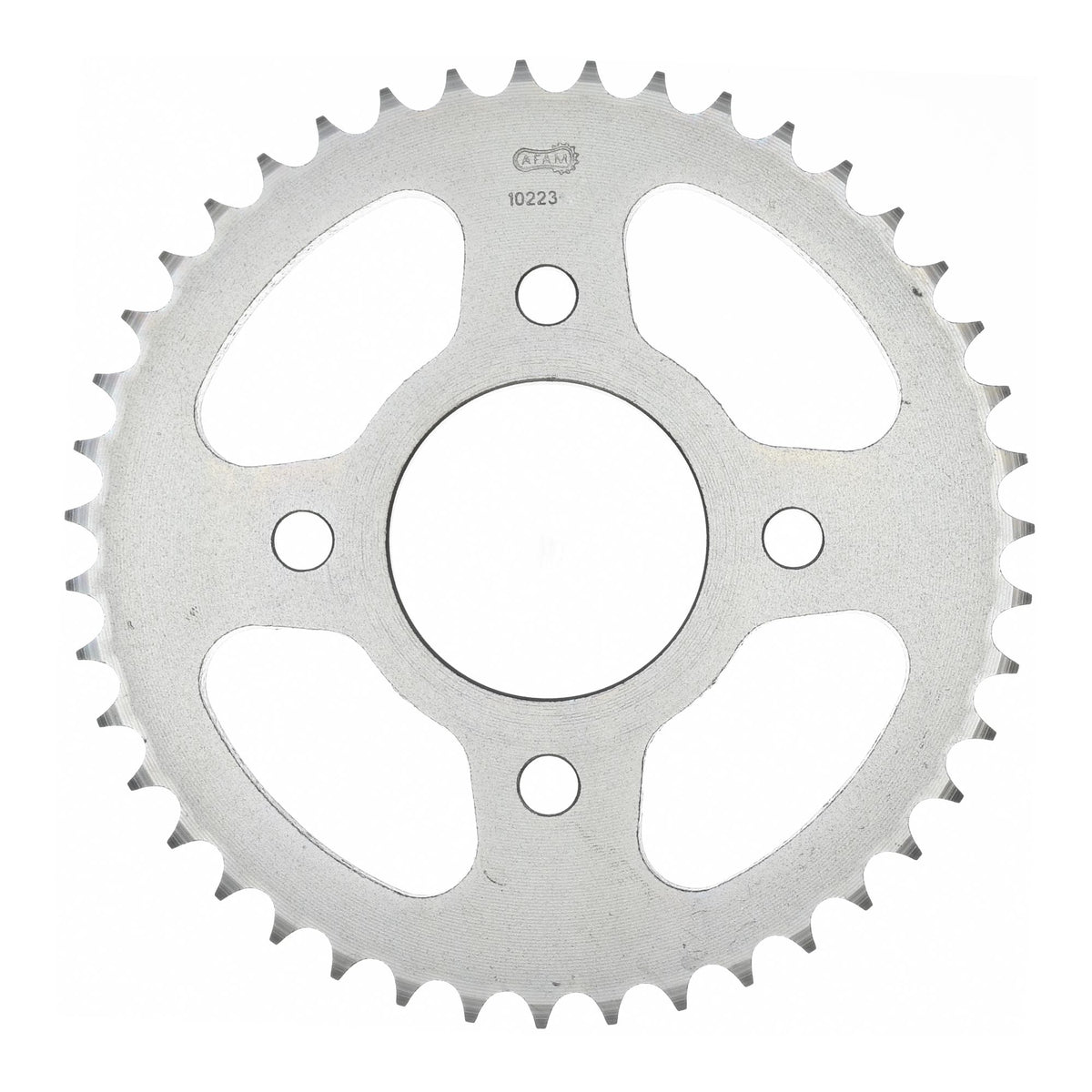

• Rear sprocket: AFAM steel rear sprocket #428 4-hole 42 teeth - a10223.42
• Gear ratio front sprocket-chain-rear sprocket: 14-126-42

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-10015

Suitable for

Daelim 101 - 125 cc VS 125 VS125FKV 1997
Daelim 101 - 125 cc VS 125 VS125FKV 1998
