AFAM chain kit for Derbi Mulhacen 125 07-11 428 XMR2G chain kit

AFAM chain kit for Derbi Mulhacen 125 07-11 428 XMR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: No original part - mentions of the manufacturer are only for the purpose of demonstrating compatibility!

Components of the chain kit Derbi Mulhacen 125 MS1A1A 2007-2011

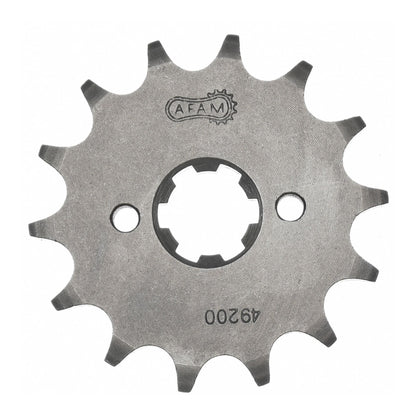

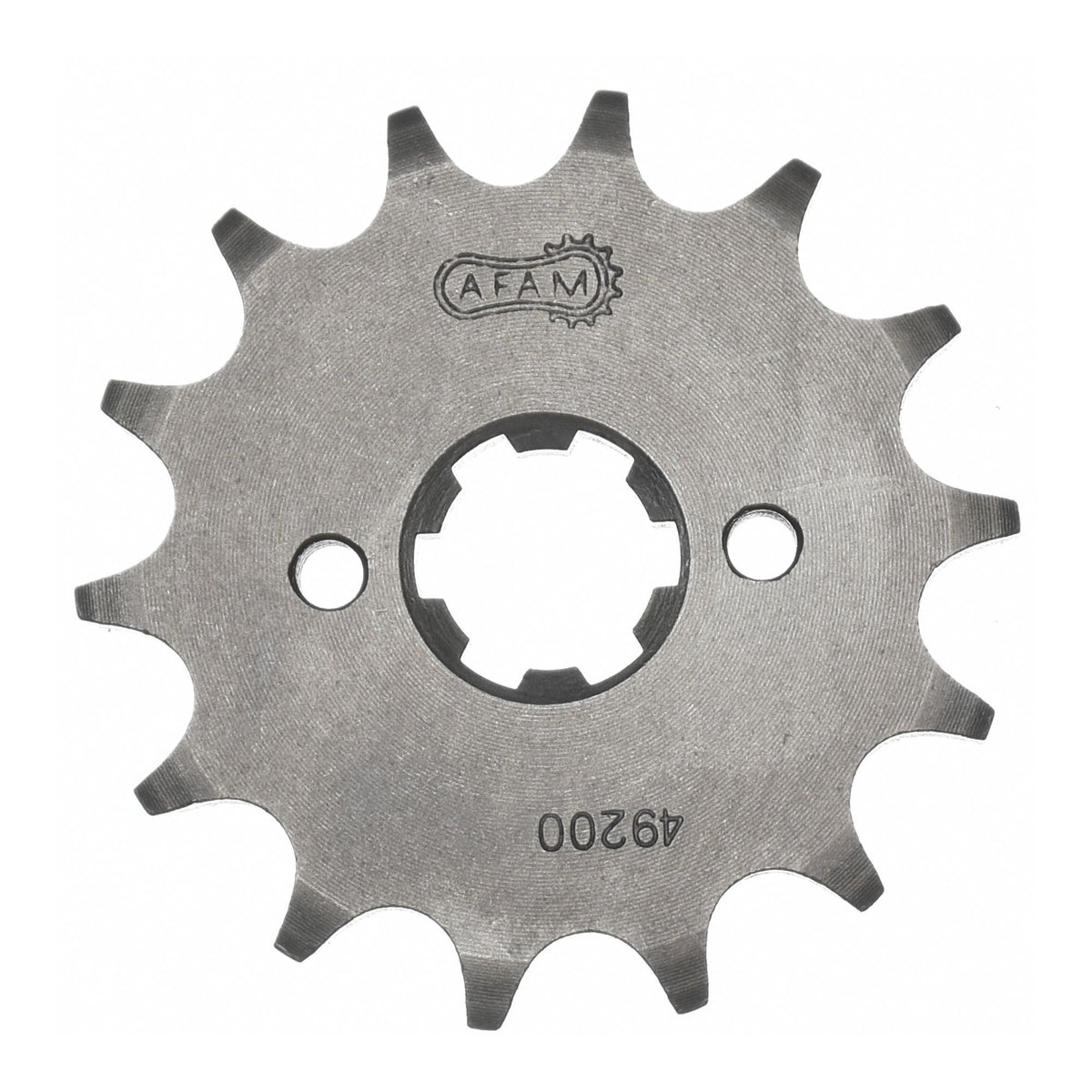

• Sprocket: AFAM sprocket #428 14 teeth - a49200.14
• Chain: AFAM chain 428 XMR2-G Xs-ring 130 w. clip link - a428xmr2.g.130

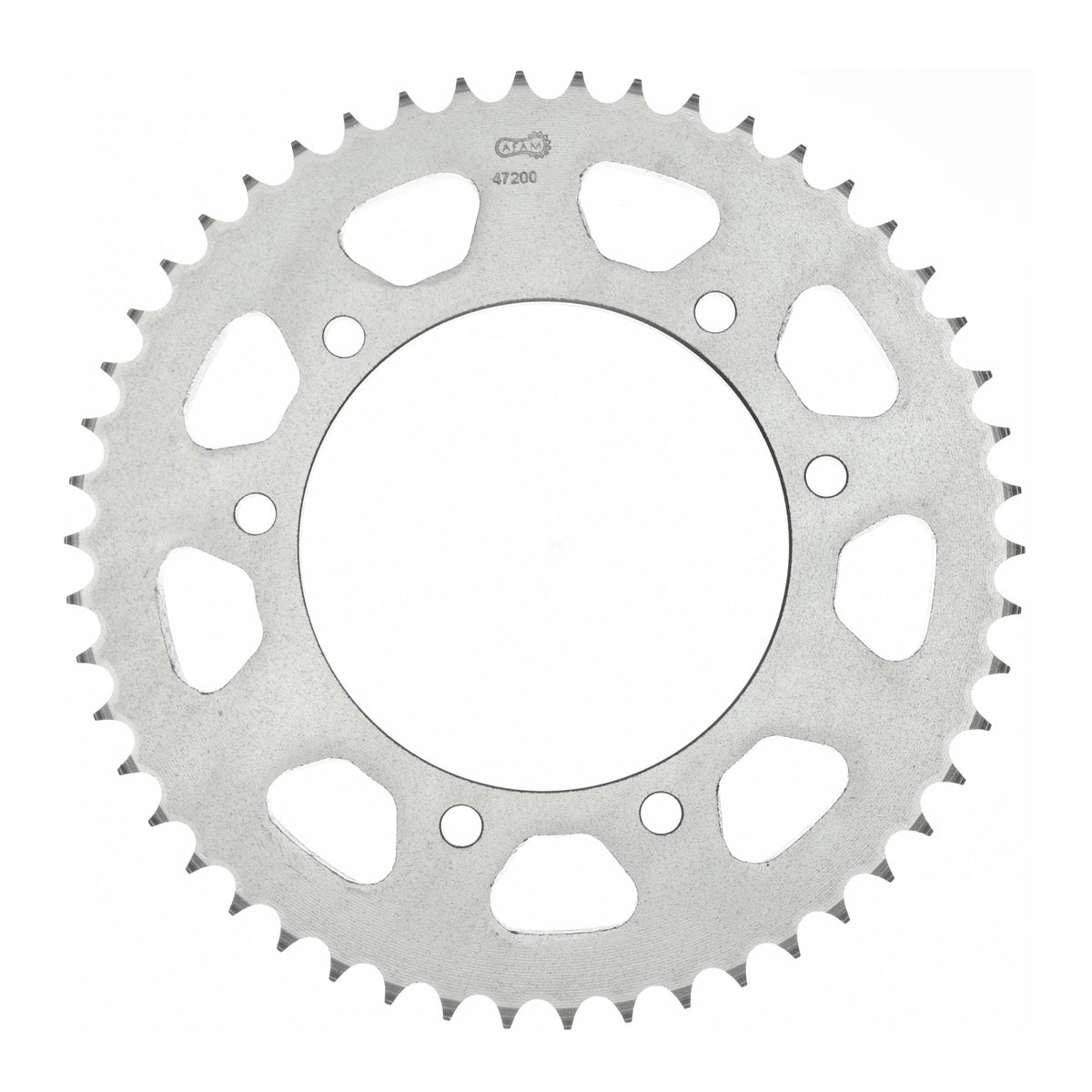

• Chain wheel: AFAM chain wheel STEEL #428 51 teeth - a47200.51
• Gear ratio sprocket-chain-chain wheel: 14-130-51

AFAM 428 XMR2-G

Reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by engine displacement: up to 250 cc

Technical data:
Pitch: 428
Pin length: 20.10 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.03 kg

Unless otherwise stated: The goods offered are an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-61055

Suitable for

Derbi 101 - 125 cc Mulhacen 125 MS1A1A 2007
Derbi 101 - 125 cc Mulhacen 125 MS1A1A 2008
Derbi 101 - 125 cc Mulhacen 125 MS1A1A 2009
Derbi 101 - 125 cc Mulhacen 125 MS1A1A 2010
Derbi 101 - 125 cc Mulhacen 125 MS1A1A 2011
