AFAM chain kit for Derbi Senda 125 R DRD 4T (Piaggio M 10-13 428 R1G chain kit)

AFAM chain kit for Derbi Senda 125 R DRD 4T (Piaggio M 10-13 428 R1G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless stated otherwise: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit Derbi Senda 125 R DRD 4T (Piaggio engine) 2010-2013

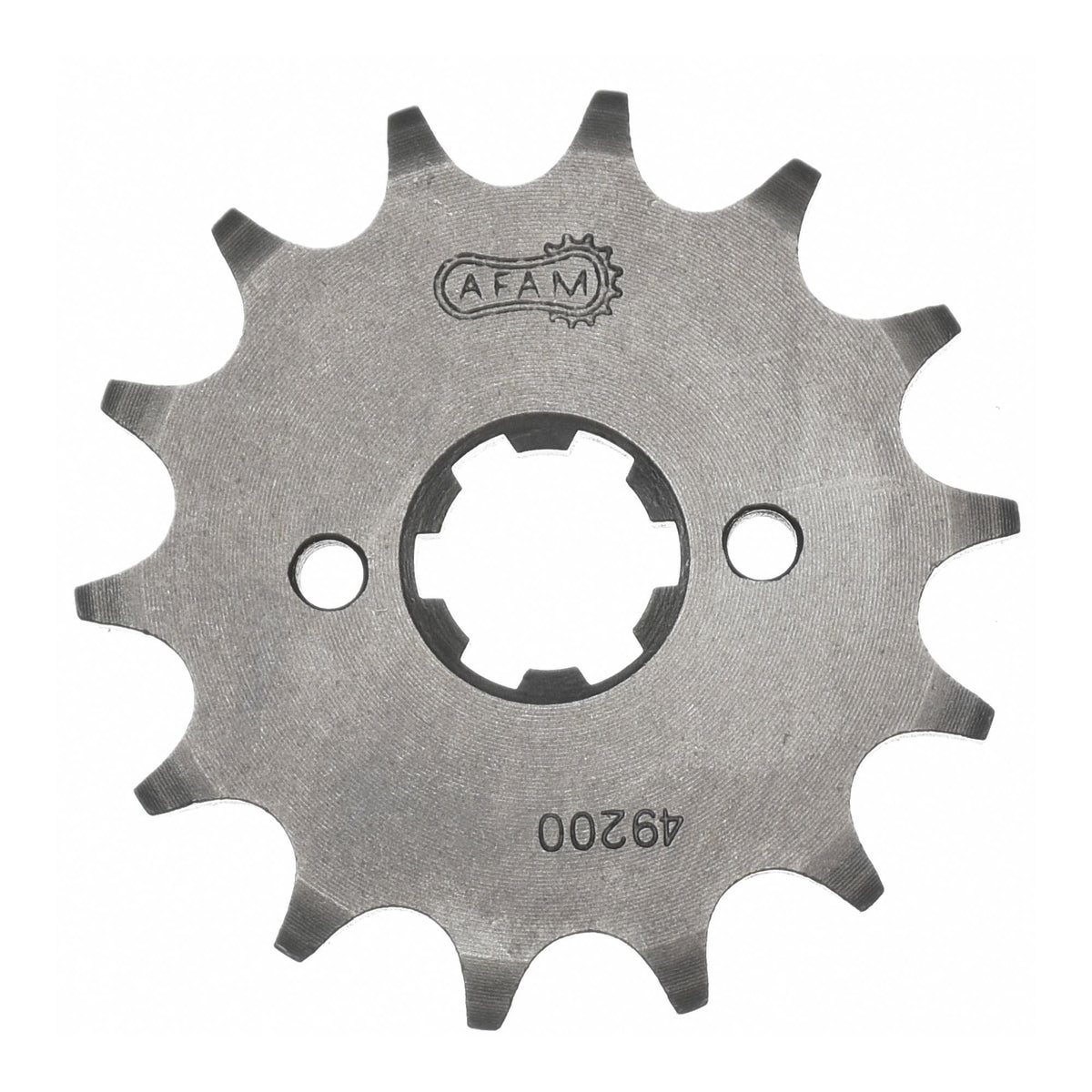

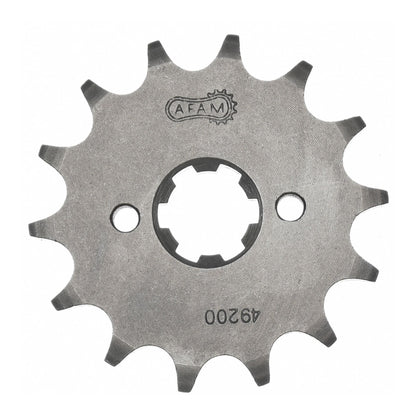

• Sprocket: AFAM sprocket #428 14 teeth - a49200.14
• Chain: AFAM chain 428 R1-G reinforced 138 with clip link - a428r1.g.138

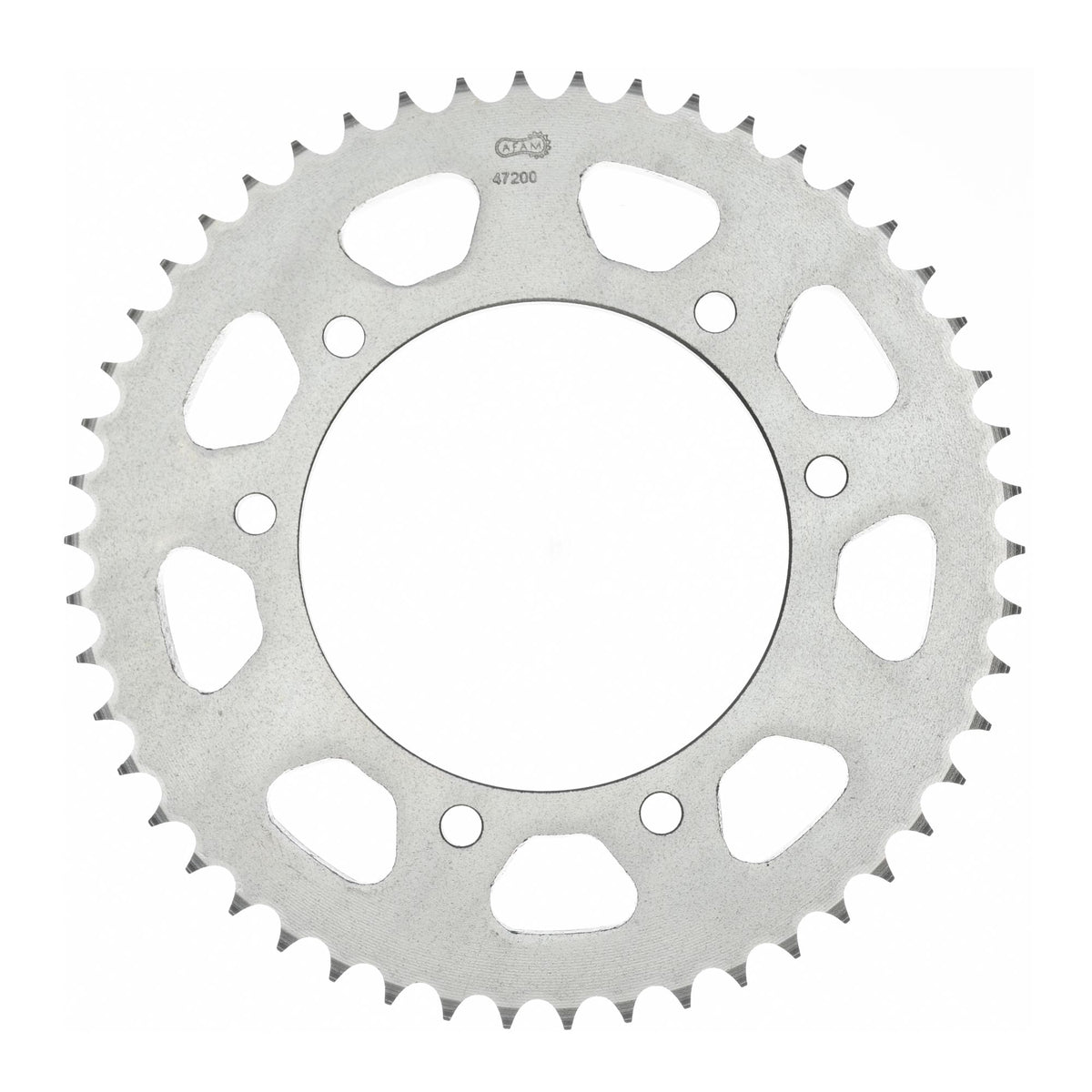

• Rear sprocket: AFAM rear sprocket STEEL #428 51 teeth - a47200.51
• Gear ratio sprocket-chain-rear sprocket: 14-138-51

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical specifications:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless stated otherwise: The offered goods are an accessory/spare part from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-31344

Suitable for

Derbi 101 - 125 cc Senda 125 R DRD 4T (Piaggio engine) 2010
Derbi 101 - 125 cc Senda 125 R DRD 4T (Piaggio engine) 2011
Derbi 101 - 125 cc Senda 125 R DRD 4T (Piaggio engine) 2012
Derbi 101 - 125 cc Senda 125 R DRD 4T (Piaggio engine) 2013
