AFAM chain kit for Derbi Senda 125 R Trail 4T 04-05 428 R1G chain kit

AFAM chain kit for Derbi Senda 125 R Trail 4T 04-05 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: No original part - Manufacturer names are mentioned only to demonstrate compatibility!

Components of the chain kit Derbi Senda 125 R Trail 4T 2004-2005

• Front sprocket: AFAM sprocket #428 f. CBR125R 17 teeth - a20209.17
• Chain: AFAM chain 428 R1-G reinforced 142 with clip-type connecting link - a428r1.g.142

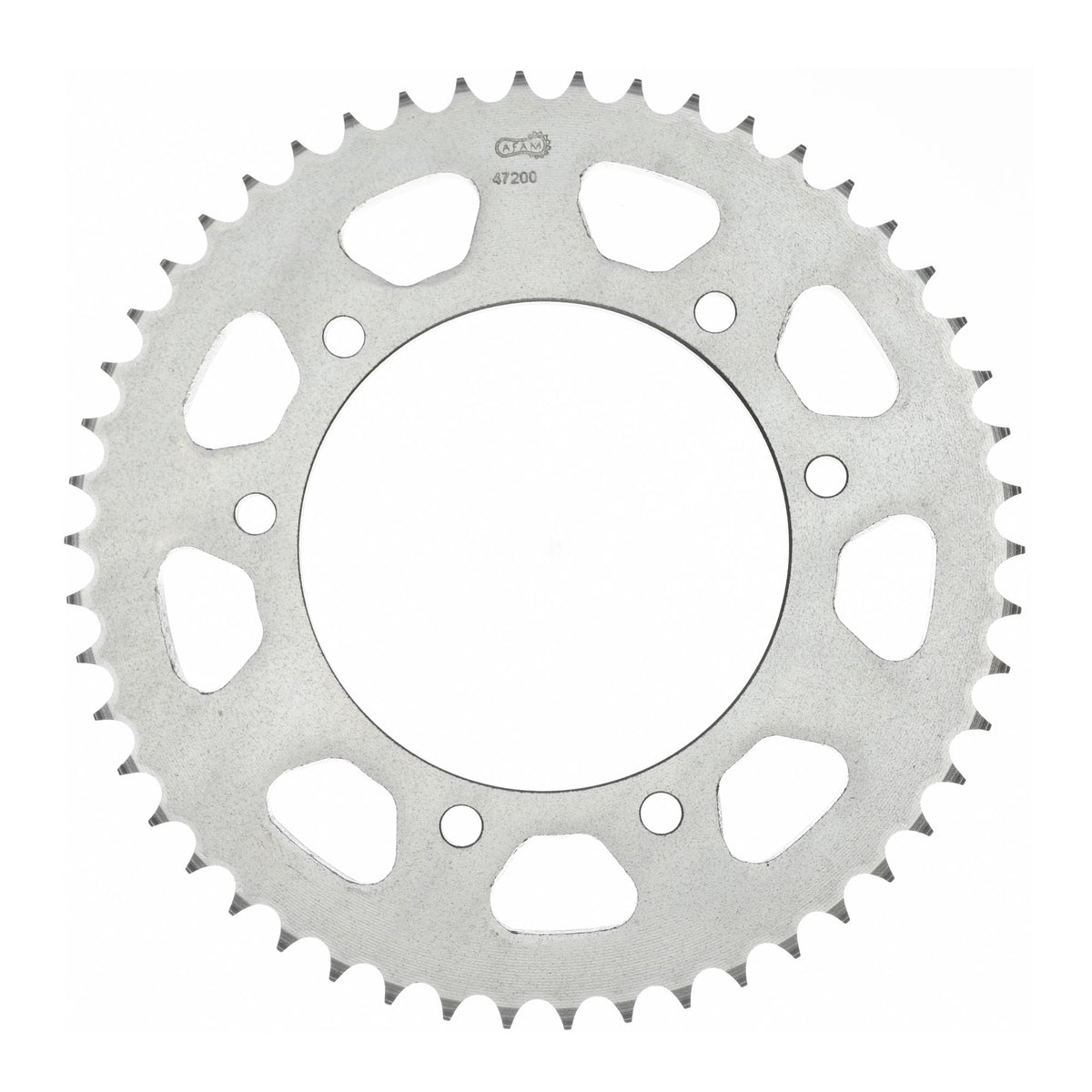

• Rear sprocket: AFAM rear sprocket STEEL #428 54 teeth - a47200.54
• Gear ratio sprocket-chain-rear sprocket: 17-142-54

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the permission of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15583

Suitable for

Derbi 101 - 125 cc Senda 125 R Trail 4T 2004
Derbi 101 - 125 cc Senda 125 R Trail 4T 2005
