AFAM chain kit for Derbi Senda 50 R X-Treme 04-05 420 R1G chain kit

AFAM chain kit for Derbi Senda 50 R X-Treme 04-05 420 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Derbi Senda 50 R X-Treme 2004-2005

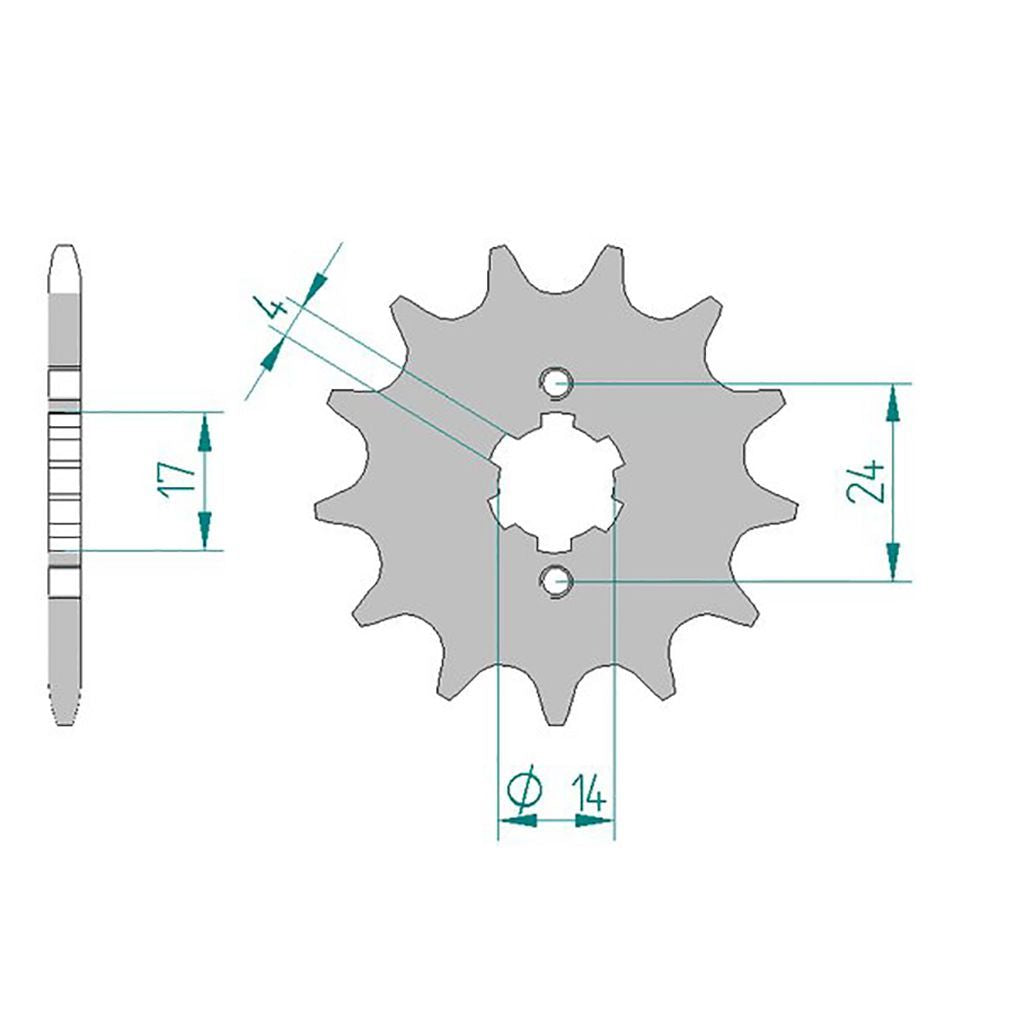

• Front sprocket: AFAM front sprocket #420 13 teeth - a49102.13
• Chain: AFAM chain 420 R1-G reinforced 130 with clip link - a420r1.g.130

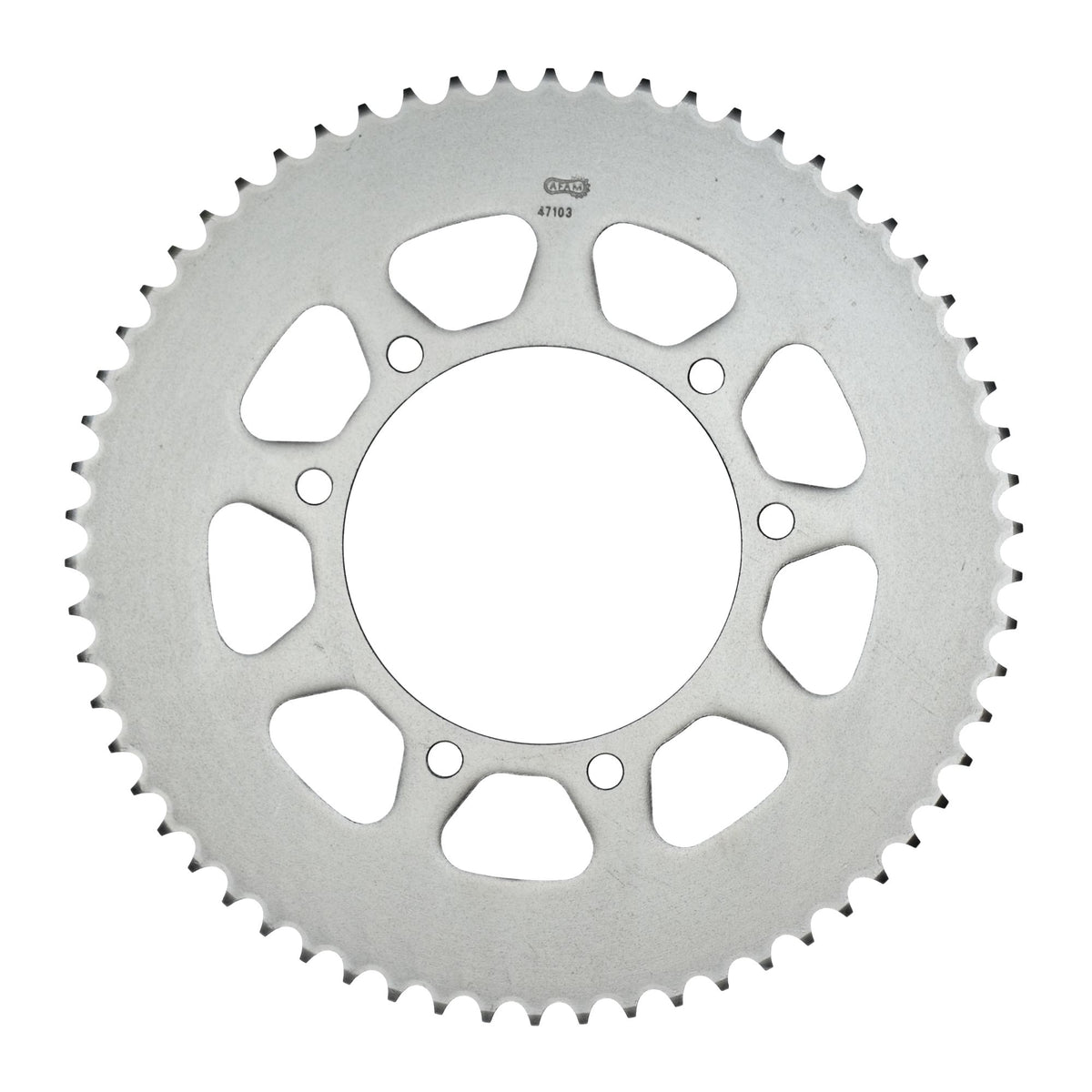

• Rear sprocket: AFAM rear sprocket STEEL #420 53 teeth - a47103.53
• Gear ratio front sprocket-chain-rear sprocket: 13-130-53

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical specifications:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-10313

Fits

Derbi 0 - 100 ccm Senda 50 R X-Treme 2004
Derbi 0 - 100 ccm Senda 50 R X-Treme 2005
